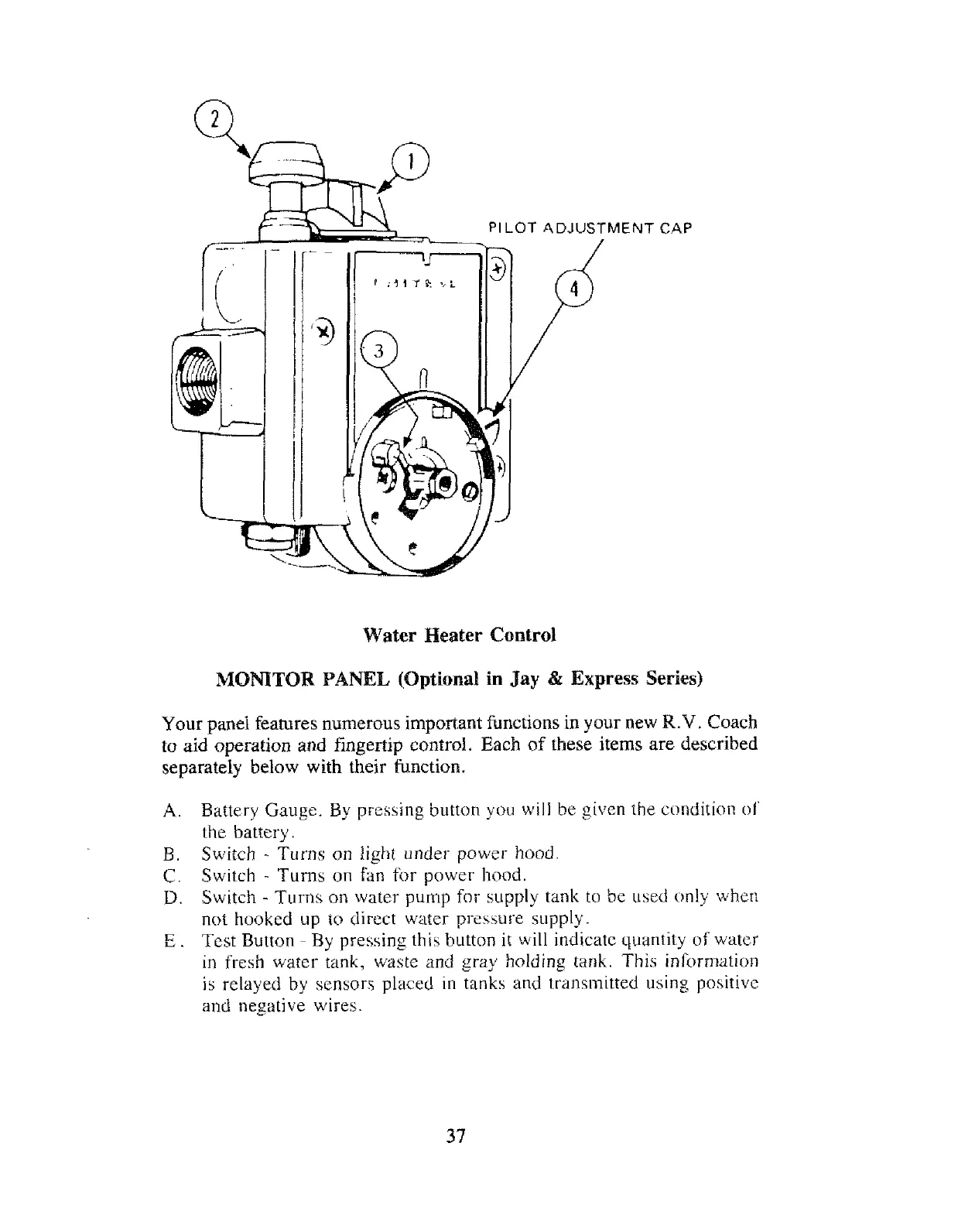

Water Heater Control
MOMTOR PANEL (Optional in Jay 8r Express Series)
Your panel features numerous important functions in your new R.V. Coach
to aid operation and fingertip control. Each of these items are described
separately
below with their function.
A.
Battery Gauge. By p~essing button you will be given the ccmiition of'
the battery.
B.
Switch - Turns on light under power hood.
C.
Switch - Turns on fan for power l~nod.
D.
Switch - Turns on water pump for supply tank to he used only when
not hooked up to dircct water pl-rssure supply.
E. Test Button - By pressing this button it will indicate quantity of waler
in fresh water tank, waste and gray holding tank. This information
is relayed by sensors placed in tanks and tranmitted using positive
and negative
wires.
