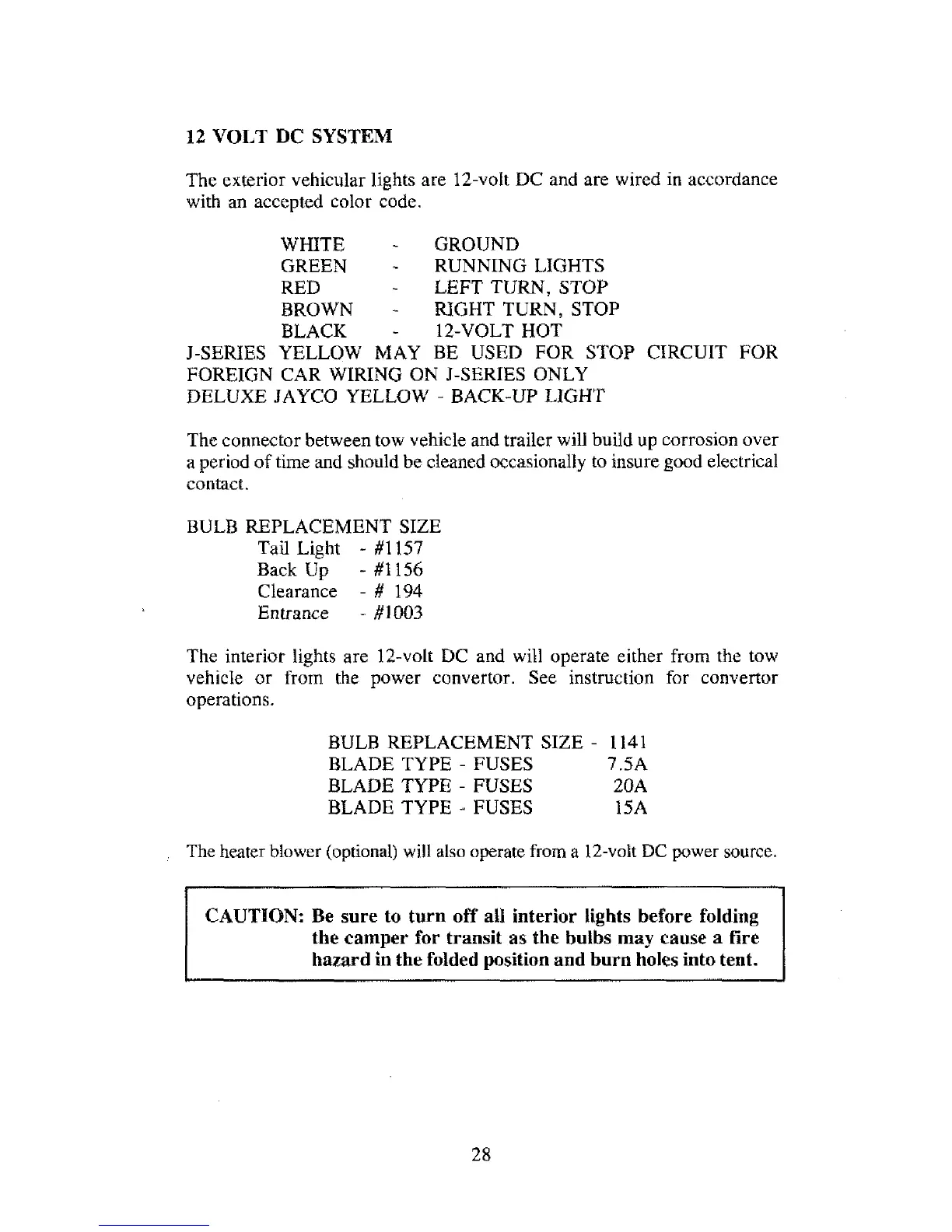

Jayco J-1006 - 12 VOLT DC SYSTEM

112 VOLT DC SYSTEM
The exterior vehicular lights are 12-volt DC and are wired in accordance
with
an accepted color code.
WHITE - GROUND
GREEN - RUNNING LIGHTS
RED - LEFT TURN, STOP
BROWN - NGWT TURN, STOP
BLACK - 12-VOLT HOT
J-SERIES YELLOW MAY BE USED FOR STOP CIRCUIT FOR
FOREIGN
CAR WIRING ON I-SERIES ONLY
DELUXE JAYCO YELLOW - BACK-UP LIGHT
The connector between tow vehicle and trailer will build up corrosion over
a period of time and should be cleaned occasionally to insure good electrical
contact.
BULB REPLACEMENT SIZE
Tail Light - #I157
Back Up - #I156
Clearance - # 194
Entrance - #I003
The interior lights are 12-volt DC and will operate either from the tow
vehicle or from
the power convertor. See instruction for convertor
operations.
BULB REPLACEMENT SIZE - 1 141
BLADE TYPE - FUSES 7.5A
BLADE TYPE - FUSES 20A
BLADE TYPE - FUSES 15A
The heater blower (optional) will also operate from a 12-volt DC power source.
CAUTION: Be sure to turn off all interior lights before folding
the camper for transit as the bulbs may cause a fire
hazard in the folded position and burn holes into tent.
