JAYCO TOWABLE SECTION 6 – ELECTRICAL SYSTEM
6-9
APPROXIMATE ELECTRICAL LOAD RATINGS
12 Volt System
Aisle Lights
1.0 AMP
Baggage Compartment Lights
1.4 AMPS
Decorative Wall Lights
1.5 AMPS
Dinette Light
4.5 AMPS
Exterior Entertainment Center
5-7 AMPS
Fantastic Fan
1.5 AMPS
Fluorescent Double Lights -12”
2.0 AMPS
Fluorescent Double Lights -18”
2.5 AMPS
Furnace
12.0 AMPS
Generator Start
95.0 AMPS*
Halogen Light
1.7 AMPS
Illuminated Switch
.125 AMP
Inverter
variable
Leveling System
95.0 AMPS*
LP Detector
.125 AMP
Map Light
1.5 AMPS
Porch Light
1.5 AMPS
Power Awning
10.0 AMPS
Power Vent
5.0 AMPS
Refrigerator
3.0 AMPS
Shower Light
1.4 AMPS
Step Cover
10.0 AMPS
TV Plate/Antenna Booster
1.0 AMP
Vanity Light
4.2 AMPS
Water Heater
6.0 AMPS
Water Pump
7.0 AMPS
*Momentary Load
12 Volts: Labeled watts divided by 12 = Power consumed in AMPS

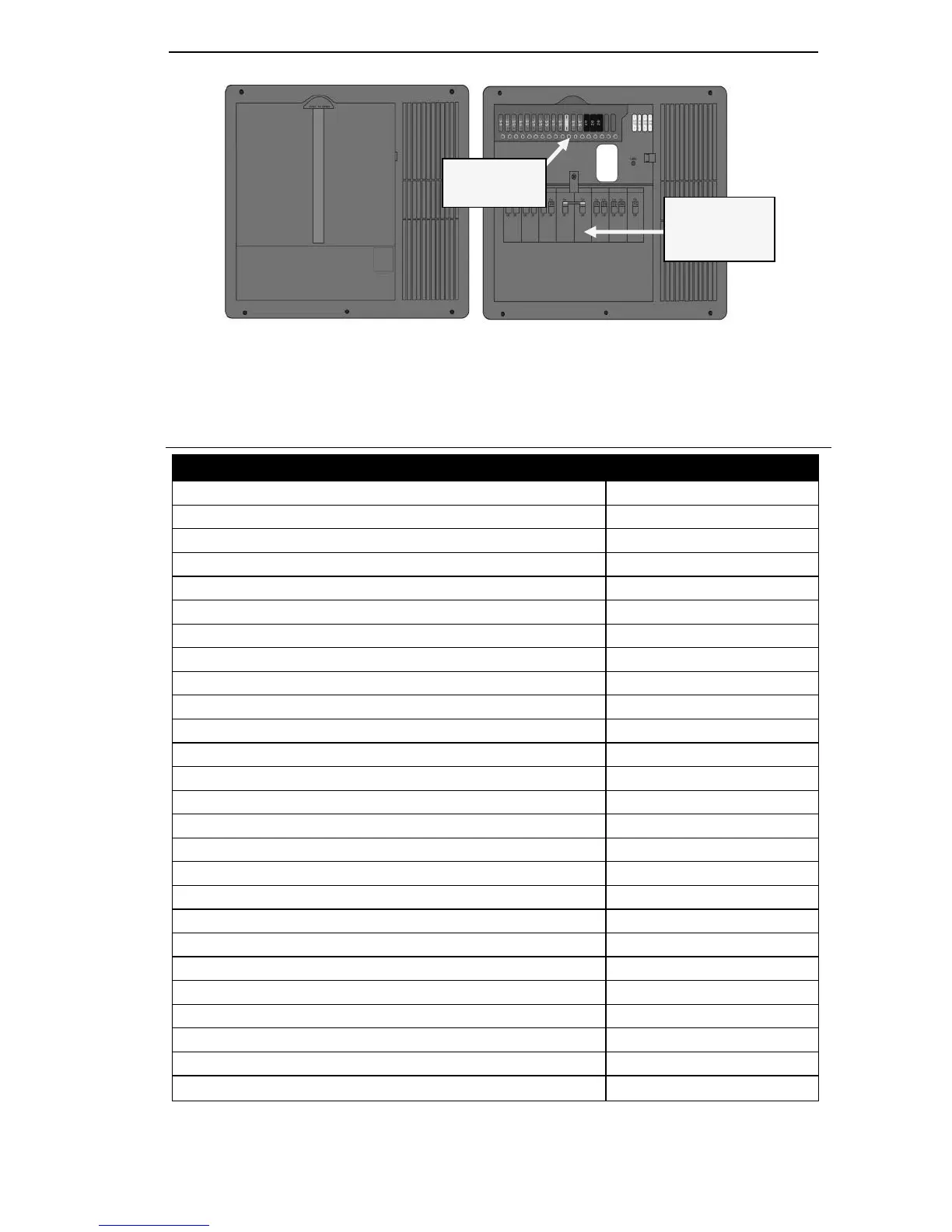

Typical Load
Center Exterior
Panel
Load Center Panel w/120 volt Main
breaker – load center appearance
and configuration may vary by
model
12V
fuses
120V Main
Breaker
