3. Use an adjustable wrench on the square end of the drive shaft and turn the shaft until
the slideout is in the position you desire. When the slideout is fully extended (or
retracted), put pressure on the crank handle to ensure a tight seal then return the
brake release lever to its normal downward position. This will ensure that the
slideout is locked into a sealed position.
4. For Eagle models, install the travel bars and take the unit to a Jayco dealer for
service.

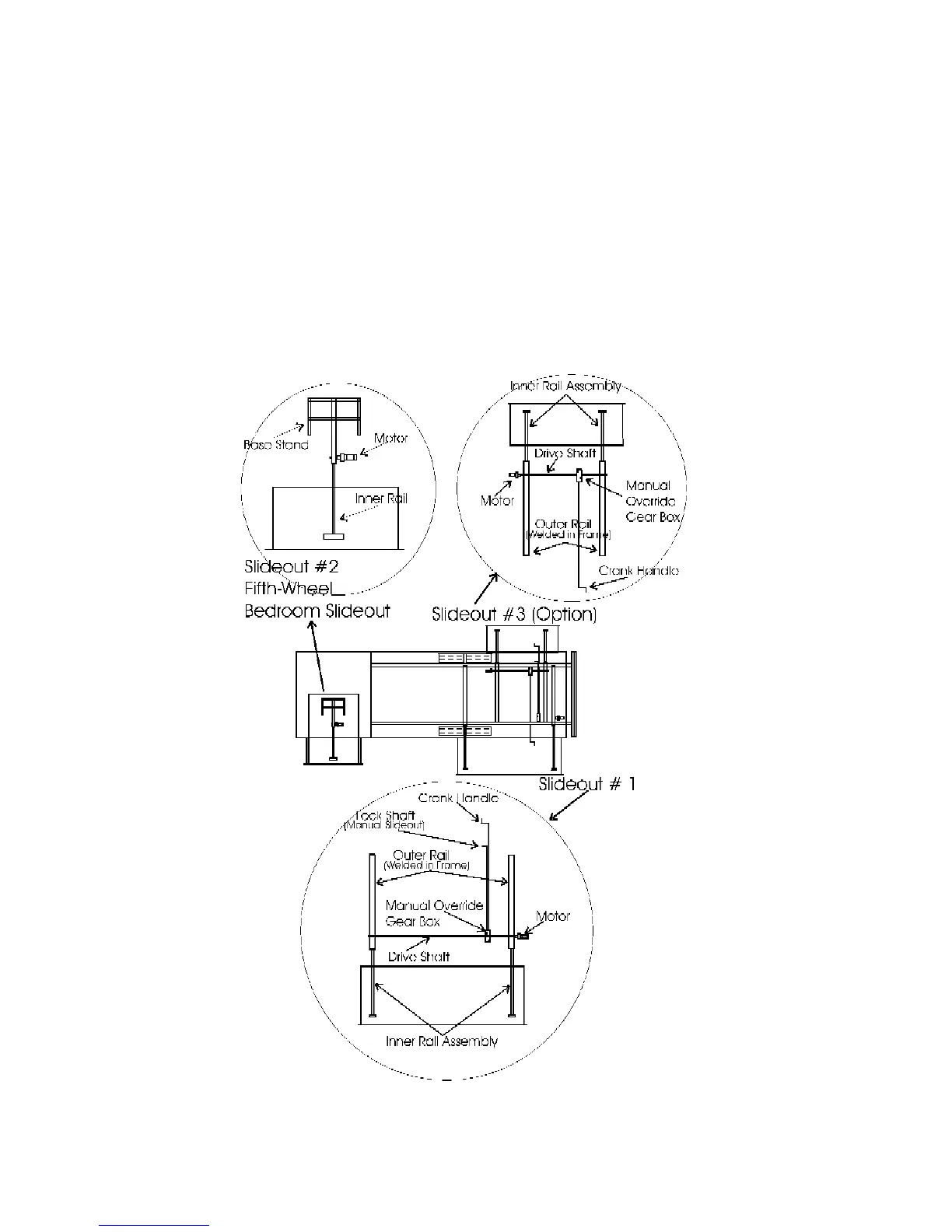

Slideout Diagram
This diagram provides an overview of the slideout systems. Your travel trailer may
contain some or all of the options listed. Slideout #3 is also the layout for a conventional
travel trailer bedroom slideout, but will be located where the fifth-wheel bedroom
slideout drawing is shown.
