page 3www.jayline.co.nz
APRIL 2018

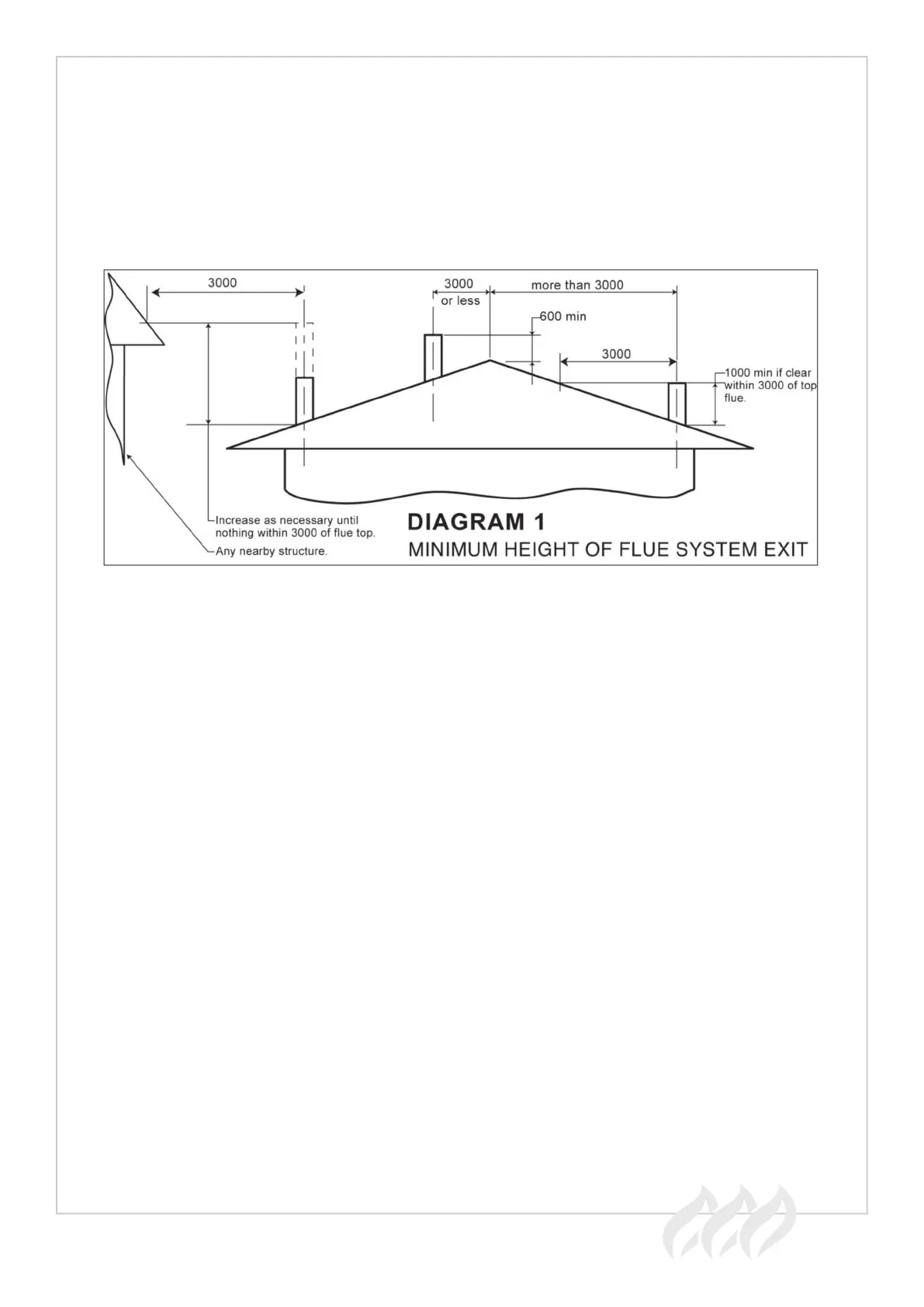

• Flue exiting more than 3 metres from the ridgeline must terminate no less than 1 metre above the
roof penetration (see diagram 1 below).
• Where the top of the ue pipe is more than 2 metres above its highest xing point, it must be stayed
against high winds.
9. Drill and x ue system into ue spigot with stainless steel self-tapping screws.
10. Drill and secure the appliance to the oor protector using the two holes in the rear legs of the
appliance.
11. Our res have been tested in a standard 4.2m ue installation. If your installation requires additional
ue lengths (i.e. 2 storey homes) its important to note that each additional length will create more
draw. Therefore for best performance, extended burn time and to preserve the components in your
re, we recommend moving the air slide to low (once the re is established)
12. Extending the ue can improve re draw in some cases. If planning to use more than 2 additional
lengths of ue, please contact the manufacturer for best performance and technical assistance.
FITTING SEISMIC RESTRAINT
The Floor Protector must be mechanically xed to the oor by bolting or screwing. Note: Floor Protector
to be xed by gluing when on a concrete oor that may have water pipes or electrical wires present. The
appliance can then be bolted to the oor protector with two 6mm x 50mm dynabolts.
BAFFLE
Before lighting your appliance for the rst time, make sure the bae is in the correct position being as
far to the rear as possible, and ensure all packing material has been removed.
