REPAIR PARTS
Current chrome cover will fit older black
Eliminator models.
Black hammertone cover
no longer available
18
3
2
1
3
2
1
13
12
20
17
21
11
8
14
15
16
18
19
10
9
7
5
6
4

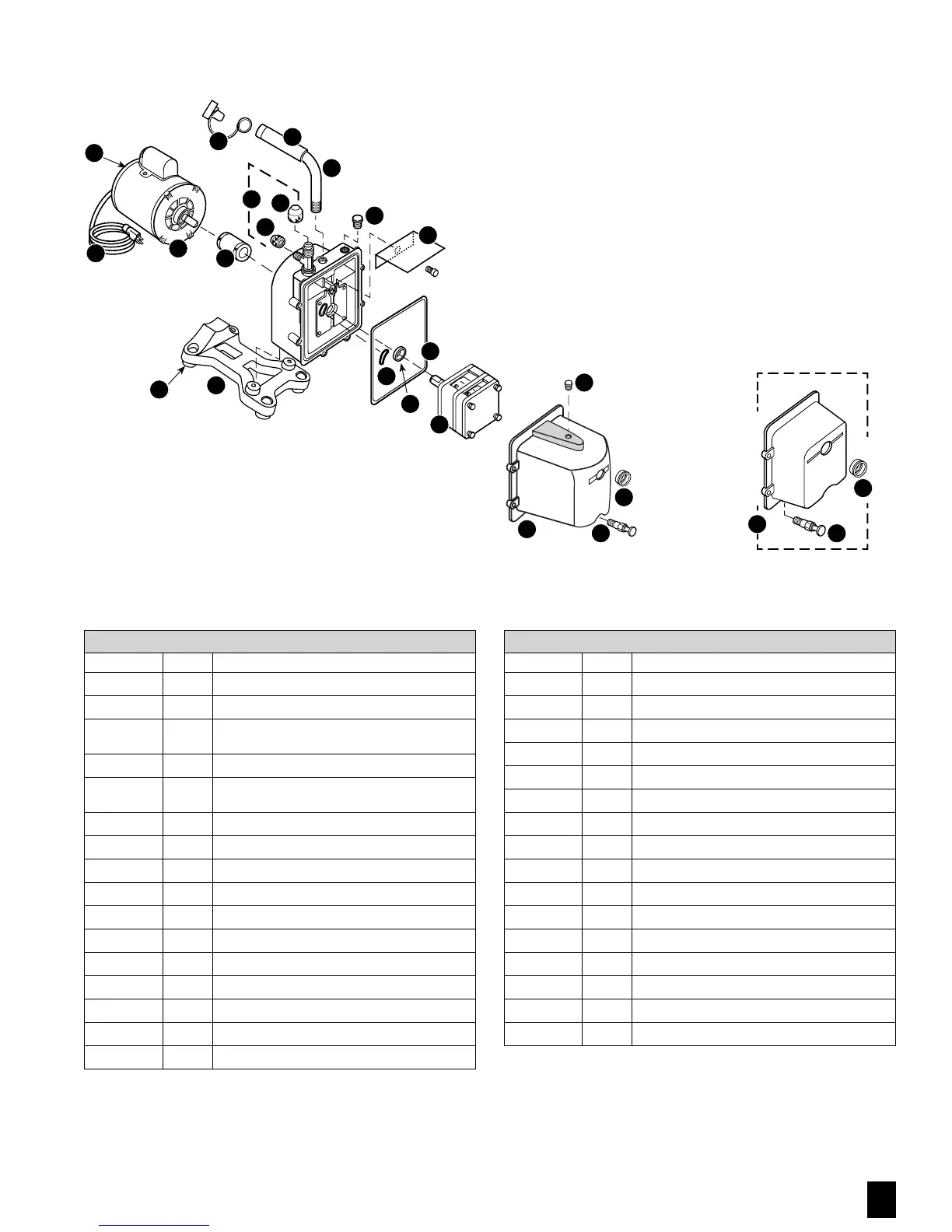

ELIMINATOR SERIES DV-3E, DV-4E AND DV-6E REPAIR PARTS
Ref. No. Part No. Description
11
PR-207
1/2 HP, 115/230v, 50/60 Hz motor w/line cord and switch
11
PR-206
1/2 HP motor w/line cord and switch
12
PR-31
Line cord (Emerson
®
motor)
12
PR-58
Line cord (Marathon
®
motor)
13
PR-54
Motor switch, rocker
14
PR-63
Intake tee w/cap
15
NFT5-4
1/4" O-ring cap
16
NFT5-6
3/8" O-ring cap
17 Black
PR-500
3/8" Rubber grip and cap
17 Silver
PR-501
1/2" Rubber grip and cap
18
PR-22
Oil fill plug w/o-ring
19
PR-40
DV-4E and DV6E splash guard w/screw
20 Black
DV-EP6
Tethered safety plug 3/8"
20 Silver
DV-EP8
Tethered safety plug 1/2"
21 Black
PR-205
Cushioned handle 3/8" NPT
21 Silver
PR-65
Cushioned handle 1/2" NPT
ELIMINATOR SERIES DV-3E, DV-4E AND DV-6E REPAIR PARTS
Ref. No. Part No. Description
1
PR-1
Sight glass
2
PR-2
Drain valve
3
PR-10
DV-3E, DV-4E and DV-6E cover assembly w/sight glass, drain
valve and oil fill plug
4
PR-403
DV-3E Cartridge complete w/o-rings and cover seal
4
PR-404
DV-4E Cartridge complete w/o-rings and cover seal
4
PR-406
DV-6E Cartridge complete w/o-rings and cover seal
5
PR-217
Cover seal
6
PR-3
Shaft seal
7
PR-315
Trap intake o-ring
8
PR-208
Flexible coupler
8
PR-308
Middle section; used w/PR-208 flexible coupler
8
PR-6
Flexible coupler
8
PR-77
Middle section; used w/PR-6 flexible coupler
9
PR-62
Pump base (includes rubber feet)
10
PR-59
Rubber foot
Not Shown
PR-18
Cartridge valve repair kit
Emerson
®
is a registered trademark of US Motors. Marathon
®
is a registered trademark of Marathon Electric.
