-4-

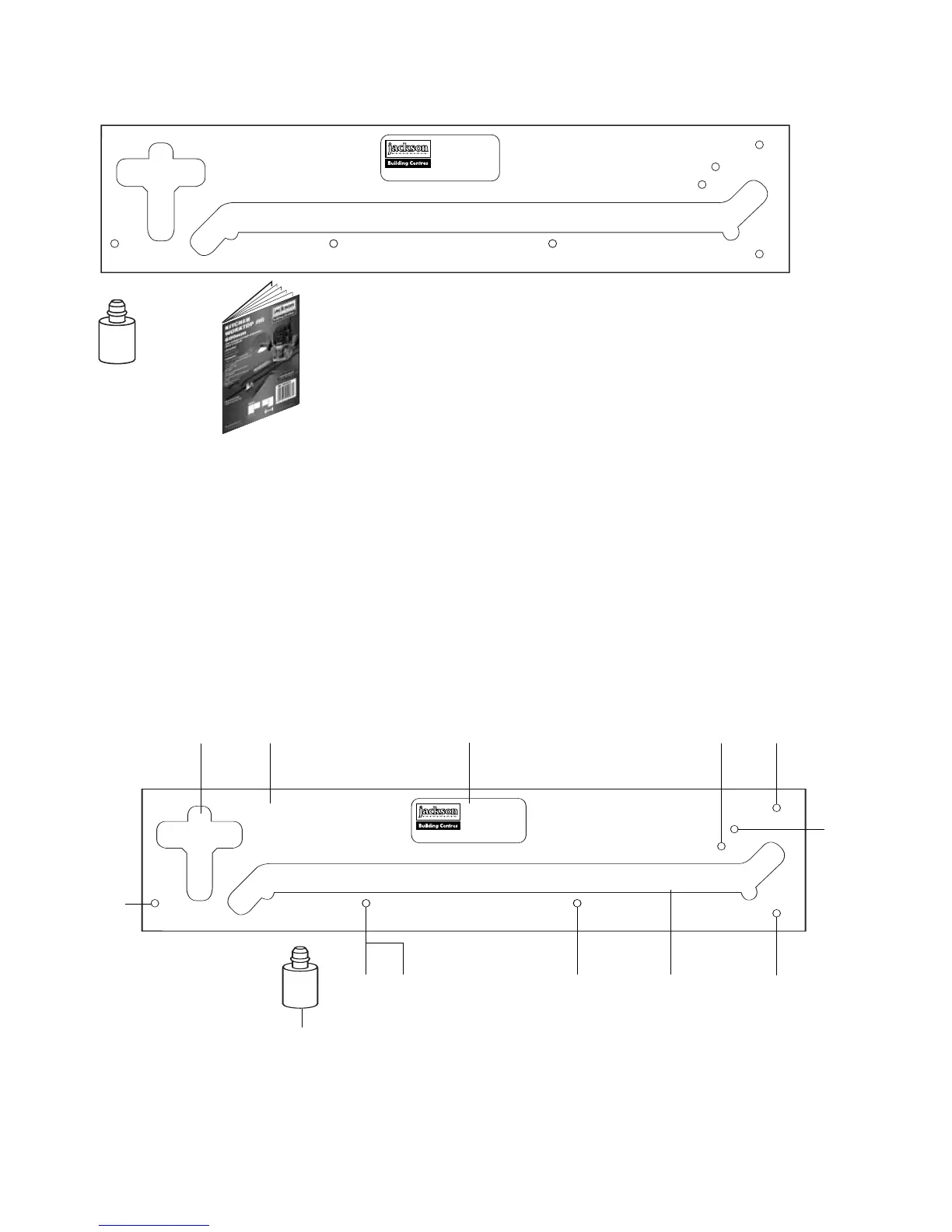

ITEMS ENCLOSED
DESCRIPTION OF PARTS
x1
x1
x3
ai
j
b
e g
g
f
c
ddh
h
&
Jig body
Label
Postform joint slot
Female joint bush location hole
Length setting stop location hole 600mm
a
b
c
d
e
Length setting stop location hole 616mm
Male joint bush location hole
Bolt recess bush location hole
Connecting bolt recess slot
Alloy location bush
f
g
h
i
j
ITEMS REQUIRED
■ 1/2” plunge router.
■ 30mm guide bush.
■ 12.7mm diameter x 50mm cut
router cutter with 1/2” shank.
■ 2 x trestles.
■ 2 x clamps.
■ Hand tools.
■ Panel connector bolts.
■ Wooden biscuits Size No.20.
■ Sealant.
