We appreciate the confidence you have shown in JBC by purchasing this station.
It has been manufactured with the highest standards of quality to ensure reliable
service. Before starting up the apparatus, we suggest you to read through the
following instructions carefully.
ENGLISH
FEATURES
Stations composition
MB 3260 230V Ref. 3260200
- Control Unit Ref. 3635200
- 5W soldering iron
with tip R-0 D Ref. 3030000
- Soldering iron stand MS 1300 Ref. 0290130
- Instructions manual Ref. 0425450
LB 3200 230V Ref. 3200200
- Control Unit Ref. 3230200
- 20W soldering iron
with tip B-05 D Ref. 3000000
- Soldering iron stand LS 1100 Ref. 0290110
- Instructions manual Ref. 0425450
IB 3210 230V Ref. 3210200
- Control Unit Ref. 3230200
- 50W soldering iron
with tip R-10 D Ref. 3010000
- Soldering iron stand US 1000 Ref. 0290100
- Instructions manual Ref. 0425450
TB 3220 230V Ref. 3220200
- Control Unit Ref. 3230200
- 60W soldering iron with tip C-20 D
and solder feed system Ref. 3020000
- Soldering iron stand TS 1200 Ref. 0290120
- Instructions manual Ref. 0425450
SB 3240 230V Ref. 3240200
- Control Unit Ref. 3830200
- 70W soldering iron
with tip T-55 D Ref. 3070000
- Soldering iron stand US 1000 Ref. 0290100
- Instructions manual Ref. 0425450
The 20, 50, 60 and 70W soldering irons may be
connected to Control Unit number 3230200,
though it is recommended to use the 70W
soldering iron with control unit 3830200, which is
specially suited to the power needs of that
soldering iron. This latter control unit can also be
used with all the soldering irons except the 5W
one, which needs its own control unit - Ref.
3635200.

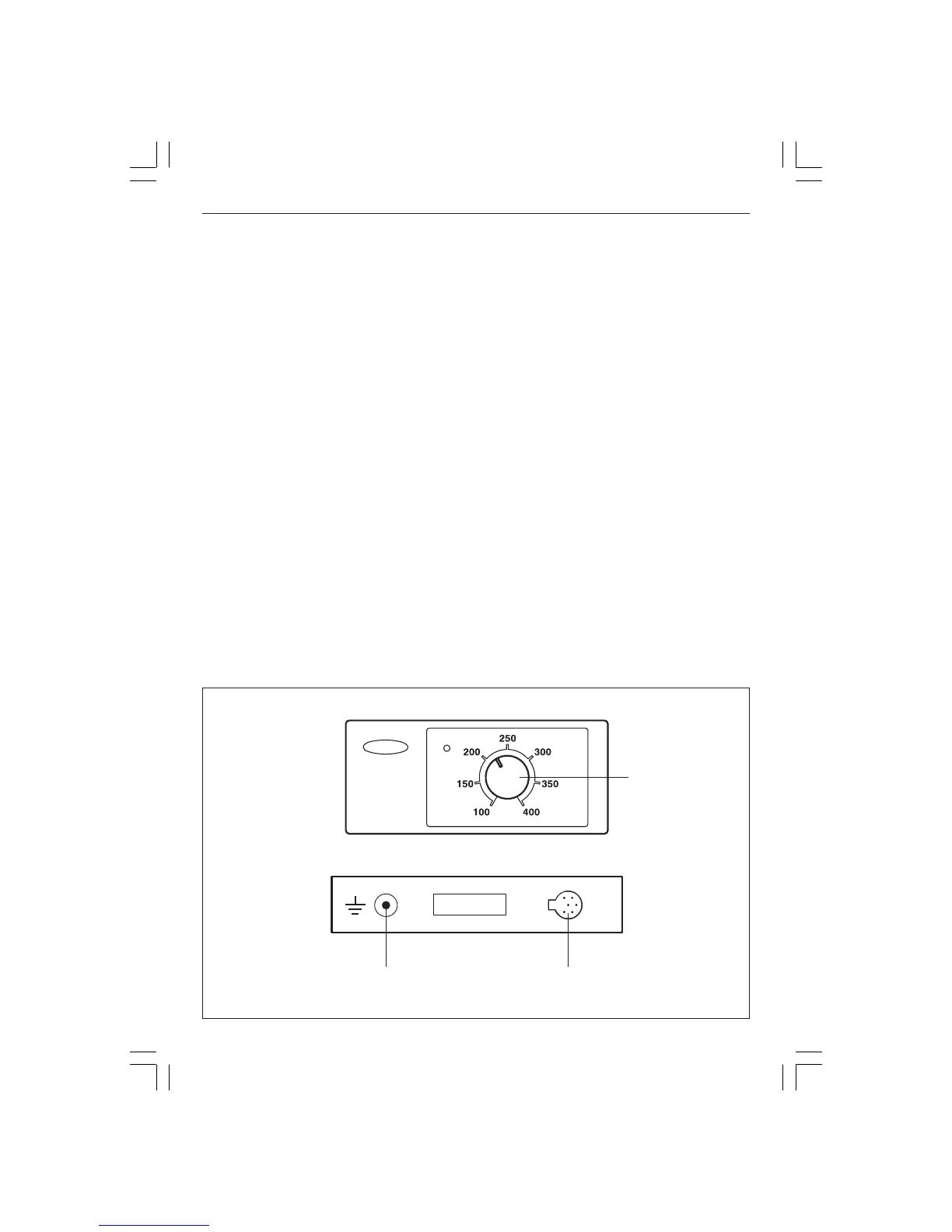

Temperature
selector
Equipotential
terminal
Soldering
connector
1
