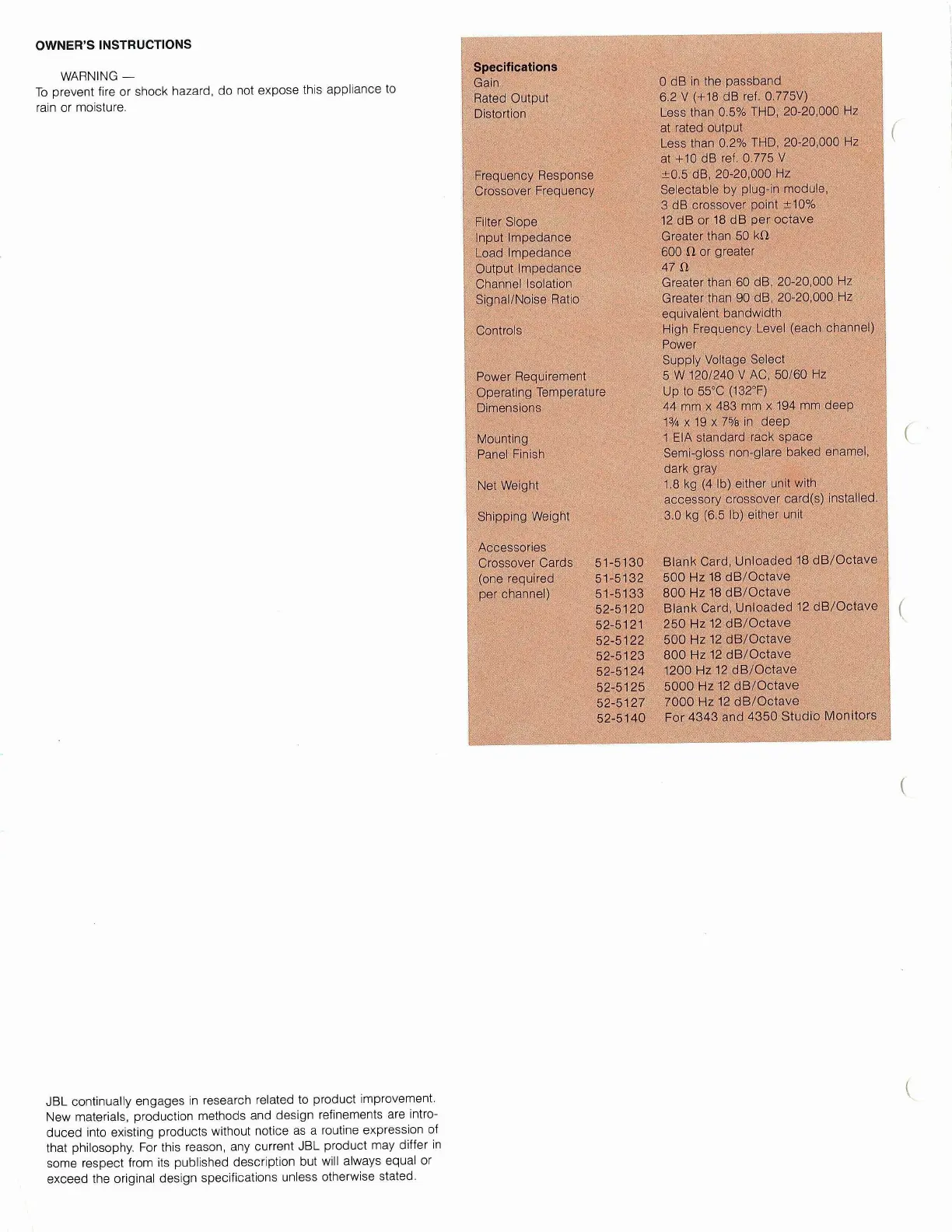

OWNER'S
INSTRUCTIONS
WARNING —
To prevent fire or shock hazard, do not expose this appliance to
rain or moisture.
JBL continually engages in research related to product improvement.
New materials, production methods and design refinements are intro-
duced into existing products without notice as a routine expression of
that philosophy. For this reason, any current JBL product may differ in
some respect from its published description but will always equal or
exceed the original design specifications unless otherwise stated.
Specifications
Gain 0 dB in the passband
Rated Output 6.2 V (+18 dB ref. 0.775V)
Distortion Less than 0.5% THD, 20-20,000 Hz
at rated output
Less than 0.2% THD, 20-20,000 Hz
at +10 dB ref. 0.775 V
Frequency Response ±0.5 dB, 20-20,000 Hz
Crossover Frequency Selectable by plug-in module,
3 dB crossover point ±10%
Filter Slope 12 dB or 18 dB per octave
Input Impedance -. Greater than 50 kfl
Load Impedance 600 O or greater
Output Impedance 47 fi
Channel Isolation Greater than 60 dB, 20-20,000 Hz
Signal/Noise Ratio Greater than 90 dB, 20-20,000 Hz
equivalent bandwidth
Controls High Frequency Level (each channel)
Supply Voltage Select
Power Requirement 5 W 120/240 V AC, 50/60 Hz
Operating Temperature Up to 55°C (132°F)
Dimensions 44 mm x 483 mm x 194 mm deep
1%
x 19 x 7% in deep
: Mounting 1 EIA standard rack space
Panel Finish Semi-gloss non-glare baked enamel,
dark gray
Net Weight 1.8 kg (4 lb) either unit with
accessory crossover card(s) installed.
Shipping Weight 3.0 kg (6.5 lb) either unit
: Accessories
Crossover Cards 51-5130 Blank Card, Unloaded 18 dB/Octave
I (one required 51-5132 500 Hz 18 dB/Octave
per channel) 51-5133 800 Hz 18 dB/Octave
52-5120 Blank Card, Unloaded 12 dB/Octave
52-5140 For 4343 and 4350 Studio Monitors
