WALL SURFACE MOUNTING
Note that the BRACKET ASSEMBLY consists of a SPEAKER BRACKET and a
WALL BRACKET.
1) RUN WIRING -- Run the wiring from the power amplifier to the location
desired for mounting the JBL CBT Loudspeakers.

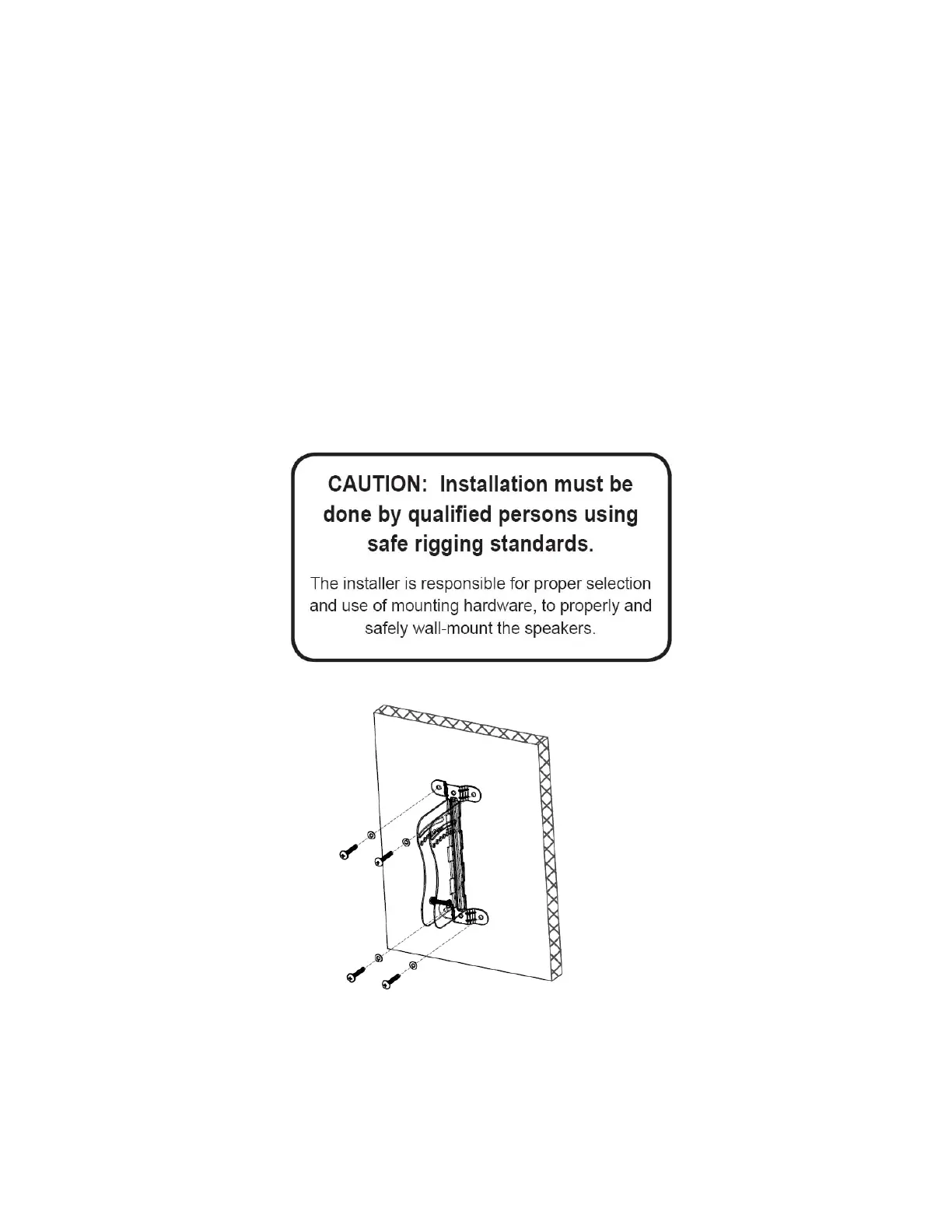

2) ATTACH WALL BRACKET TO WALL -- Using a level to ensure that the WALL
BRACKET is straight, secure the WALL BRACKET to the wall. Be sure to use
the appropriate wall anchors for attaching the bracket. Use all four screw
holes for maximum integrity and safety. Be sure that the slot feature is at
the top.
Hardware for attaching WALL BRACKET to wall is not included.
