JBL CBT Series - Vertical Array Speaker Bracket Mount

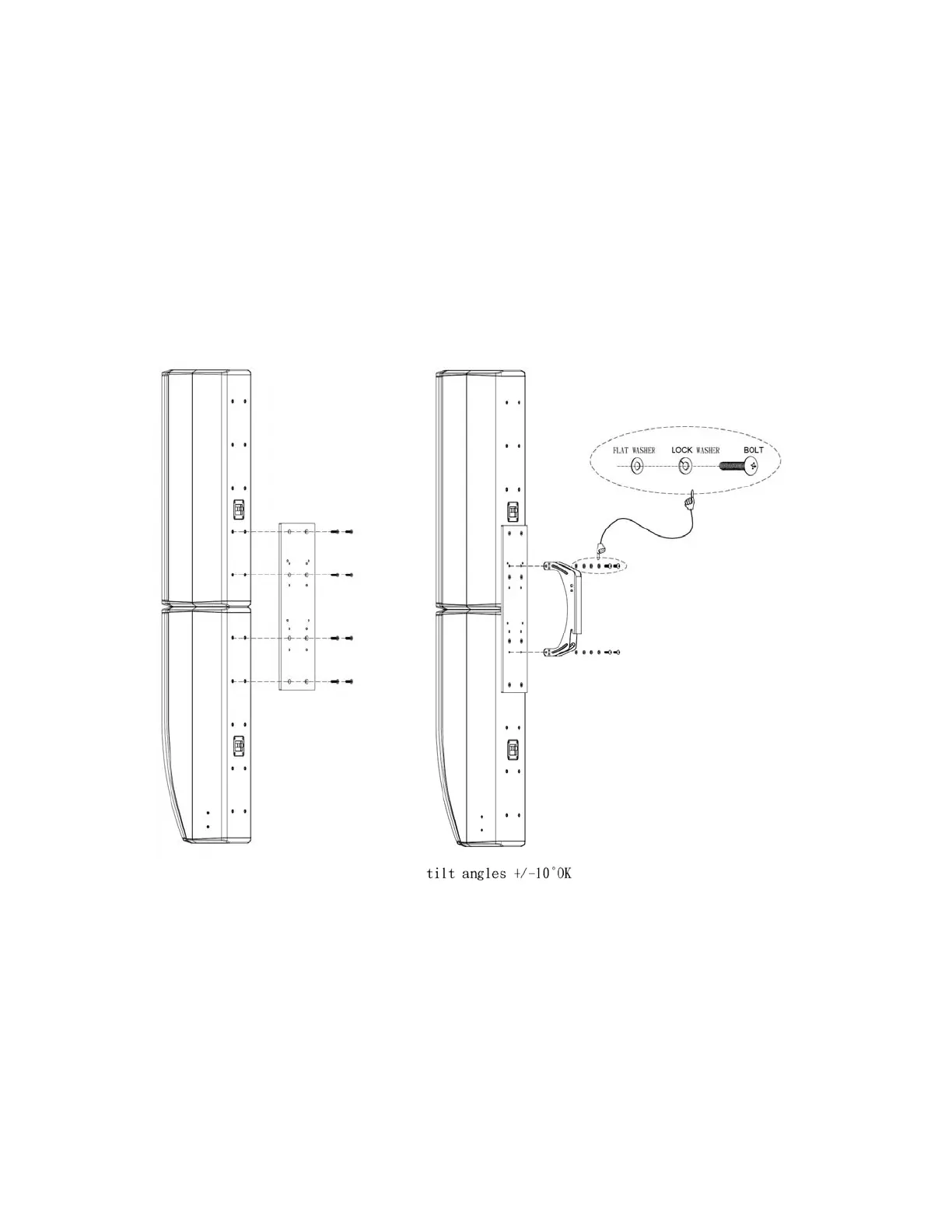

3b) CBT 70J and CBT 70JE Vertical Array -- Mount the COUPLER PLATE
(included with the CBT 70JE) to the speaker with the provided eight (8)
pieces of M6-20L flat-head bolts. Then attach the SPEAKER BRACKET to
the COUPLER PLATE with the provided M6-15L pan-head bolts, lock
washers and flat washers. Be sure the hook feature is downward.
4 pieces of
the provided
M6-15L pan-
head bolts
with lock
washers &
flat washers
8 pieces of
the provided
M6-20L flat-
head bolts
