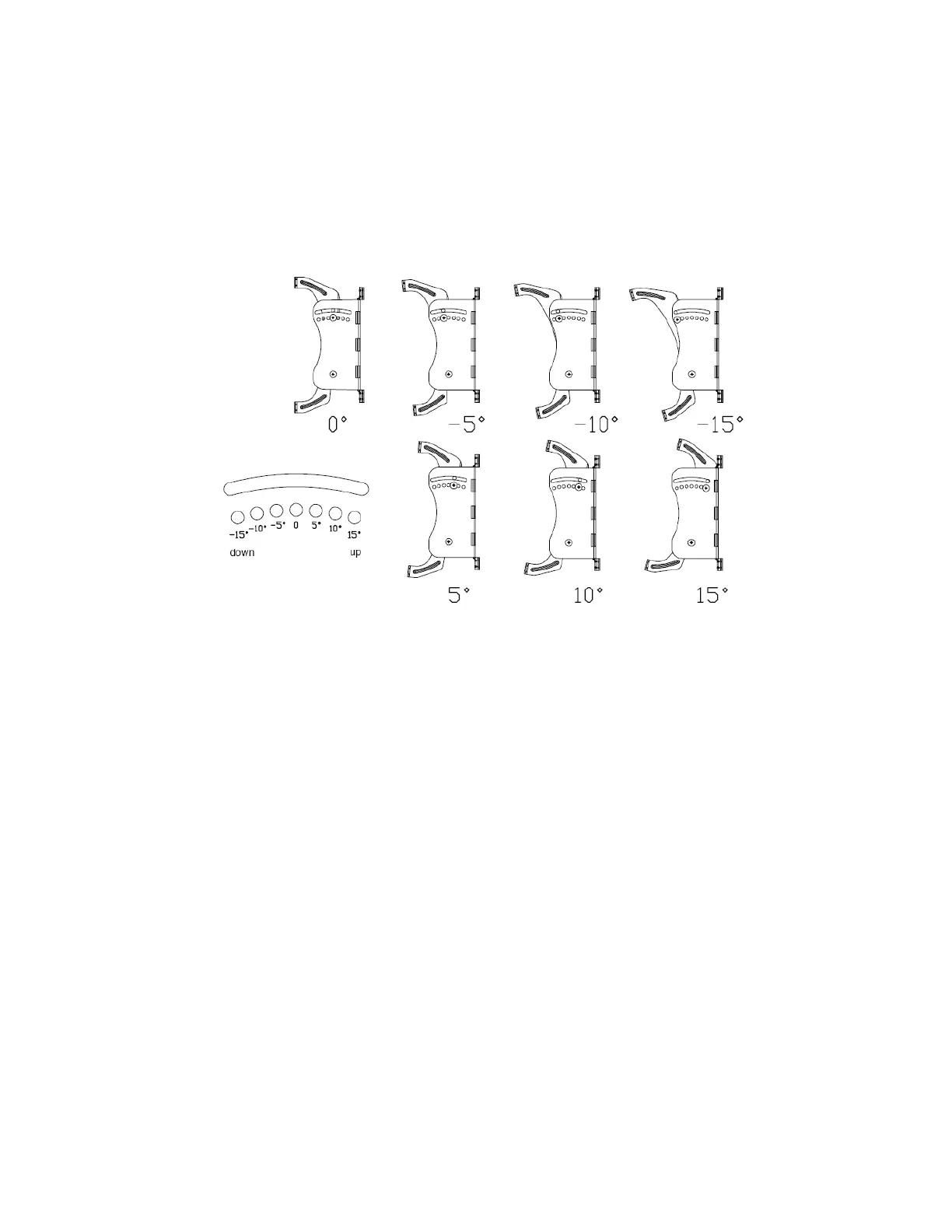

5b) PRE-
SET ANGLES and CONTINUOUSLY VARIABLE ANGLE -- The
bracket has through holes for mounting angles of +/- 15 degrees in 5 degree
increments. There is also a slot above the holes for continuously variable
adjustment. The pre-set angles are recommended for accurate aiming.
5C) SECURE THE ANGLE SETTING -- Once the angle has been chosen
tighten both bolts with hardware provided.
6) Attach a safety cable (not included) to any of the 6 mm inserts on the back
of the CBT 70J and/or 70JE cabinet using the included M6 mm bolt.
Prepare to attach the other end of the cable to a secondary attachment point
on the wall.
