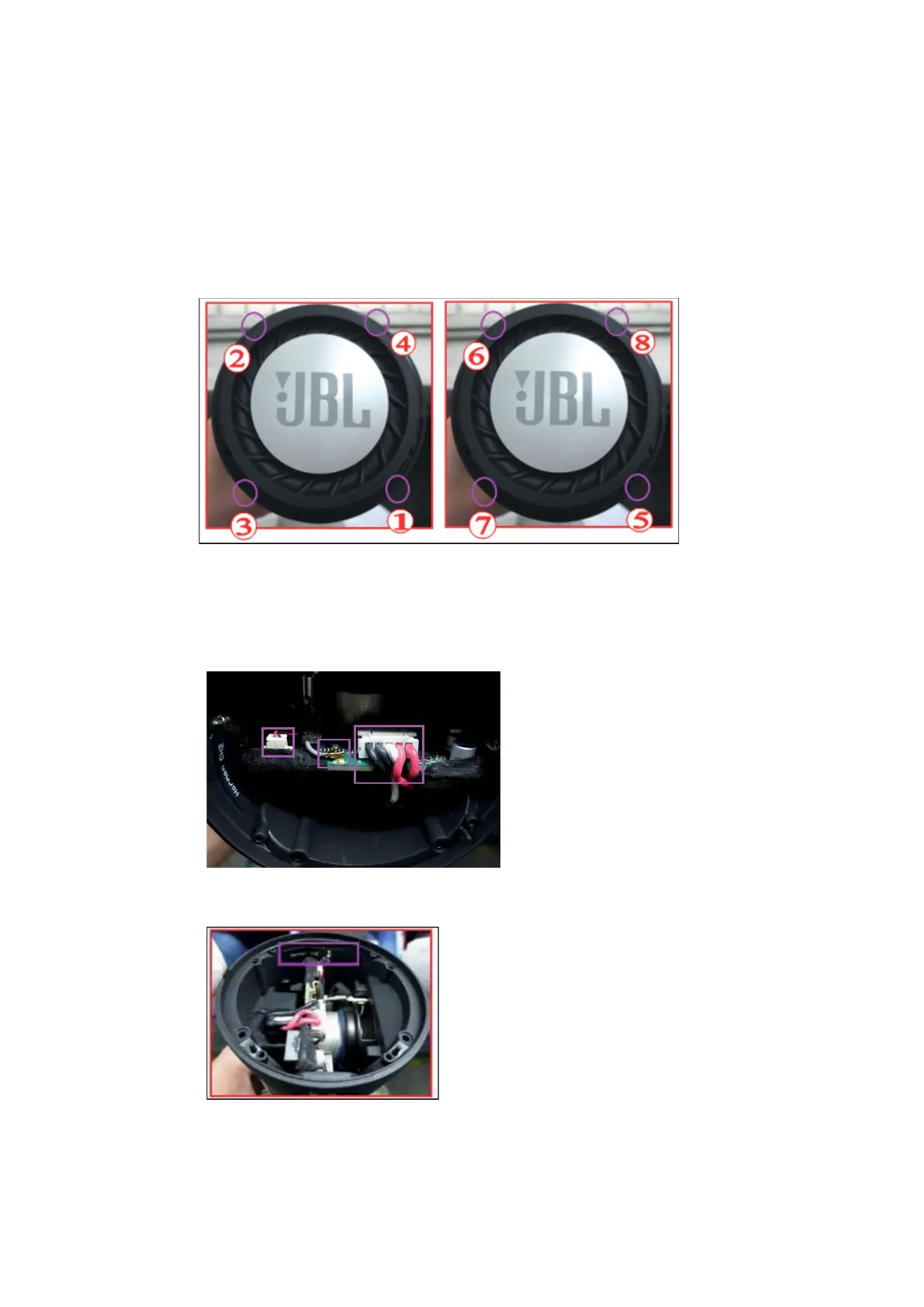

6. Disassemble passive radiator
˗
ķ Remove 8 screws of passive radiator by electric
screwdriver˗
7. Pull out battery cable
ˈ
remove antenna
˗
a) Pull out battery cable, MIC cable and antenna˗
b) Disassemble antenna˗
