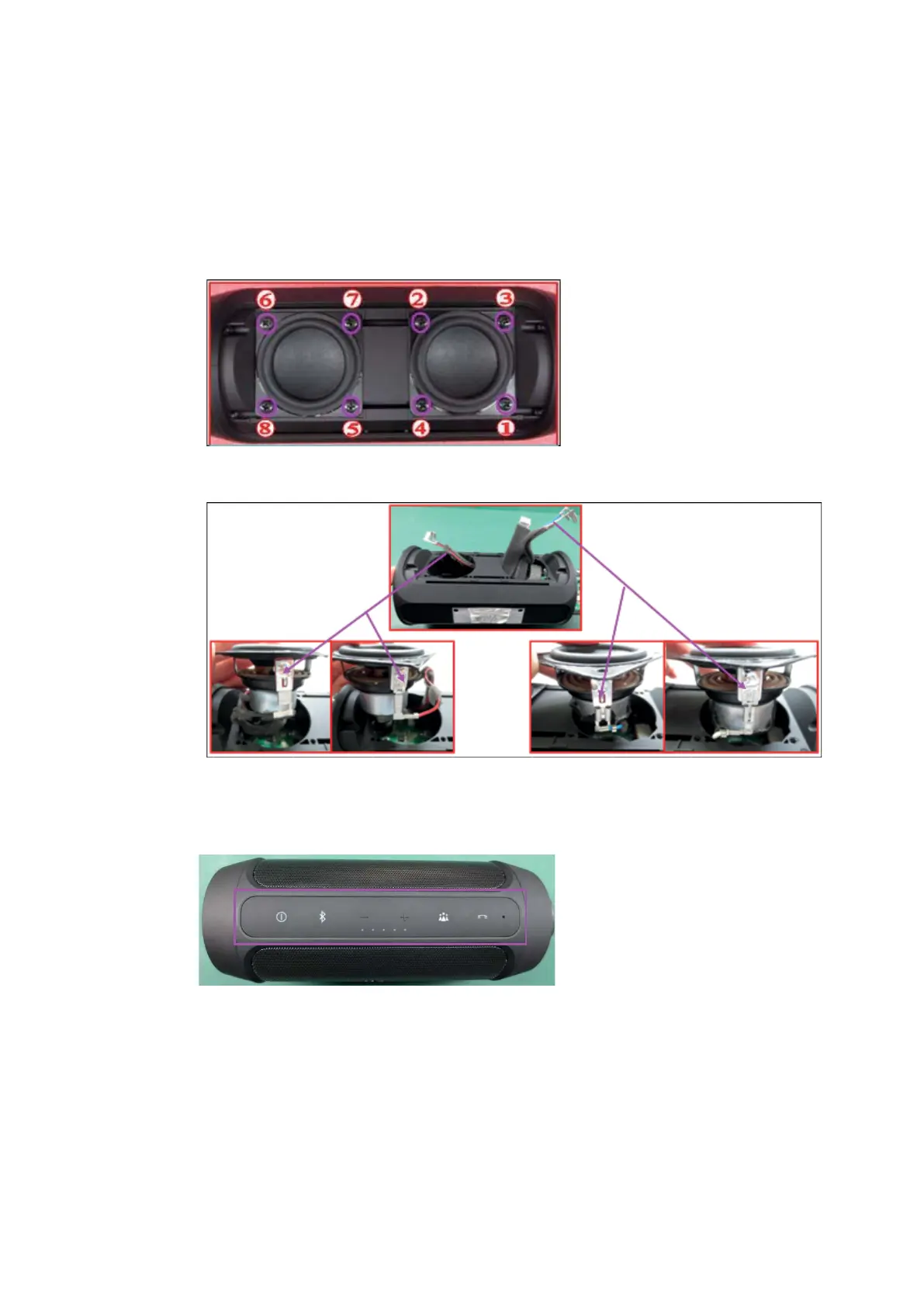

8. Disassemble speakers
˗
Remove 8 screws by electric screwdriver˗
Pull out speaker terminals by nipper pliers˗
9. Disassemble button PCBA˗
Tear open rubber˗˄Notice : the rubber cannot be reused˅
Remove 2 screws˗
