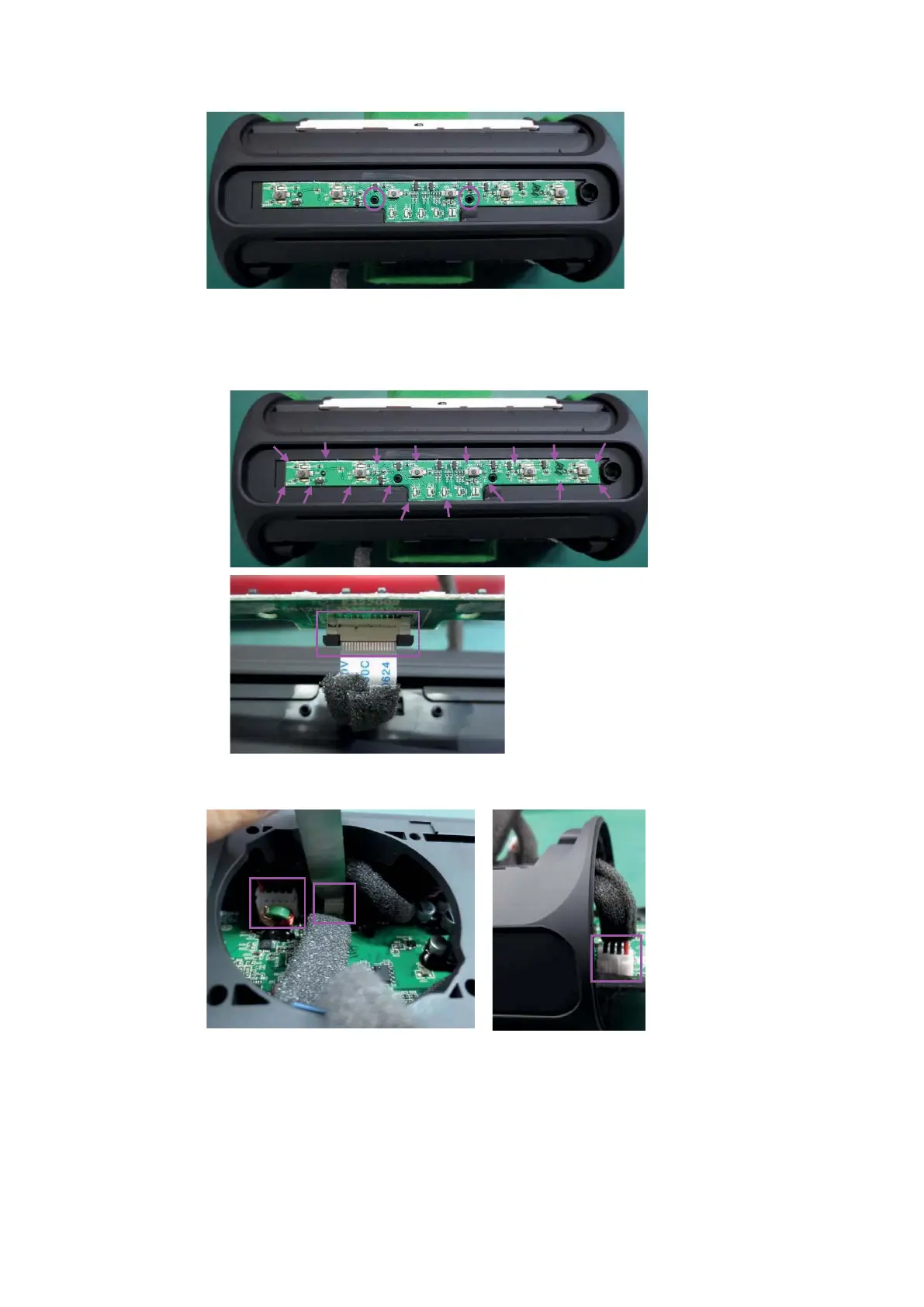

Pry up button-PCBA gently by tweezersˈpull out FFCˈthen take out button-PCBA˗
10. Remove cables˗ķPull out cables of USB PCBA, micro USB PCBA and AUX-in PCBA˗
11. Take out main PCBA
