8
OPTION B: WALL SURFACE MOUNTING VIA
INCLUDED L-BRACKETS
Note that the L-BRACKETS can be attached to either the top and bottom of the speaker (via threaded inserts located on the top
and bottom panels) or to the sides of the speaker (via threaded inserts located in the left and right panels of the speaker). The
following instructions and drawings are for using the side points.

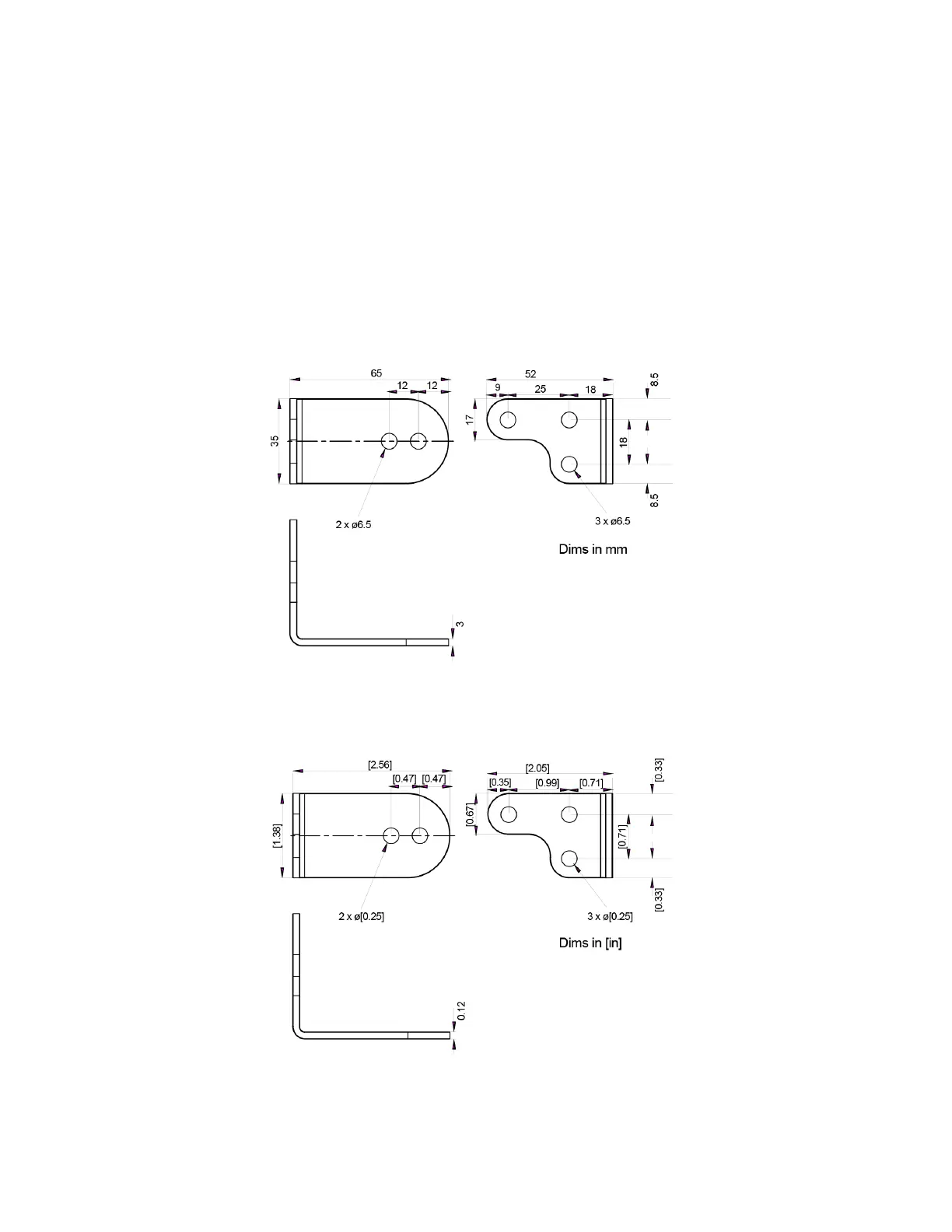

L-BRACKET Dimensions
