4.0) Install L-BRACKETS to the Wall and Side Insert Points:
4.1) Run the wiring from the power amplifier to the location desired for mounting the JBL COL loudspeaker.

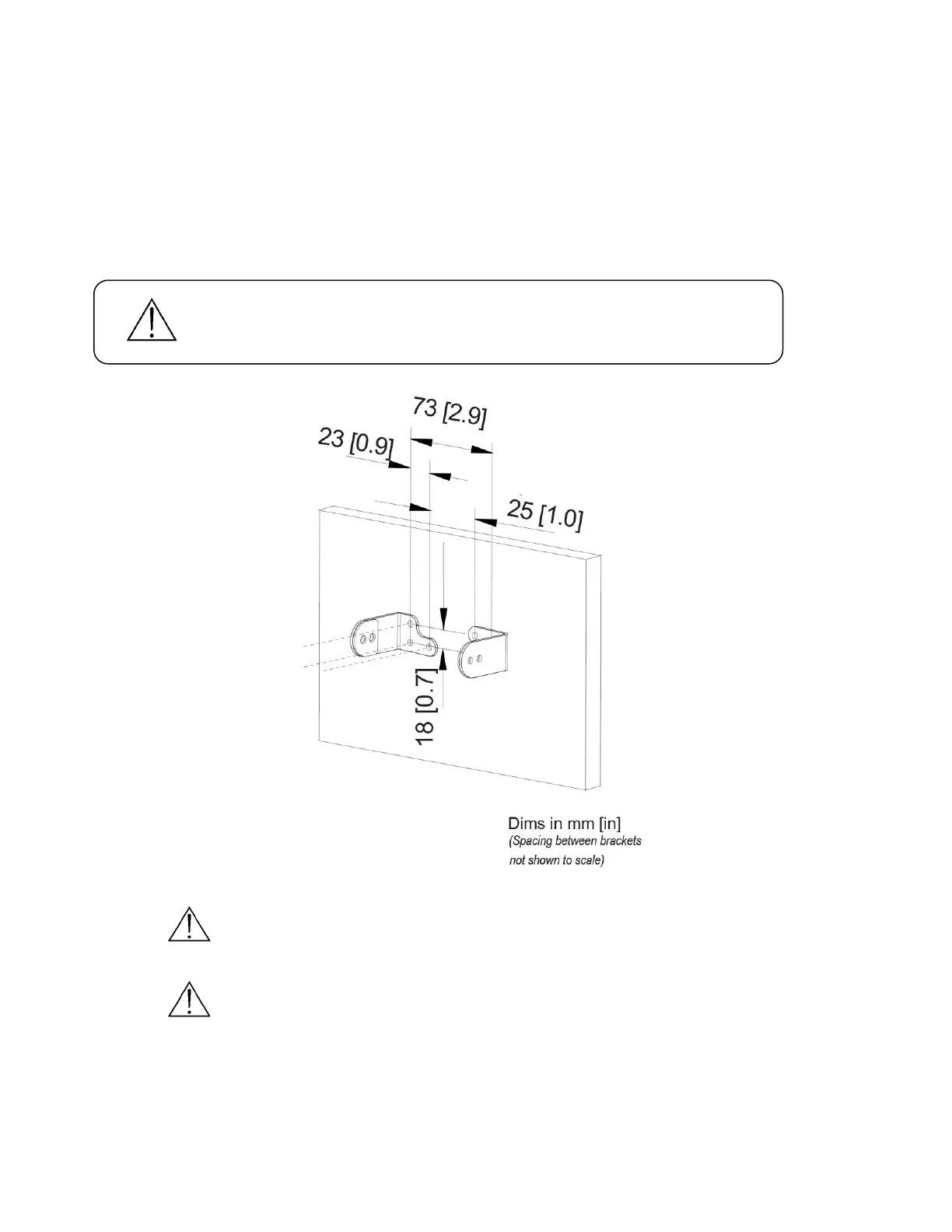

4.2) Secure L-BRACKET to wall using the appropriate installer-selected attachment hardware, and using a level to ensure that
the L-BRACKETS are plumb. Use 3 screws for each L-bracket. For use with side insert points, space brackets so that inner-
most screws holes are 25 mm apart (adjust as needed).
CAUTION: Installation must be done by skilled persons
using safe installation standards.
Hardware for attaching L-BRACKETS to wall is not included. The installer
is responsible for proper selection and use of mounting hardware and for
properly and safely securing the brackets to the wall material.
If precipitation can be present at the installation location, cabinet must not
be installed at any upward aim angle, and slight downward aim angle (5°
or greater) is recommended to keep water out of loudspeaker.
