APPLICATIONS
EVOi.net IN FAN-SHAPED ROOMS
Small Fan-Shaped Room:
EVOi.net + 1 Main (Mono) EVOi.324

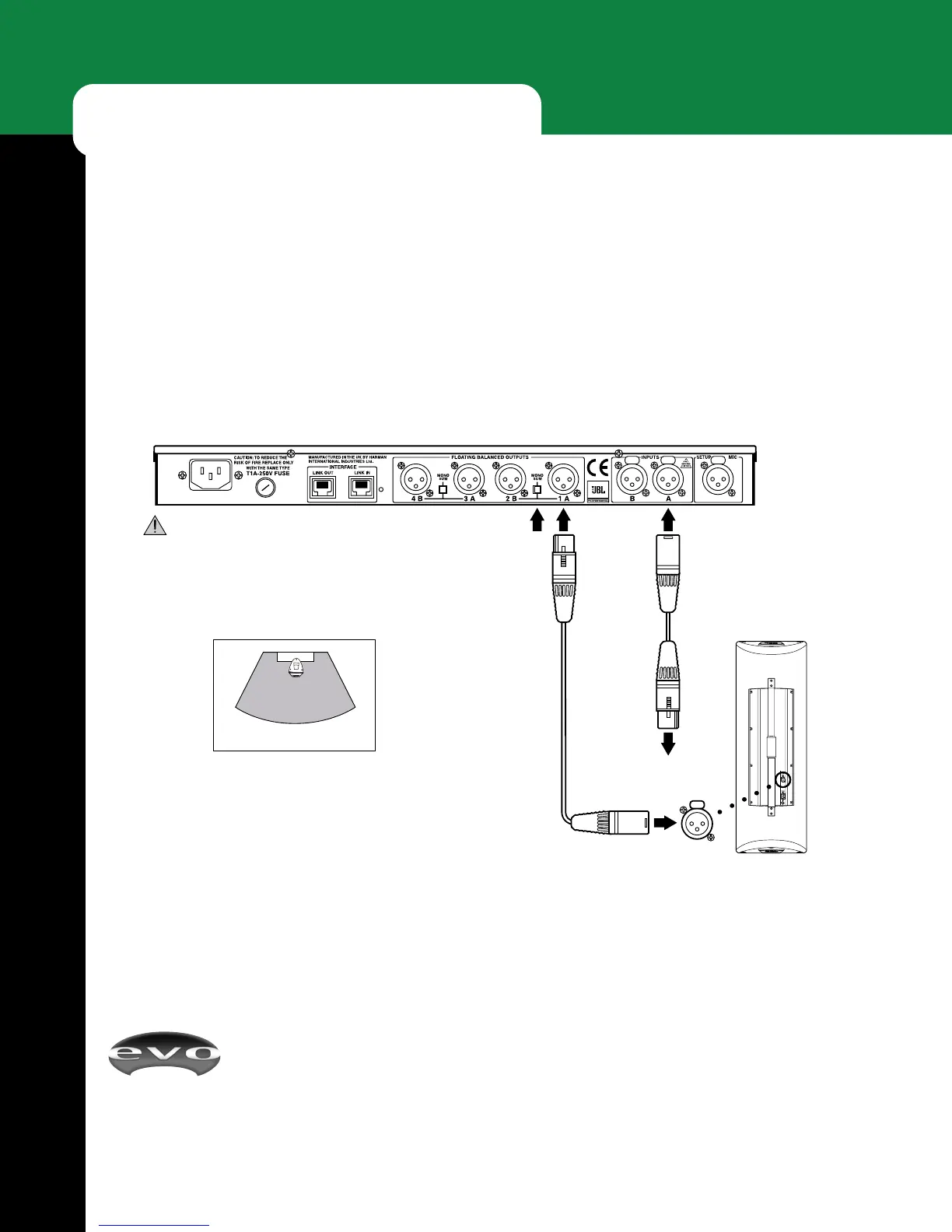

EVOi.net hook up configuration and Measurement Microphone are as illustrated below. The setup is identical to EVOi.net
in a Small Rectangular Room.
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
Speaker Placement In Room
XLR Signal Cable
EVOi.324
Input
Audio Output
(from Mixer)
IMPORTANT: Make sure POWER is off
before making connections.
MonoMono
Mono
In
Main Mono
XLR Signal Cable
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
1
