EVOi.net
23
APPLICATIONS
EVOi.net IN FAN-SHAPED ROOMS
Medium Fan-Shaped Room:
EVOi.net + 2 Main (Mono Array) EVOi.324s

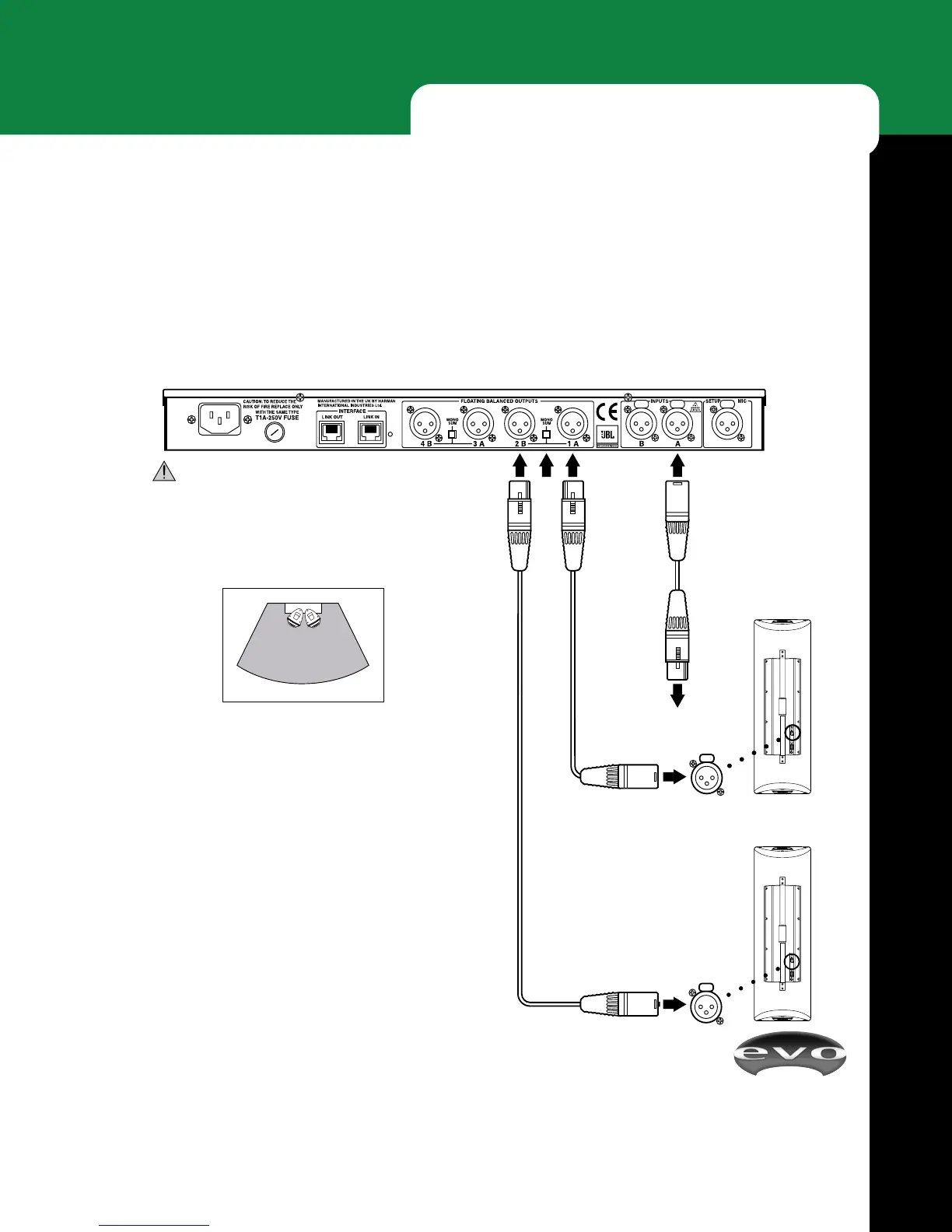

For a medium size Fan Shaped Room, broader coverage may be required, therefore the EVOi.324s are configured as
illustrated below (see EVOi.324 Users Guide, Applications page15). Hook up for this system is as illustrated below, also
approximate position of the Measurement Microphone (see ‘Placing Measurement Microphone for MAIN EVO Loudspeak-
ers’ page11).
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
Speaker Placement In Room
EVOi.324
Input
EVOi.324
Main Mono 2
XLR Signal Cable
XLR Signal Cables
EVOi.324
Input
EVOi.324
Main Mono 1
Audio Output
(from Mixer)
IMPORTANT: Make sure POWER is off
before making connections.
Mono
Mono
In
Main Mono 1
Main Mono 2
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
1
