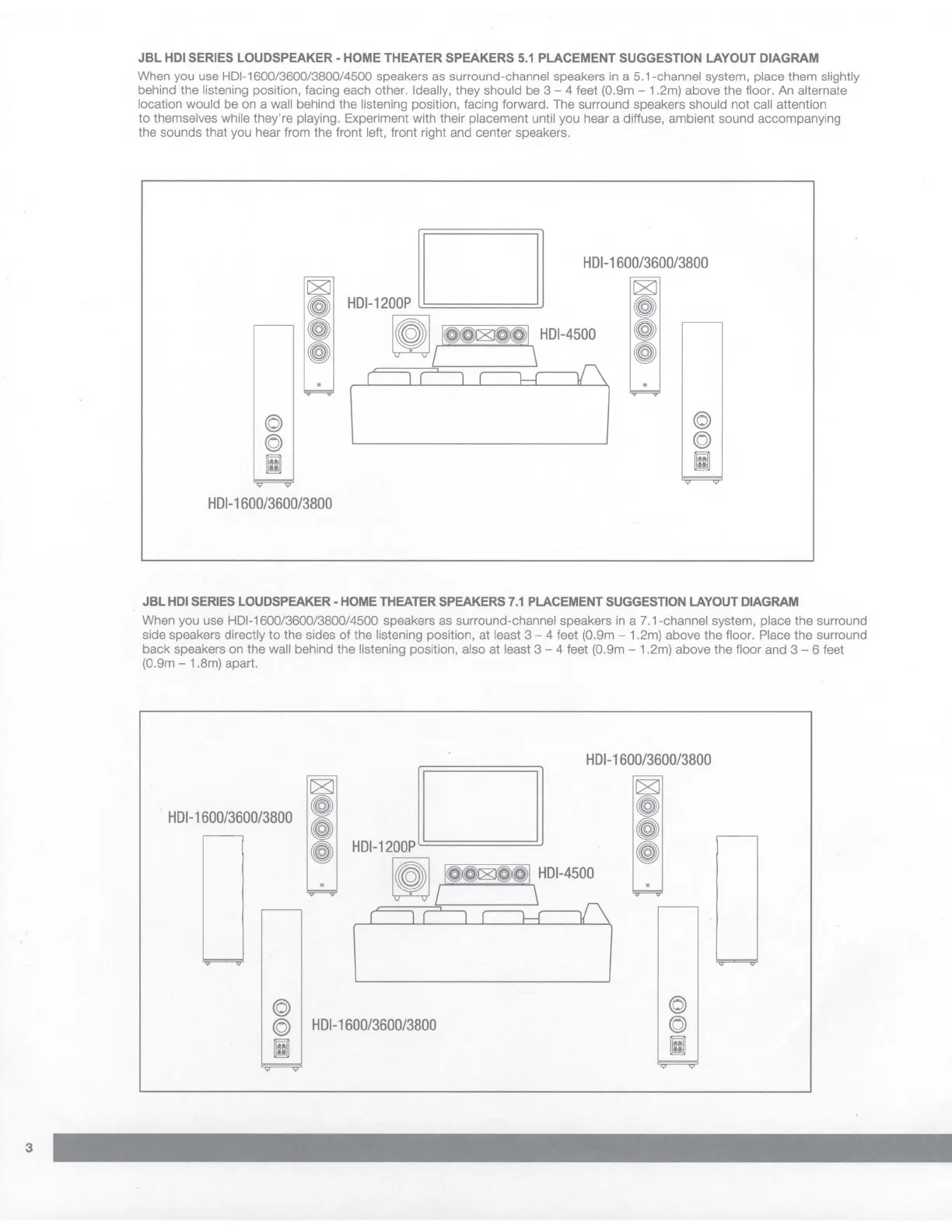

JBL HDI SERIES LOUDSPEAKER - HOME THEATER SPEAKERS 5.1 PLACEMENT SUGGESTION LAYOUT DIAGRAM
When you use HDl-1600/3600/3800/4500 speakers as surround-channel speakers in a 5.1-channel system, place them slightly
behind the listening position, facing each other. Ideally, they should be 3 - 4 feet (0.9m - 1.2m) above the floor. An alternate
location would be on a wall behind the listening position, facing forward. The surround speakers should not call attention
to themselves while they're playing. Experiment with their placement until you hear a diffuse, ambient sound accompanying
the sounds that you hear from the front left, front right and center speakers.
©
©
[i]
HDl-1600/3600/3800
HDl-1200P C
HDl-1600/3600/3800
l~I l~I HDl-4500
~--=;I,---~
C8J
~
~
~
©
©
[i]
JBL HDI SERIES LOUDSPEAKER - HOME THEATER SPEAKERS 7.1 PLACEMENT SUGGESTION LAYOUT DIAGRAM
When you use HDl-1600/3600/3800/4500 speakers as surround-channel speakers in a 7 .1-channel system, place the surround
side speakers directly to the sides of the listening position, at least 3 - 4 feet (0.9m - 1.2m) above the floor. Place the surround
back speakers on the wall behind the listening position, also at least 3 - 4 feet (0.9m - 1.2m) above the floor and 3 - 6 feet
(0 .9m - 1.8m) apart.
HDl-1600/3600/3800
HDl-1600/3600/3800
HDl-1200Pc
l~I l~I HDl-4500
~-I,---~
ESE:=J ~
©
© HDl-1600/3600/3800
©
©
[i]
il

JBL HDI Series Specifications

General

Series	HDI
Midrange	Varies by model
Enclosure Type	Bass-reflex
Dimensions	Varies by model
Weight	Varies by model
