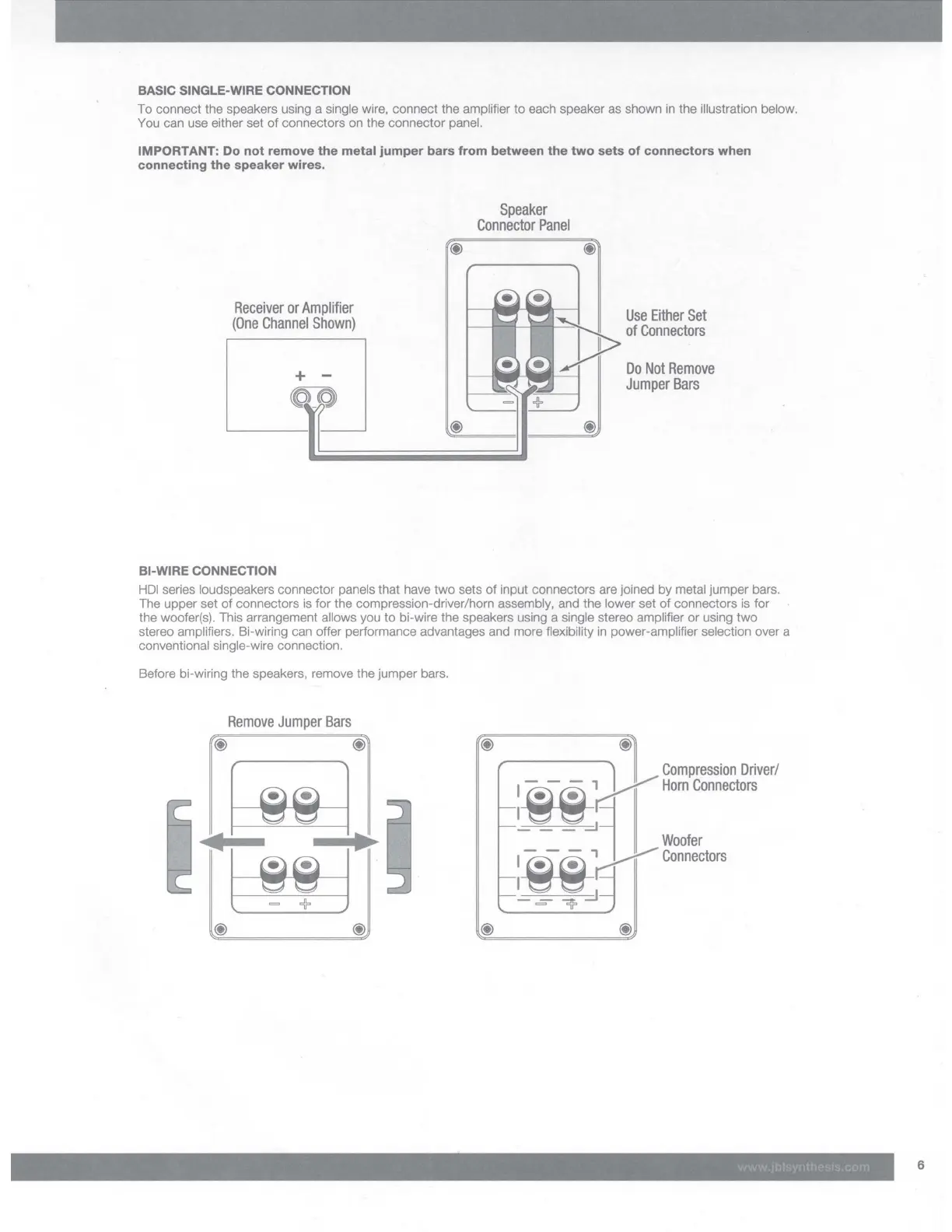

BASIC SINGLE-WIRE CONNECTION
To connect the speakers using a single wire, connect the amplifier
to
each speaker as shown
in
the illustration below.
You can use either set of connectors on the connector panel.
IMPORTANT: Do
not
remove
the
metal
jumper
bars from between
the
two
sets
of
connectors when
connecting
the
speaker
wires.
Receiver
or
Amplifier
(One
Channel
Shown)
+
~-~
Bl-WIRE CONNECTION
Speaker
Connector
Panel
Use
Either
Set
~
of
Connectors
~~
~~~~~
~N~~~~
Jumper
Bars
HDI
series loudspeakers connector panels that have two sets of input connectors are joined by metal jumper bars.
The upper set
of
connectors
is
for the compression-driver/horn assembly, and the lower set of connectors
is
for
the woofer(s). This arrangement allows you
to
bi-wire the speakers using a single stereo amplifier or using two
stereo amplifiers. Bi-wiring can offer performance advantages and more flexibility
in
power-amplifier selection over a
conventional single-wire connection.
Before bi-wiring the speakers, remove the jumper bars.
Remove
Jumper
Bars
@ @ @ @
ill
•
•
~
c{},
Compression
Driver/
~
:
~ ~
ri
Hom
Connectors
___
J,
Woofer
:
~ ~
1iYi
Connectors
-.=-
°?
d
@ @ @ @
6
