JBL PRX718XLF User Manual

JBL PRX718XLF/230

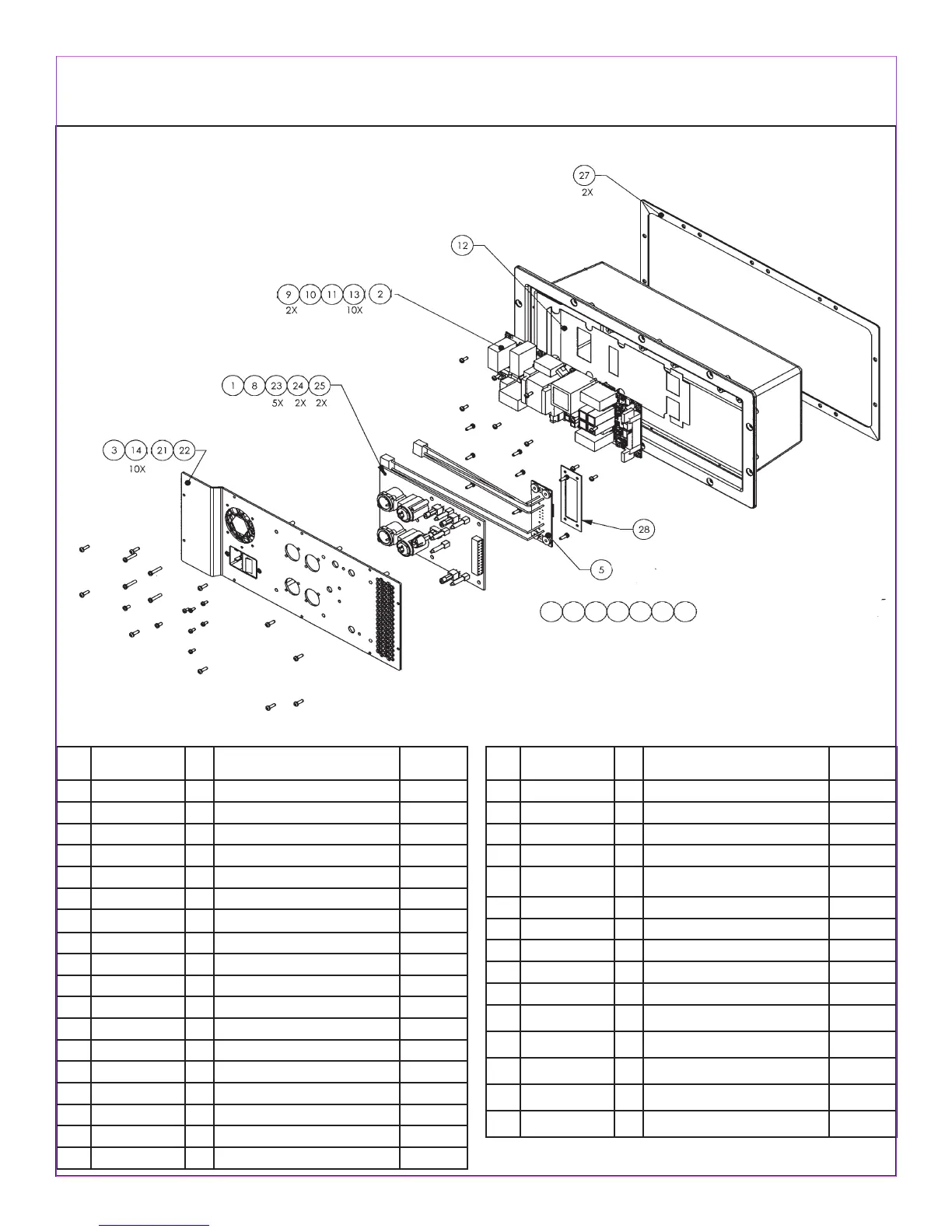

COMPONENT EXPLODED VIEW
COMPONENT PARTS LIST:
JBL PRX718XLF/230
Item Part No. Qty Description Ref.Des.
1 5032685 1 Input Board Assembly n/a
2 5032687 1 PSU/Amplier Board n/a
3 5032701 1 Input Plate Assembly n/a
5 5032753 1 Interface PCB Assembly-Sub n/a
8 5032723 1 26 Pin Ribbon Cable n/a
9 5032725 2 GAP PAD Top n/a
10 5032727 1 GAP PAD Middle n/a
11 5032729 1 GAP PAD Bottom n/a
12 5032731 1 Isolating Sheet n/a
13 813-41210-08 10 M3X8MM Machine Screws n/a
14 813-41210-08 10 M3X8MM Machine Screws n/a
15 813-41210-08 6 M3X8MM Machine Screws n/a
21 5032747 1 AC Inlet Socket n/a
22 5032749 1 Fan Assembly n/a
23 5034166 4 Light Pipe n/a
24 445045 1 Volume Knob n/a
25 363638 3 Switch Cap n/a
27 5032126 2 Amplier Gasket n/a
Item Part No. Qty Description Ref.Des.
28 5038780 1 Pass Through Gasket
29 5041553 1 NC3MB AV J4
30 5041554 2 XCR, 1/4 Combo Input
J5,J7
31 5041555 1 RCA Dual Input J6
32 5041556 4 Switch TL2201
SW1, SW2,
SW3, SW4
33 5041557 2 Slice Switch
SW3.SW4
34 5041558 2 10k 20% .05 w
VR1, VR2
35 ZD8016 1 Fuse5x20mm T6.3A/250V F1
29 30 31 32 33 34 35
