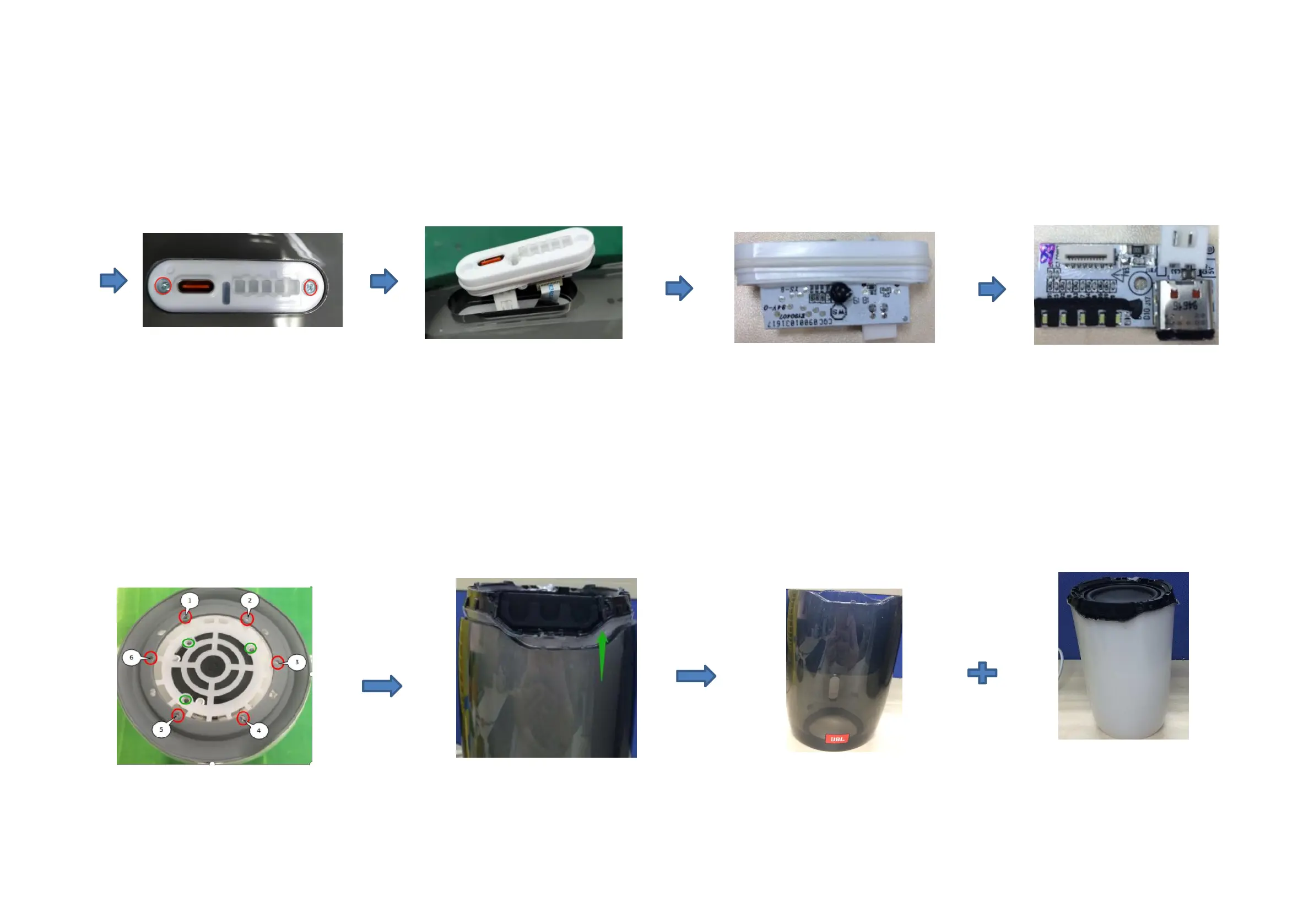

Disassemble the LED
USB PCBA
Move away the connected bracket
Move away screws
Out barrel
Inner barrel
Move away the 9
screws from speaker
upper bracket.
