JBL S-Center Studio Series User Manual

Binding Post Nut (2)
T879-01
Woofers (2)
SS-W5.25SS
Crossover
Network
XY05009
Woofer Gasket (2)
P04097
Grille Retainer (4)
WI0647
Enclosure
S-Center XY05009
Tweeter
40DT25BC-DT01
Mid/Tweeter
Baffle
X04084
Screw (6)
Zinc #8 x ⁵⁄₈"
Allen HD
A06-T41611
Screw (8)
Zinc #8 x ⁵⁄₈"
Allen HD
A06-T41611
Midrange Gasket
P04064
Mid/Twt Gasket
REV2
WI0526
Midrange
SS-M4SS
Grille
X05246
Woofers (2)
SS-W5.25SS
Screw (8)
Zinc #8 x ⁵⁄₈"
Allen HD
A06-T41611
Screw (4)
#8 x ¹⁄₂ "PPH Black
06-T41202
Service Note:
Crossover network is not serviceable;
the network is part of the enclosure,
part# XY05009
S-Center
Studio Series
S-Center Studio Series
10-99
JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797

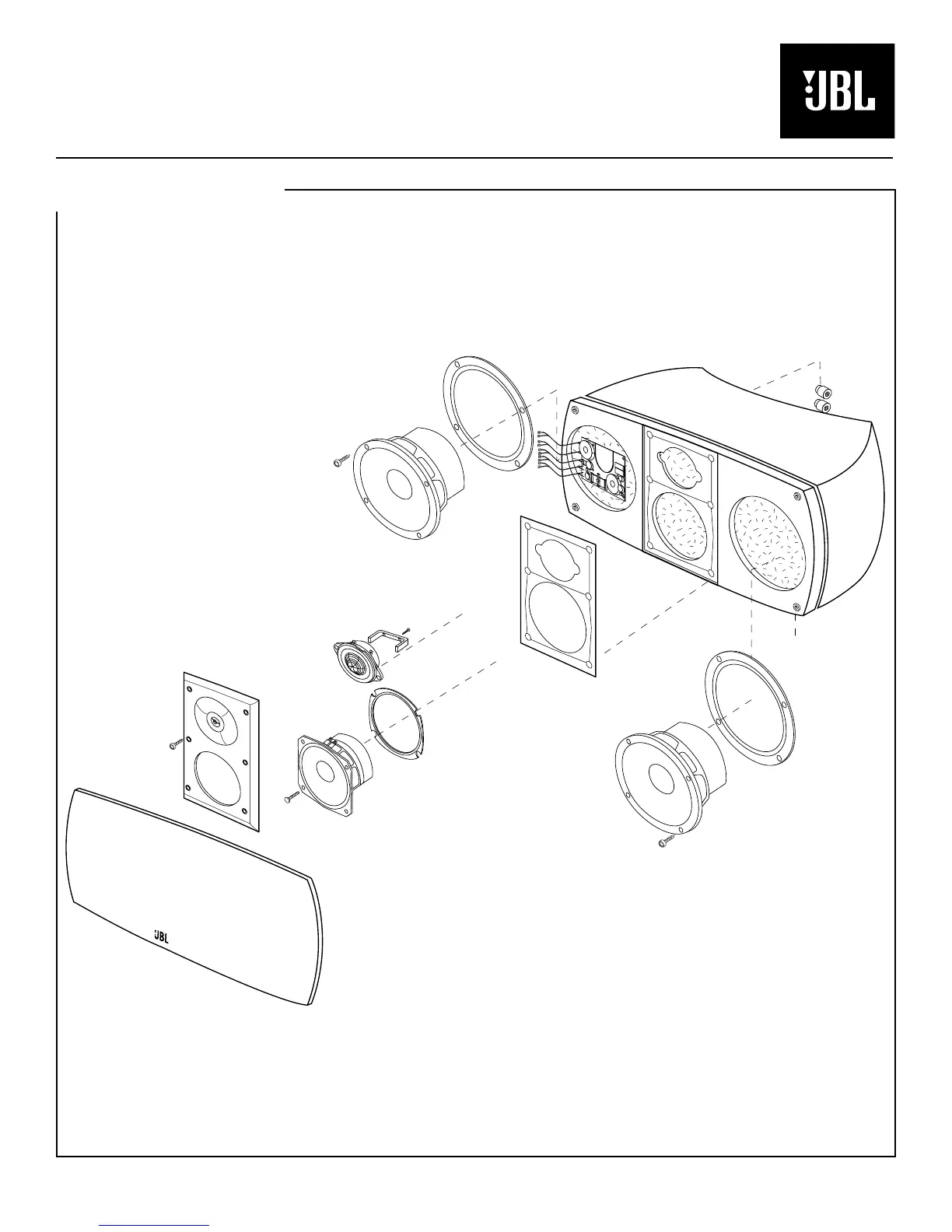

EXPLODED VIEW
