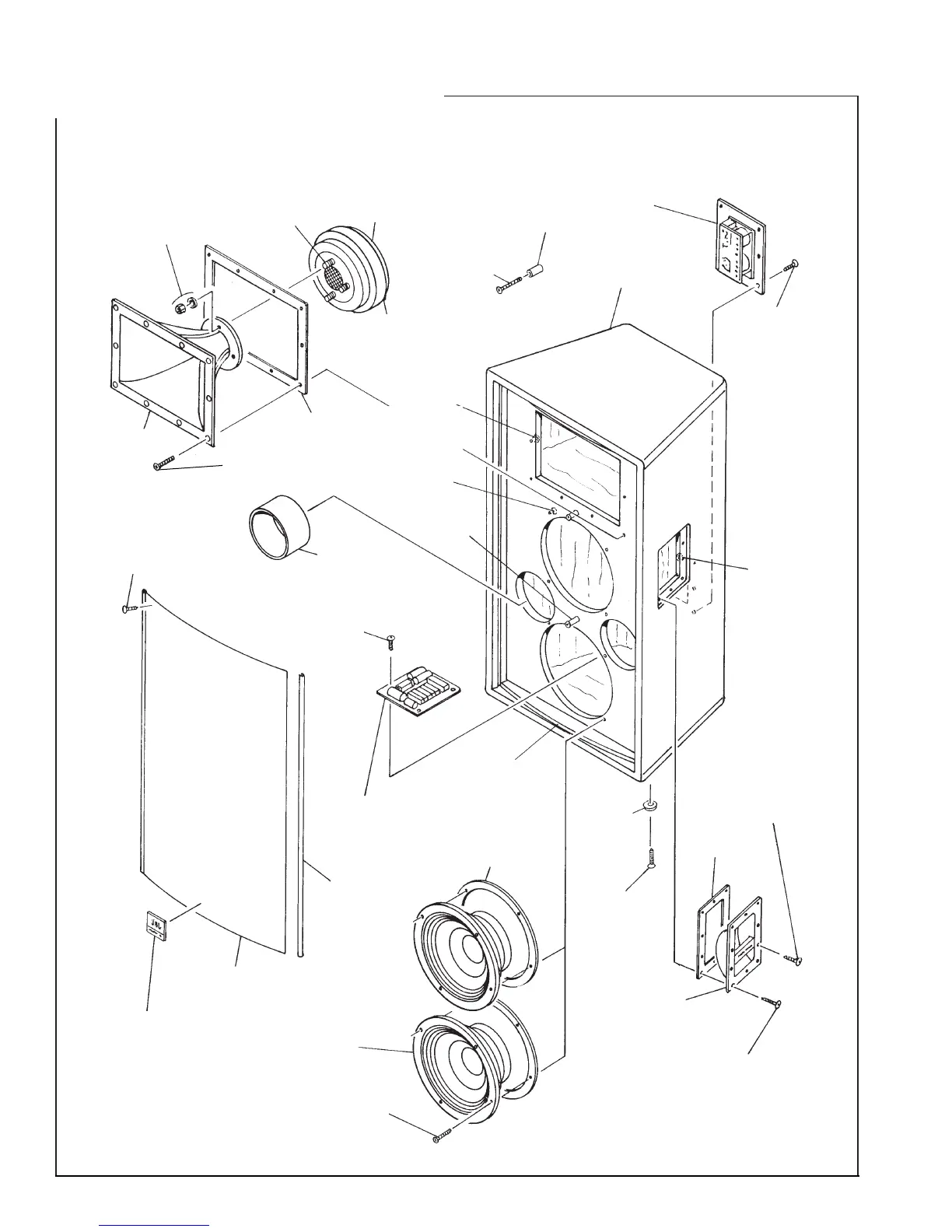

COMPONENT EXPLODED VIEW
Screw (10)
882-51110-12
6 x 3/4
OV PH
Screw (6)
61867
No. 6 x 3/4
OVHD PH
Screw (2)
883-31110-40
No. 8 x 2-1/2
TR HD PH PB
Grille
Support (2)
389-00032-00
Screw (8)
804-01110-16
10-32 x 1
FIL,PH, BLK,
ZINC
Gasket
75710
See
Detail A
Screw (8)
804-41110-12
10-32 x 3/4
PAN,PH,BLK
ZINC,LCS
Screw (12)
884-41110-12
No. 10 x 3/4
PNHD PH PB THD
Speaker,
Low Freq
2206H (2)
Cone Repl
C8R2206
Screw (10)
806-31010-16
1/4-20 x 1-1/4
THRUSS PH BLK
ZINC
Screw (4)
844-41210-16
10 x 1
PAN, PH, BLK
Screw (6)
882-51110-12
6 x 3/4
OV PH
Speaker,
High Freq
2447J
Diaph Repl
D16R2450
Network
129-20057-00
Network
129-20057-00
DETAIL A
Binding Post
RED 33750
BLK 33751
Stud (4)
75815
1/4-20
Foot (4)
353445-001
Stand-Off (2)
819-00000-00
T-Nut (8)
61861
No. 10-32
T-Nut (8)
61861
No. 10-32
T-Nut (10)
834-44011-00
1/4-20 BLK
Port Tube (2)
51644
(Not For Sale)
Horn
2381
126-00000-00
Hardware
Kit
76149
Grille
128-00396-00
Grille Trim (2)
382-00336-02
Name Plate
950-00037-00
Cabinet
SR4731X
(Not For Sale)
Gasket,
Handle (2)
382-00337-00
Gasket (2)
63284
Handle (2)
923-00022-00
NOTE: BLACK DURAFLEX
REPAIR KIT 30052
Washer (4)
845-00110-08
5/16 Flat
