STUDIO 130  SURROUND CHANNELS 5.1CHANNEL SYSTEM
When you use Studio 130 speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind
the listening position, facing each other. Ideally, they should be 5 – 6 feet (1.5m – 1.8m) above the floor. An alternate
location would be on a wall behind the listening position, facing forward. The surround speakers should not call
attention to themselves while they’re playing. Experiment with their placement until you hear a diffuse, ambient sound
accompanying the sounds that you hear from the front left, front right and center speakers.

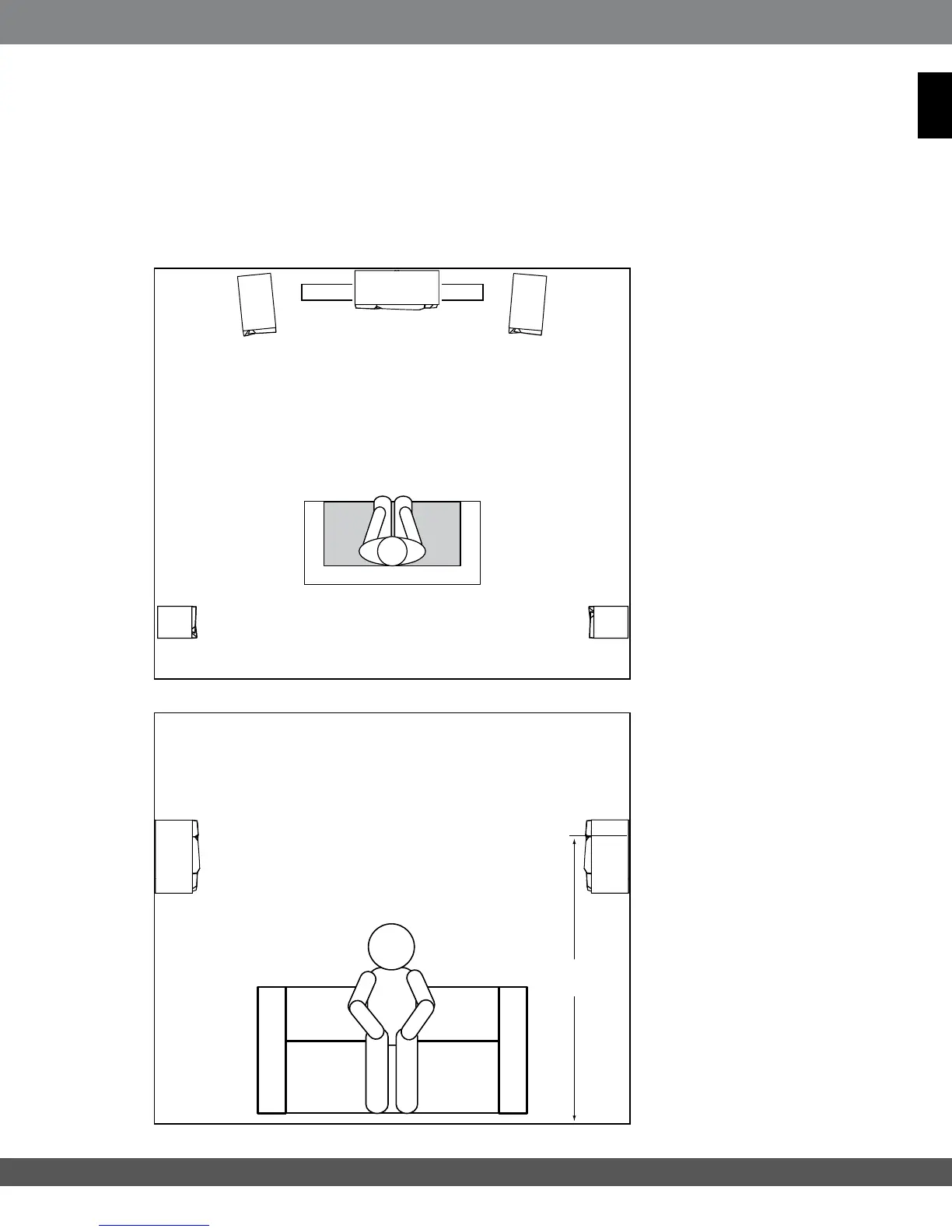

Studio
190/180/130
Front Left
Speaker
Surround Right
Speaker
Surround Left
Speaker
5 – 6 ft
(1.5m – 1.8m)
TV
Studio 120c
Center Speaker
Studio
190/180/130
Front Right
Speaker
Studio 130
Surround Left
Side Speaker
Studio 130
Surround Right
Side Speaker
