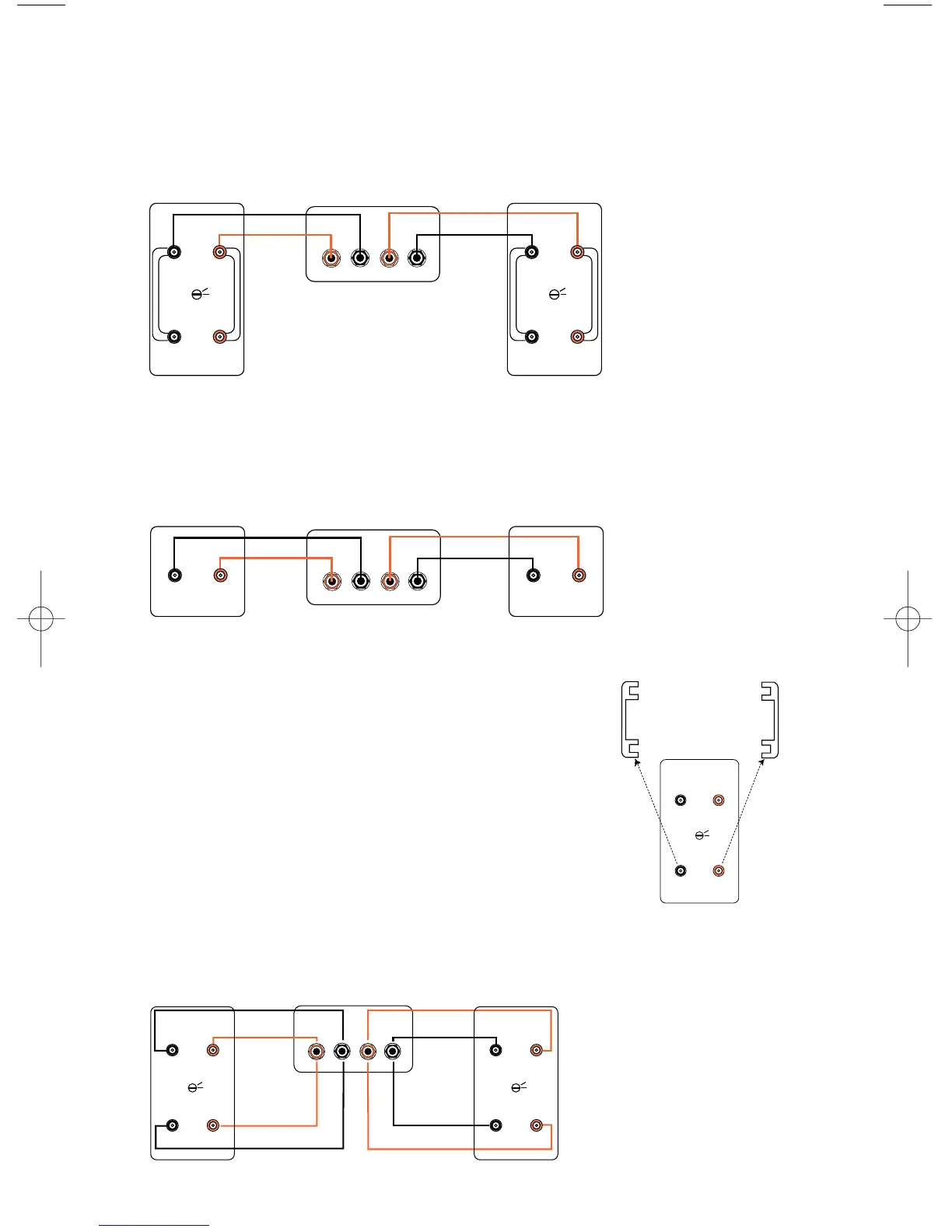

The SVA2100, SVA1800 and
SVA1600 outer connection
panel and internal dividing
network are designed so
that separate sets of speaker
cable can be attached to the
low-frequency transducer and
midrange/high-frequency
transducer portions of the
dividing network. This is
called bi-wiring. Bi-wiring
provides several sonic
advantages and considerably
more flexibility in power
amplifier selection.
Standard
SVA2100, SVA1800, SVA1600
Single-Stereo Amplifier
+ – + –
Right Left
Right Speaker Left SpeakerReceiver/Amplifier
– +
– +
+2dB
0dB
High Frequency
HF
LF
– +
– +
+2dB
0dB
High Frequency
HF
LF
Bi-Wiring
– +
– +
+2dB
0dB
High Frequency
HF
LF
Remove strapping bars.
+ – + –
Right Left
Right
Speaker
Left
Speaker
Receiver/
Amplifier
– + – +
SVA1500, SVA Center
