JBSYSTEMS Light LM 400 - Signal Output Port; Maximum Output Power Ratings; 3000 W Hold Dim Mode Limit; 0-10 V Output Connector Diagram

LM400 4
13. Signal Output
0-10V output for controlling external power packs Liteputer P404D
and P-4015.
14. Maximum Output Power
1500 Watt per channel resistive
700 Watt per channel inductive
15. When you use the ‘Hold Dim’ mode, you have to make sure
you stay under 3000 W (power supply).
For higher power you need to work with additional dimmer packs.

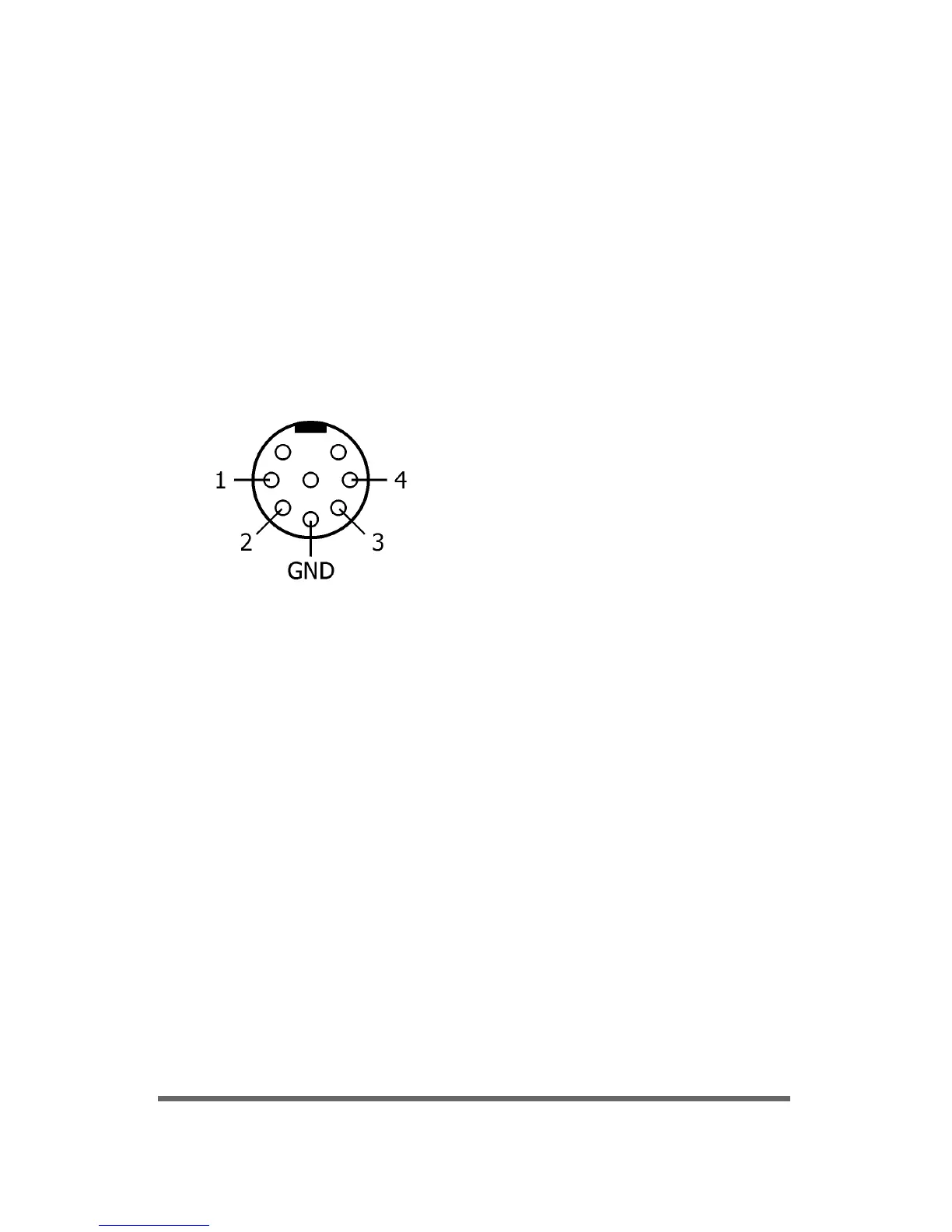

16. Output (0-10V):
