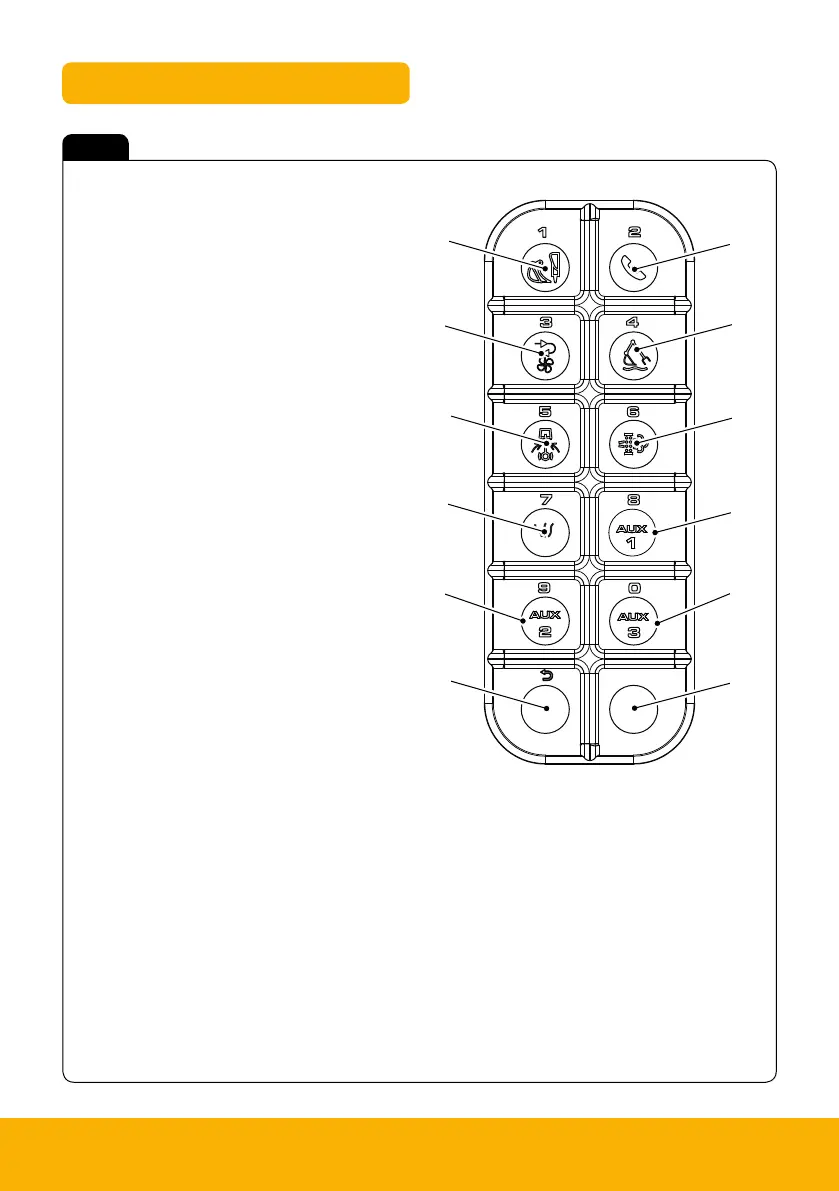

Fig 11
Keypad 2
A Call accept/reject/end button
Immobiliser key number 2
B Boom float button
Immobiliser key number 4
C Exhaust filter button, Immobiliser key number 6.
Press the button to initiate or defer SCR (Selective
Catalytic Reduction)
D Aux 1 button. Immobiliser key number 8
E Aux 2 button. Immobiliser key number 0
F Not used
G Immobiliser back button
H Aux 2 button. Immobiliser key number 9
J Auxiliary venting, Immobiliser key number 7
K Slew smoothing button
Immobiliser key number 5
L Reverse fan button, Immobiliser key number 3.
When pressed the fan timer is overridden and the fan
is reversed immediately for the time pre-set by the
operator using the control box.
M Tool select button, Immobiliser key number 1
