210X 220X 15

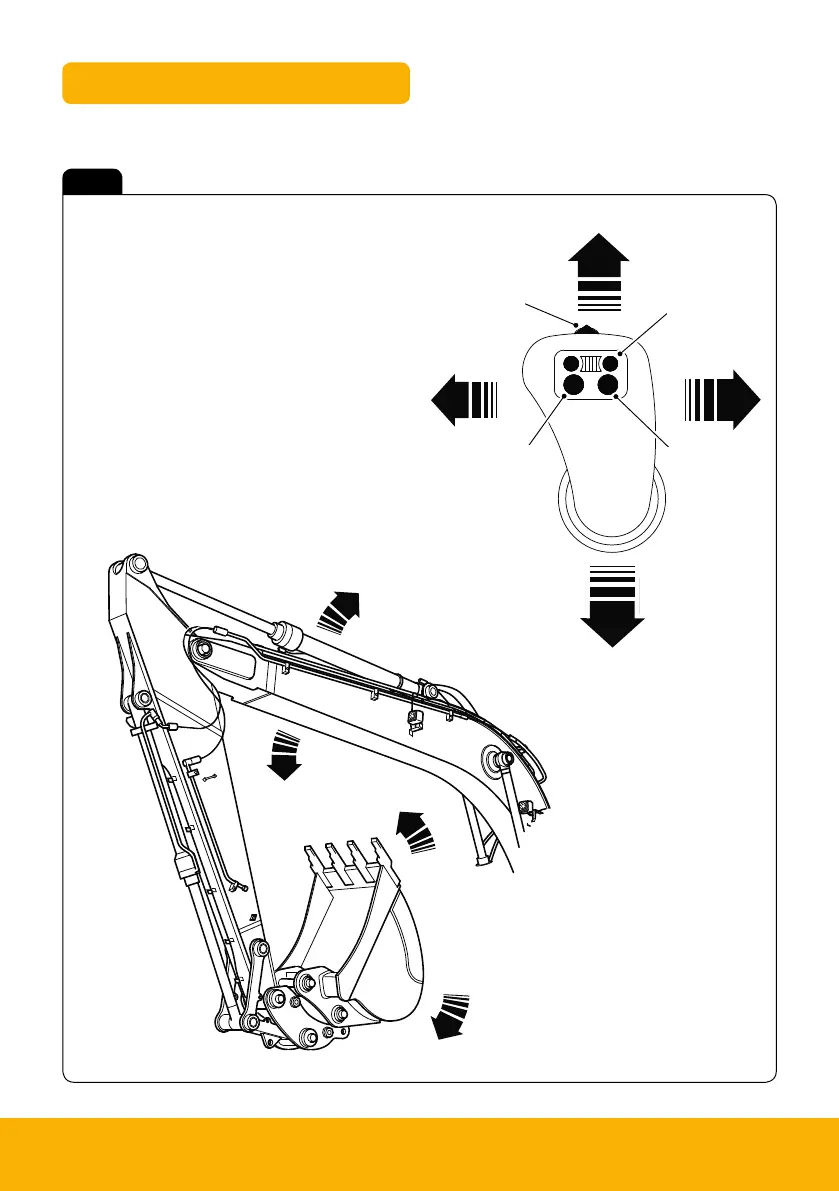

RH Joystick (ISO control pattern)
Fig 13
Pedals and controls
A Proportional auxiliary control low flow (option)
B 2 - speed tracking
C One touch engine idle
D Power boost
1 Backward: Raise the boom
2 Forward (lower the boom)
3 Left: Fill the bucket
4 Right: Empty the bucket
2
4
3
1
A
B
C
D
1
2
3
4
