210X 220X 7

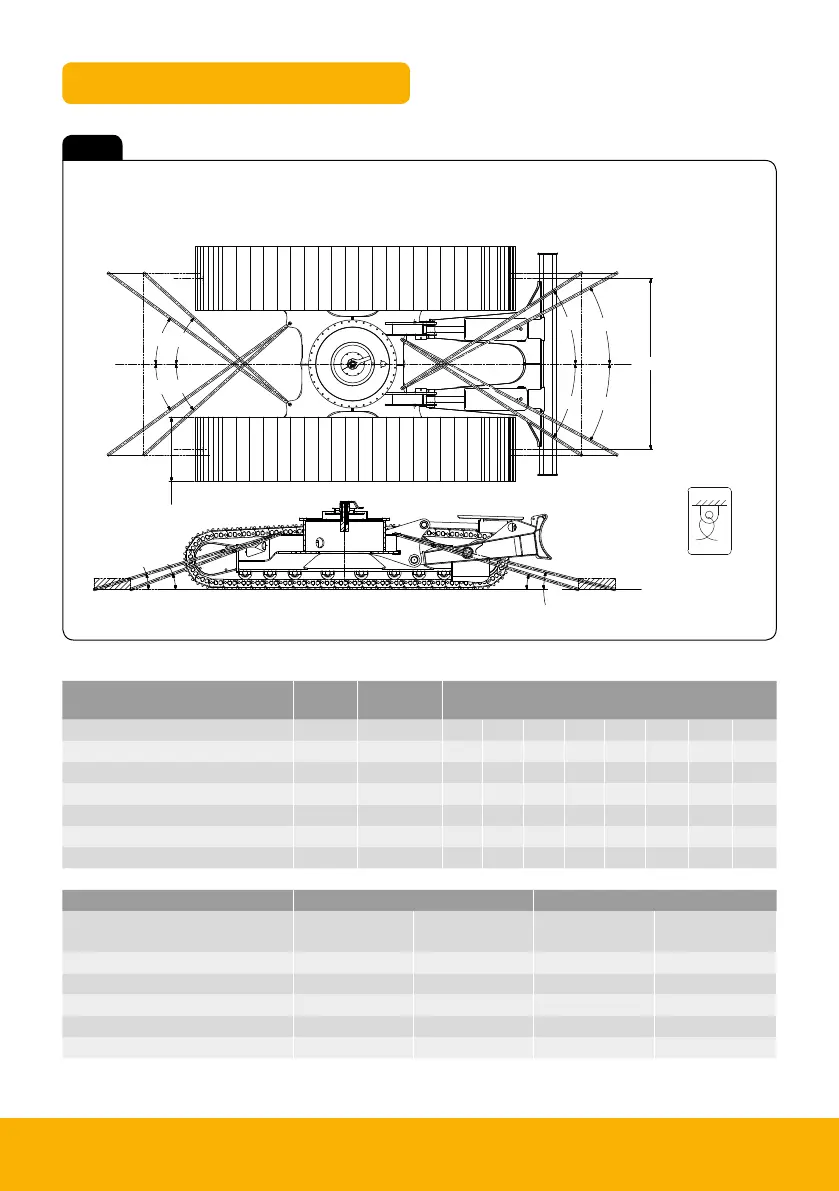

Fig 3
Undercarriage dozer option
A
B
E
E
F
G
H
G
H
F
K
J
C
D
Tie down points
Tie down
position decal
Undercarriage type Track
width
Running gear
CL width
Angles in degree
A B C D E F G H J K
210SC / 220SC / 220SCXD 800mm 2,170mm 20° 16.5° 41° 35°
210LC / 220LC / 220LCXD / 220LCLR 900mm 2,390mm 20° 17° 42° 36°
210NLC / 210NLC / 220NLCXD 700mm 1,990mm 18° 15.5° 39° 34.4°
220SLC / 220SLCLR 800mm 2,170mm 18° 14.5° 38° 31°
220LCD 900mm 2,390mm 20° 17° 42° 36° 33° 28.5° 62.5° 37.4°
220SLCD 800mm 2,170mm 18° 14.5° 38° 34.4° 32° 28° 56° 36°
Undercarriage type Track width Running gear CL width
Front
tie down point
Rear
tie down point
Front
tie down point
Rear
tie down point
210SC / 220SC 104kN 104kN 166kN 166kN
210LC / 220LC 107kN 107kN 172kN 172kN
210SLC / 210SLC 109kN 109kN 174kN 174kN
200LCD 118kN 120kN 189kN 192kN
200SLCD 118kN 113kN 189kN 181kN
