01 - Machine
03 - Safety
27 - Maintenance Positions
01 - 17 9813/5150-2 01 - 17

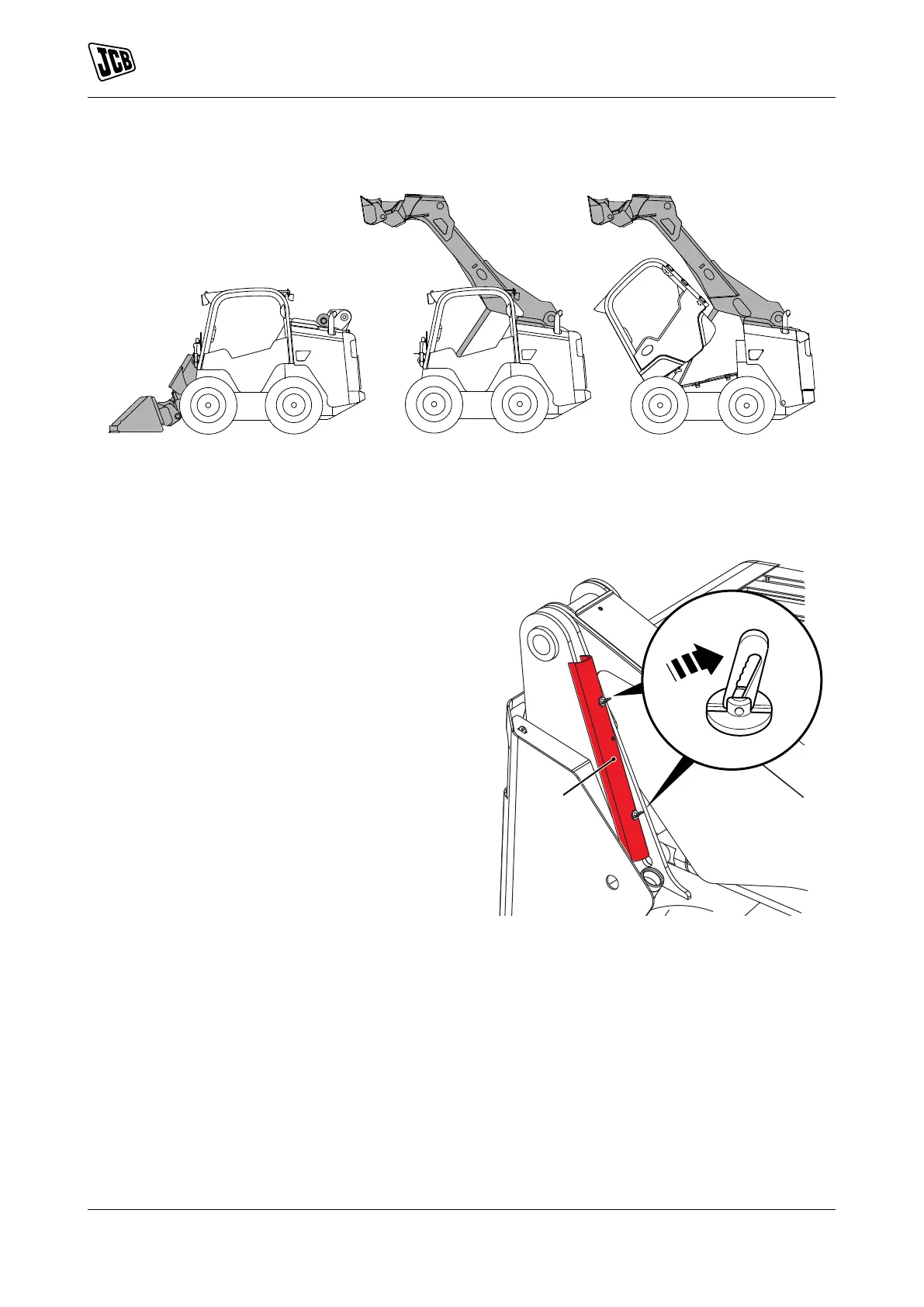

Figure 7.
A Lift arm lowered B Lift arm raised
C Lift arm and cab raised
Lift Arm Lowered
1. Park the machine on level, solid ground. Refer to
(PIL 01-03).
2. Lower the lift arm.
3. Put the attachment flat on the ground.
4. Stop the engine and remove the ignition key. If
the keyless ignition option is installed stop the
engine and wait
Duration: 15s
5. Disconnect the battery to prevent accidental
operation of the engine. Refer to (PIL 33-03).
6. If necessary, put blocks against the two sides of
the wheels before you get below the machine.
Lift Arm Raised
If you raise the lift arm to get access for maintenance,
you must install the lift arm maintenance strut on the
lift arm.
Installing the Lift Arm Maintenance Strut
Figure 8. Stowage Radial Lift
C Stowage position
