jcb 260T Service Manual

01 - Machine
03 - Safety
27 - Maintenance Positions
01 - 14 9813/5150-2 01 - 14
27 - Maintenance Positions
Introduction .................................................... 01-14
Health and Safety .......................................... 01-19
Introduction
For: 225 [T3 GE0], 225 [T4F GE0], 225T [T3
GE0], 225T [T4F GE0], 260 [T3 GE0], 260
[T4F GE0], 260T [T3 GE0], 260T [T4F GE0],
280 [T3 GE0], 280 [T4F GE0], 300 [T3 GE0],
300 [T4F GE0], 300T [T3 GE0], 300T [T4F
GE0], 320T [T3 GE0], 320T [T4F GE0], 330
[T3 GE0], 330 [T4F GE0] .......... Page 01-14
For: 225T [T3 GE0], 225T [T4F GE0], 260
[T3 GE0], 260 [T4F GE0], 260T [T3 GE0],
260T [T4F GE0], 280 [T3 GE0], 280 [T4F
GE0], 300 [T3 GE0], 300 [T4F GE0], 300T
[T3 GE0], 300T [T4F GE0], 320T [T3 GE0],
320T [T4F GE0], 325T [T4F GE0], 330 [T3
GE0], 330 [T4F GE0] ................ Page 01-16
(For: 225 [T3 GE0], 225 [T4F GE0], 225T
[T3 GE0], 225T [T4F GE0], 260 [T3 GE0],
260 [T4F GE0], 260T [T3 GE0], 260T [T4F
GE0], 280 [T3 GE0], 280 [T4F GE0], 300
[T3 GE0], 300 [T4F GE0], 300T [T3 GE0],
300T [T4F GE0], 320T [T3 GE0], 320T
[T4F GE0], 330 [T3 GE0], 330 [T4F GE0])
Make the machine safe before you start a
maintenance procedure. Refer to (PIL 01-03).
You can complete most of the maintenance
procedures with the lift arm lowered. Unless a
maintenance procedure instructs you differently, you
must lower the lift arm.
If you raise the lift arm to get access for maintenance,
you must install the maintenance strut on the lift arm.
If the cab is to be lifted to get access for
maintenance, you must raise the lift arm and install
the maintenance strut on the lift arm.
Release the hydraulic pressure. Refer to (PIL 30-00).

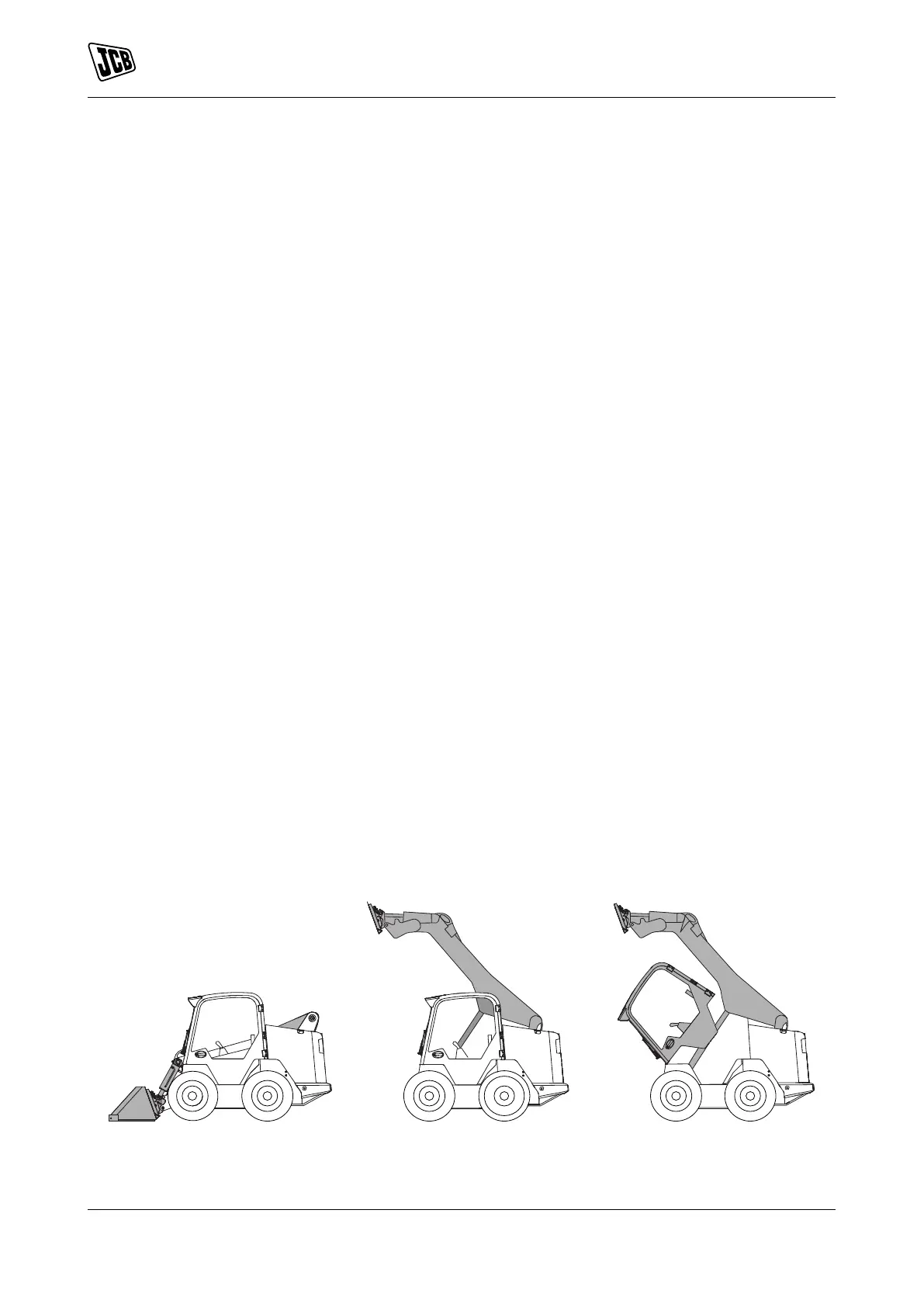

Figure 2.
A
B
C
A Lift arm lowered B Lift arm raised
C Lift arm and cab raised

jcb 260T Specifications

General

Operating Weight	9, 774 lbs
Engine Power	55 kW
Rated Operating Capacity	2, 600 lbs
Tipping Load	7, 429 lbs
Lift Path	Vertical
Net Engine Power	55 kW
Width	69.1 in
Max. Travel Speed	12.6 km/h
High Flow	90 L/min
Length with Bucket	3, 500 mm
Bucket Capacity	0.48 m³
Max Travel Speed	12.6 km/h
Breakout Force	38.6 kN
Length	3, 500 mm
Height	2, 200 mm
Pump Flow	60 L/min
