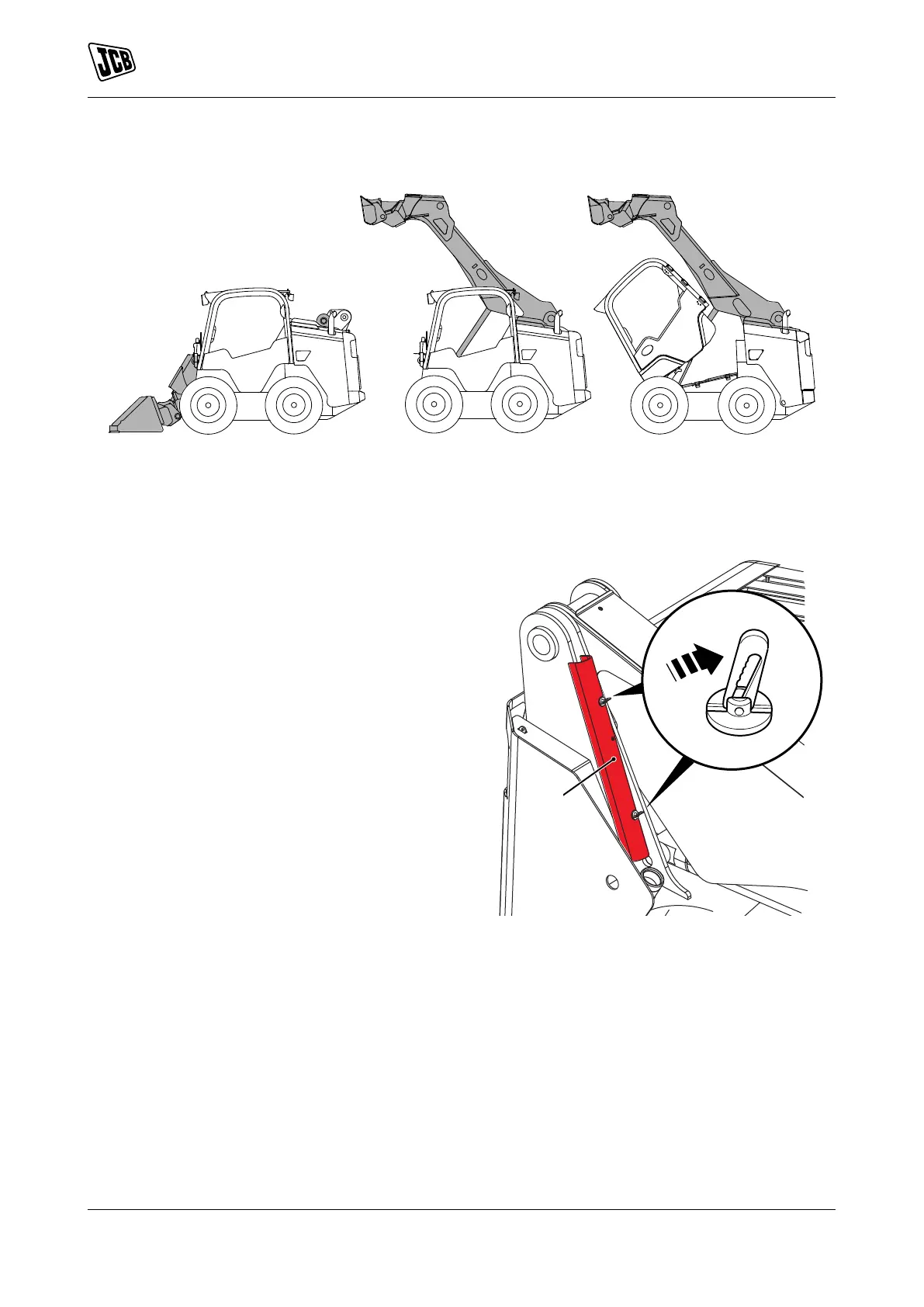

Figure 7.
A
B
C
A Lift arm lowered B Lift arm raised
C Lift arm and cab raised
Lift Arm Lowered
1. Park the machine on level, solid ground. Refer to
(PIL 01-03).
2. Lower the lift arm.
3. Put the attachment flat on the ground.
4. Stop the engine and remove the ignition key. If
the keyless ignition option is installed stop the
engine and wait
Duration: 15s
5. Disconnect the battery to prevent accidental
operation of the engine. Refer to (PIL 33-03).
6. If necessary, put blocks against the two sides of
the wheels before you get below the machine.
Lift Arm Raised
If you raise the lift arm to get access for maintenance,
you must install the lift arm maintenance strut on the
lift arm.
Installing the Lift Arm Maintenance Strut
Figure 8. Stowage Radial Lift
C
C Stowage position

jcb 260T Specifications

General

Operating Weight	9, 774 lbs
Engine Power	55 kW
Rated Operating Capacity	2, 600 lbs
Tipping Load	7, 429 lbs
Lift Path	Vertical
Net Engine Power	55 kW
Width	69.1 in
Max. Travel Speed	12.6 km/h
High Flow	90 L/min
Length with Bucket	3, 500 mm
Bucket Capacity	0.48 m³
Max Travel Speed	12.6 km/h
Breakout Force	38.6 kN
Length	3, 500 mm
Height	2, 200 mm
Pump Flow	60 L/min
