jcb 270T - Page 35

01 - Machine
09 - Description
15 - Service Point Locations
01 - 29 9813/7450-2 01 - 29
Tracked Machines

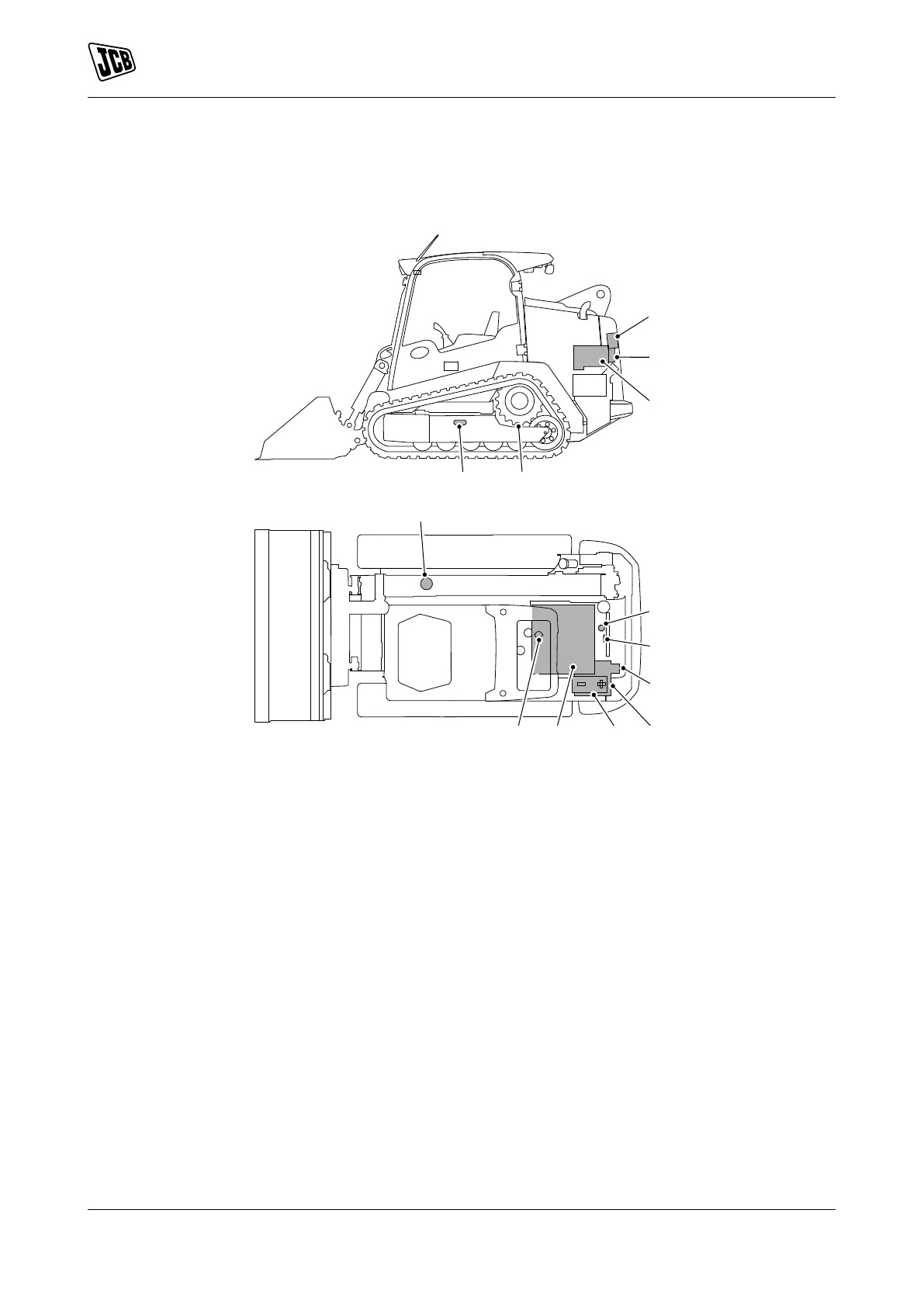

Figure 13.
A
D
E
JK
H
G
F
L
B
C
M
N
A Coolant expansion bottle B Fuel sedimenter
C Air intake D Engine oil filler cap
E Engine oil dipstick F Hydraulic oil level indicator, Hydraulic oil filler
cap
G Battery isolator H Battery
J Radiator K Radiator cap
L Window washer fluid bottle M Track tensioner
N Track Sprocket
