01 - Machine
09 - Description
15 - Service Point Locations
01 - 30 9813/7450-2 01 - 30
Service Label
The service label is located inside the rear door. It
is a visual representation of the daily, weekly and
six monthly service checks. The label serves as a
reminder of these service checks and their intervals.
Use the label and the service schedule in this manual
to perform the service checks on time.
The 1,000h and 2,000h checks which are
represented by the outer track are described in this
manual only.
The label shows a picture of the machine. On the
machine are marked the positions of the service
items to check. Surrounding the machine are four
'tracks'. The tracks represent the 10h, 50h, 500h,
1,000h and 2,000h checks. The symbols of each
check are marked on the corresponding track
depending on their frequency.
The number next to each symbol cross refers to the
service schedule in this manual.
The number of grease points on each machine model
is indicated at the bottom of the label.

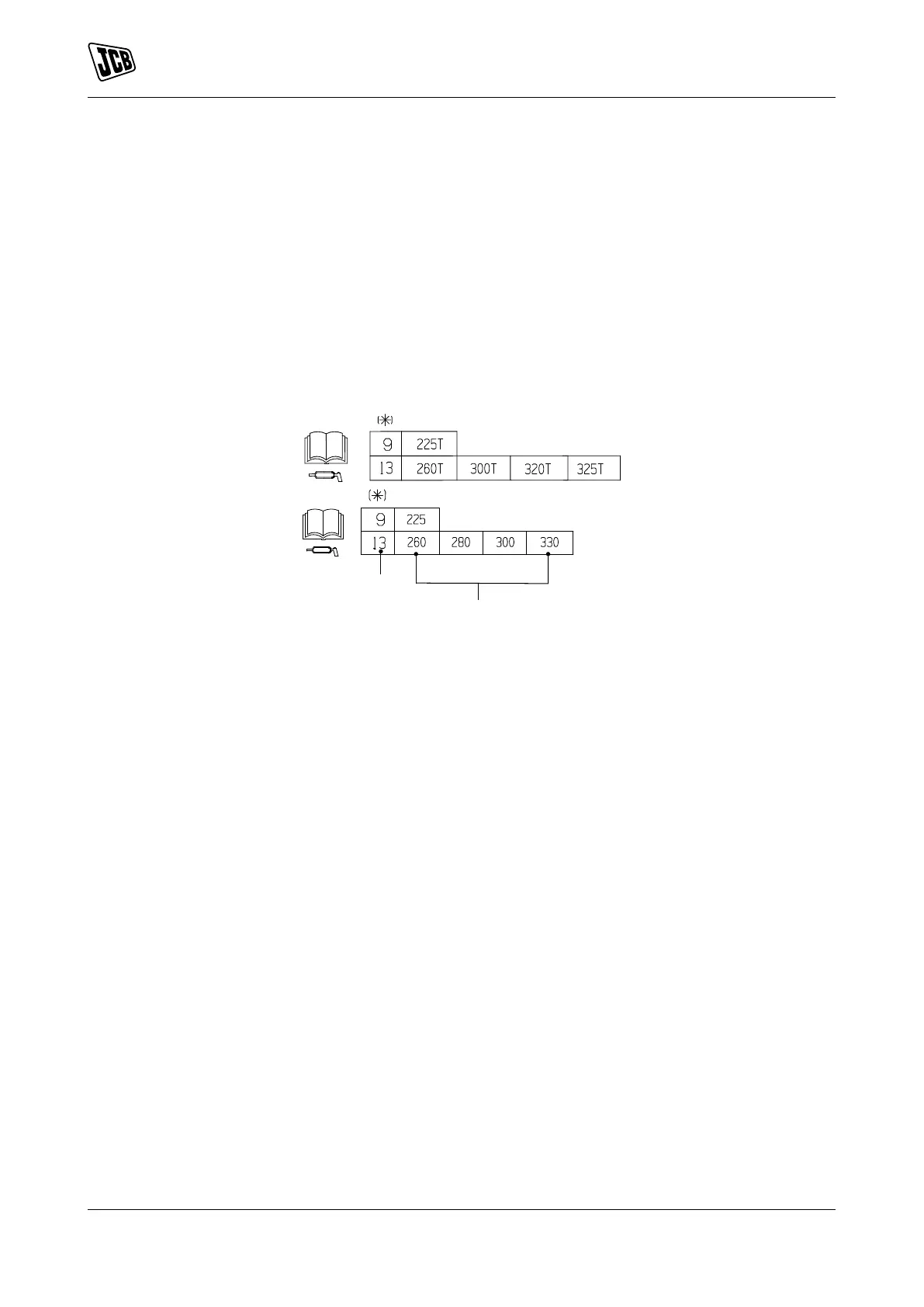

Figure 14.
A Grease points B Machine model
