15 - Engine
09 - Bedplate
00 - General
15 - 52 9813/7400-1 15 - 52
Remove
1. Remove the bedplate peripheral bolts.
2. Progressively remove the main bearing bolts in
reverse order starting at bolt 10. The bolts MUST
NOT be re-used. Discard the bolts.
3. Install the four temporary lifting bolts. Carefully
separate the bedplate from the crankcase. Use
suitable lifting equipment (if the bedplate is lifted
manually, two people will be required). DO NOT
use a lever to separate the bedplate.
4. Remove and discard the O-ring.
5. Carefully remove the upper bearing shells from
the bedplate, remove the bedplate.

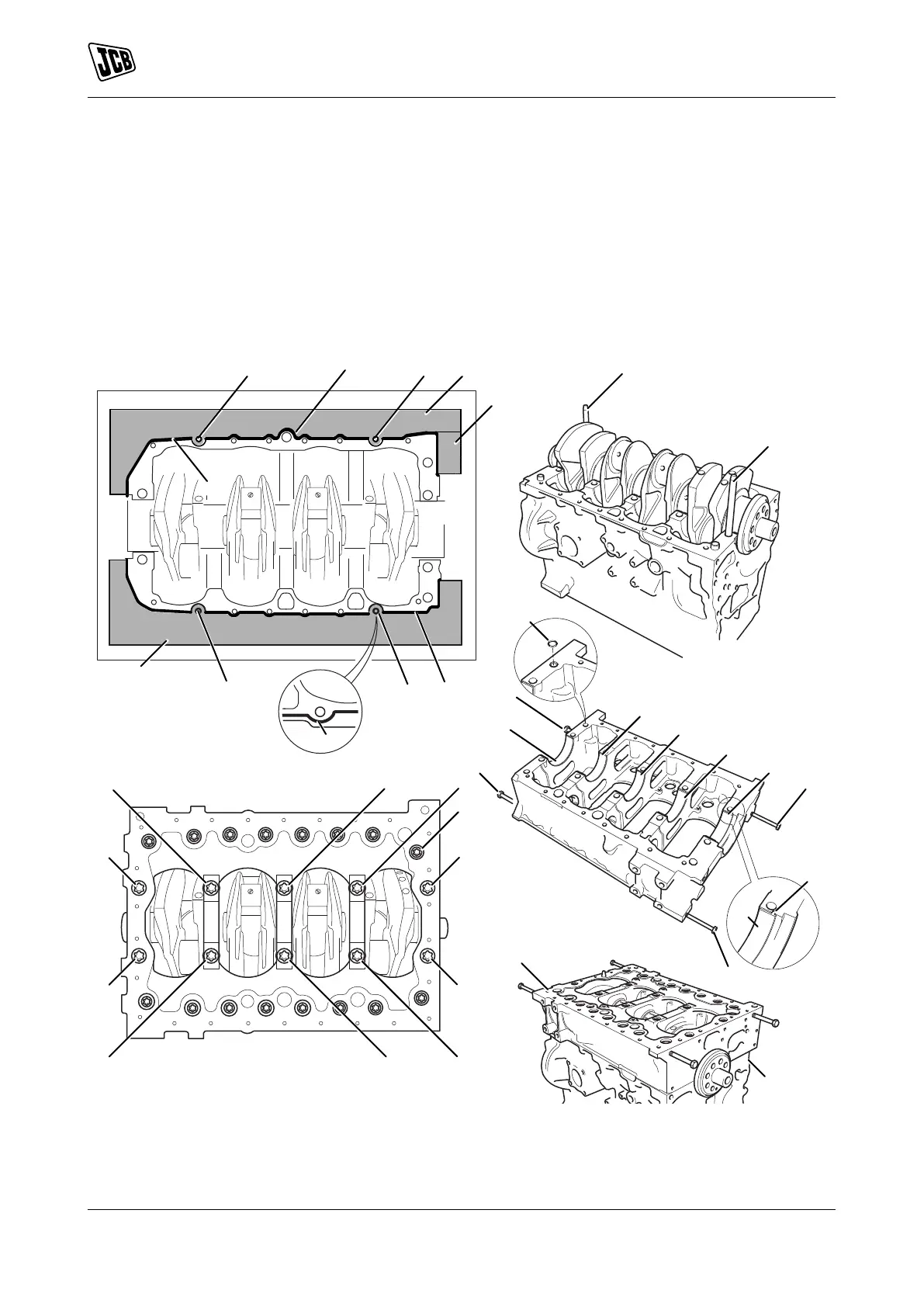

Figure 118.
1-10 Main bearing bolts 11 Bedplate peripheral bolts (x16)
12 Bedplate 13 Crankcase
18 Lower bearing shells (x5) A Left side template
B Right side template T3 Angle Gauge (obtain locally)
