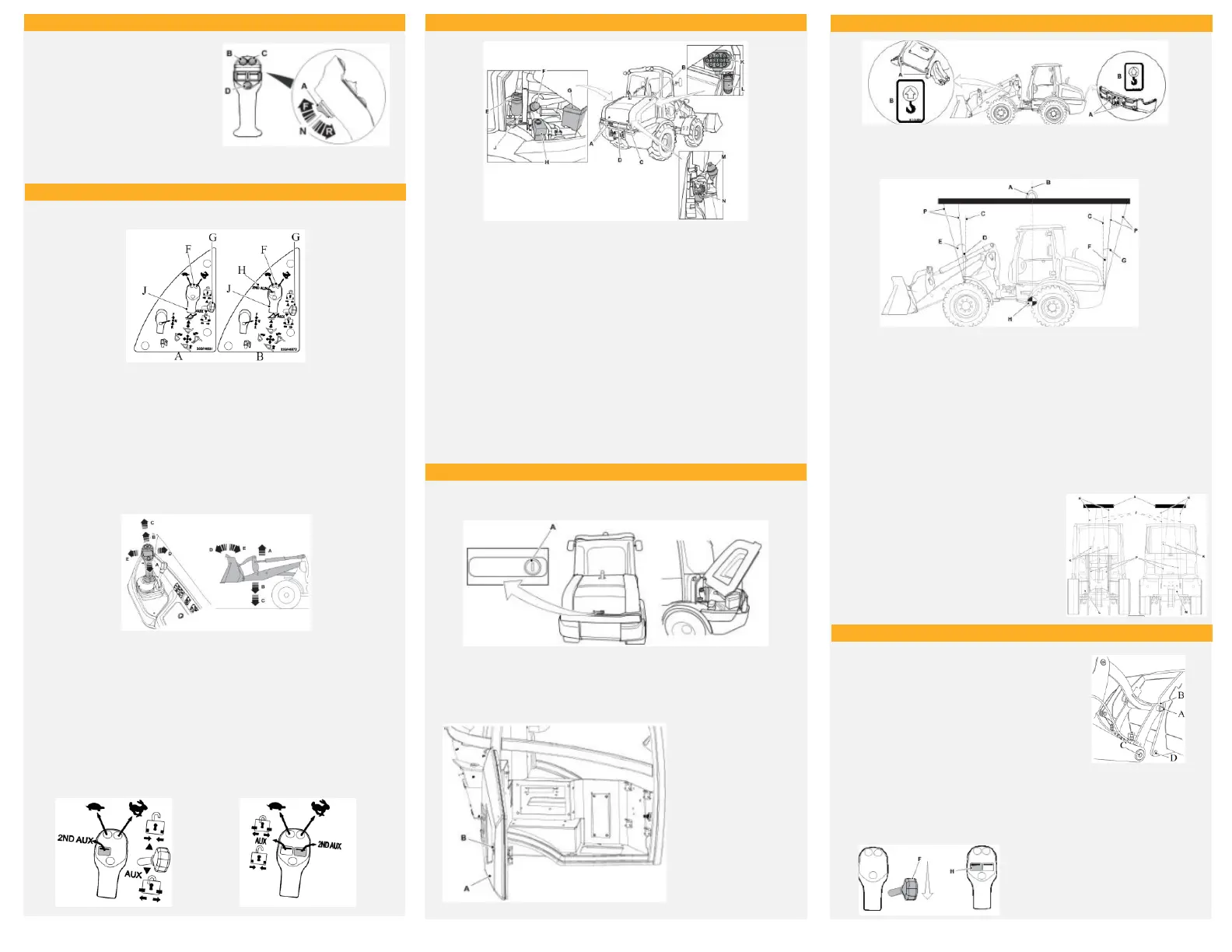

Service Points
Access Covers
Drive Controls
Lifting Procedures
Lift Arm Controls
A. Forward/reverse switch
B. Tortoise speed button
C. Hare speed button
D. Differential lock button
E. Forward drive
F. Reverse drive
G. Neutral drive
Manual Controls
A. Single spool control configuration
B. Twin spool control configuration
F. Tortoise/hare speed range switches
G. First auxiliary spool control
H. Second auxiliary spool control (if installed)
J. Control lever
Lift Arm Control Lever
A. Raise
B. Lower
C. Float
D. Tilt shovel forward (dump)
E. Tilt shovel backward (crowd)
A. Battery isolator (position depends on specification)
B. Coolant expansion bottle
C. Engine oil filler point
D. Engine oil level dipstick
E. Diesel fuel filler point
F. Hydraulic tank filler point
G. Battery
H. Washer bottle
J. Hydraulic oil fluid level indicator
K. Air filter
L. Fuel water separator/filter
M. Engine oil filter
N. Fuel filter
Auxiliary Circuit Controls
A. Sling points
B. Instructional label
A. H beam lifting spreader
B. Center of Gravity
C. Machine lifting point
D. Lifting chain 5° Minimum angle
E. Lifting Chain 15° Maximum angle
F. Lifting chain 5° Minimum angle
G. Lifting Chain 15° Maximum angle
H. Centre of Gravity
A. H beam lifting spreader
J. 0° angle maximum (not shown)
K. 5° Maximum angle
L. Front of machine
M. Rear of machine
N. Perpendicular line – lifting point
P. Lifting chain
Engine Compartment Cover
A. Lock
Cab Heater Door
A. Access panel
B. Lock
Adding Attachments - Quickhitch
A. Pivot-shaft
B. Hook
C. Locking pin
D. Hole
A. Auxiliary lever
B. Auxiliary switch
1. Park machine on level ground.
2. Lower quickhitch and tilt forward.
3. Move machine forward until pivot-
shaft is below the hooks.
4. Lift quickhitch until pivot shaft engages
with hooks.
5. Tilt quickhitch backwards to align the
locking pins with hole in attachment.
6. Push and hold quickhitch isolator
switch until buzzer sounds.
