Operator Station
17 9831/4000-2 17
Operator Station

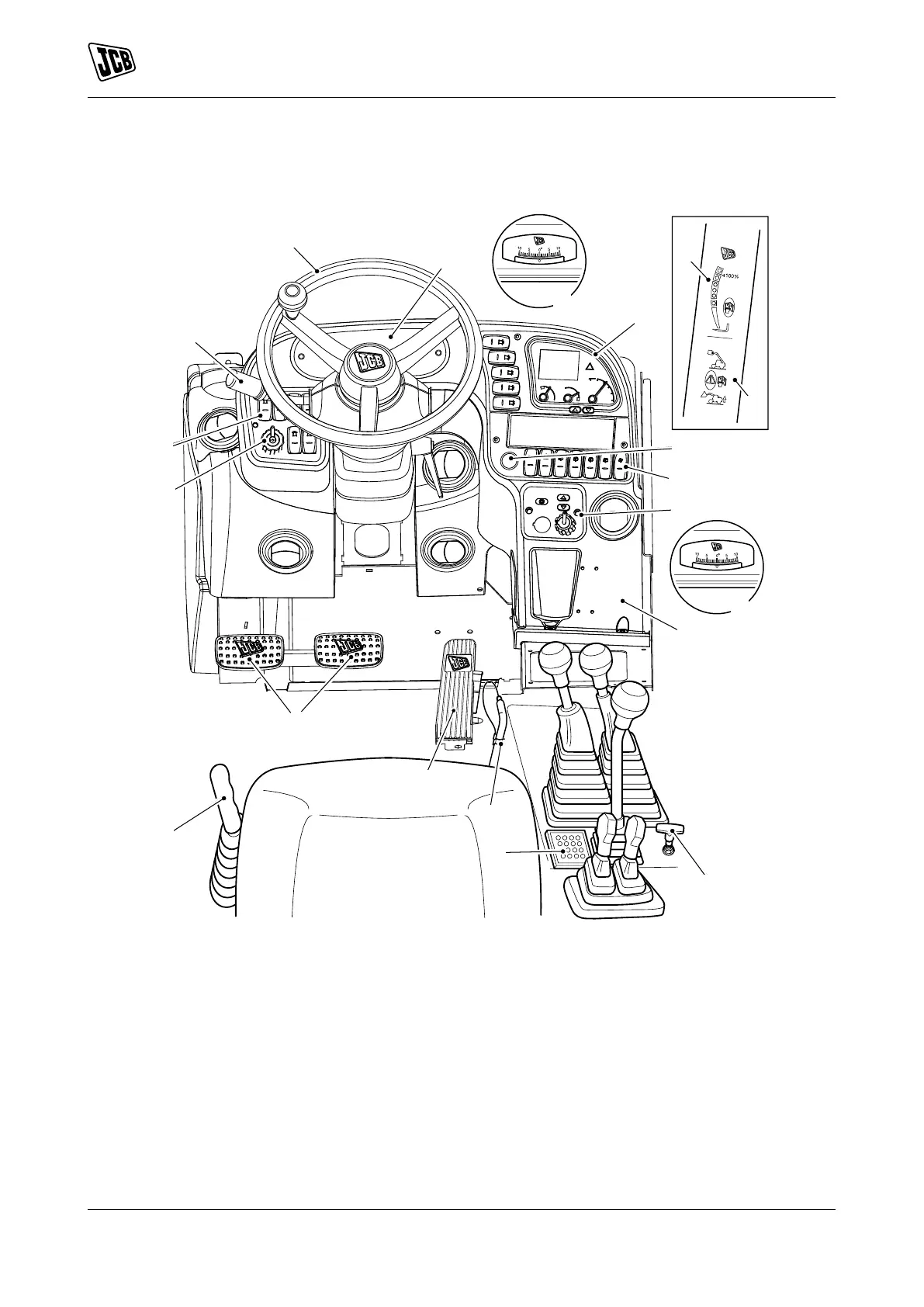

Component Locations
Figure 11.
T
S
P
P
A
B
C
D
E
F
D
G
H
J
M
N
R
A
B
C
D
E
F
G
H
J
M
N
P
R
S
T
P
R
U
L
K
A Steering wheelRefer to: Steering Wheel
(Page 64).
B Transmission Lever and Gear SelectionRefer to:
Steering Wheel (Page 64).
C Console switchesRefer to: Introduction
(Page 1).
D Steer mode selectorRefer to: Steer Mode
Control (Page 68).
E Service brake pedalRefer to: Service Brake
Pedal (Page 64).
F Park brake leverRefer to: Park Brake
(Page 65).
G Control locks H Immobiliser
J Hydraulic tow hitch K Load charts
L HVAC (Heating Ventilation Air Conditioning)
Refer to: Heating, Ventilating and Air-
Conditioning (HVAC) (Page 143).
M Console switchesRefer to: Console Switches
(Page 21).
N Ignition switchRefer to: Ignition Switch
(Page 18).
P Instrument panelRefer to: Instrument Panel
(Page 69).
R Lateral Inclinometer S LLMI (Longitudinal Load Moment Indicator)
T Load control system U Longitudinal Inclinometer
