03 - Attachments, Couplings and Load Handling
27 - Bucket
90 - Teeth
03 - 15 9813/3450-2 03 - 15
Remove and Install
Standard Teeth
Remove
1. Make the machine safe.
Refer to: PIL 01-03.
2. Put the bucket flat on level ground.
3. Stop the engine.
4. Remove the ignition key.
5. Discharge the hydraulic pressure.
Refer to: PIL 30-00-00.
6. Remove the nut and bolt.
7. Remove the relevant tooth.

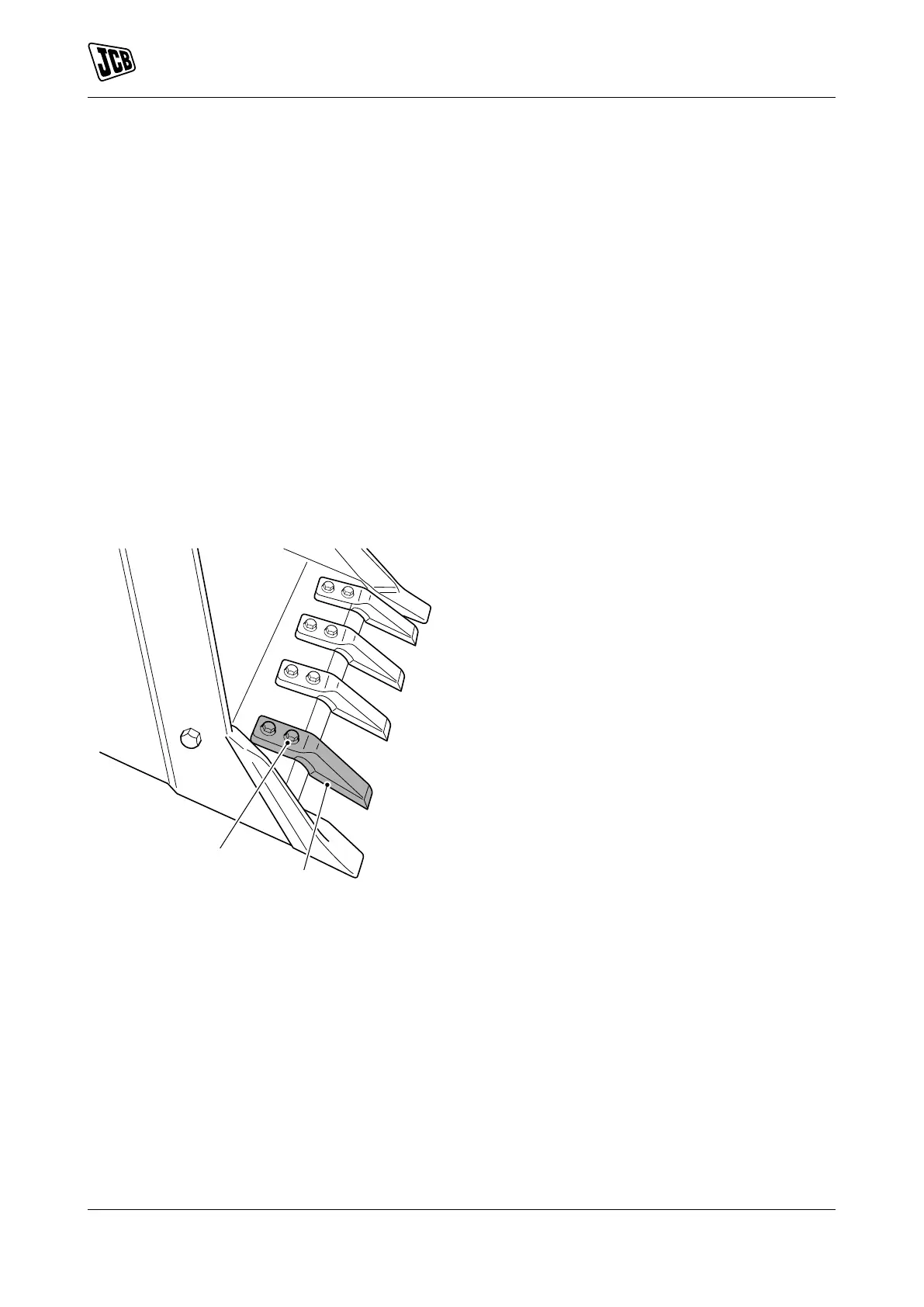

Figure 9.
A Tooth
B Nut and bolt
Install
1. Put the tooth in position.
2. Install the nuts and bolts to secure the tooth in
position.
