jcb JC160 User Manual

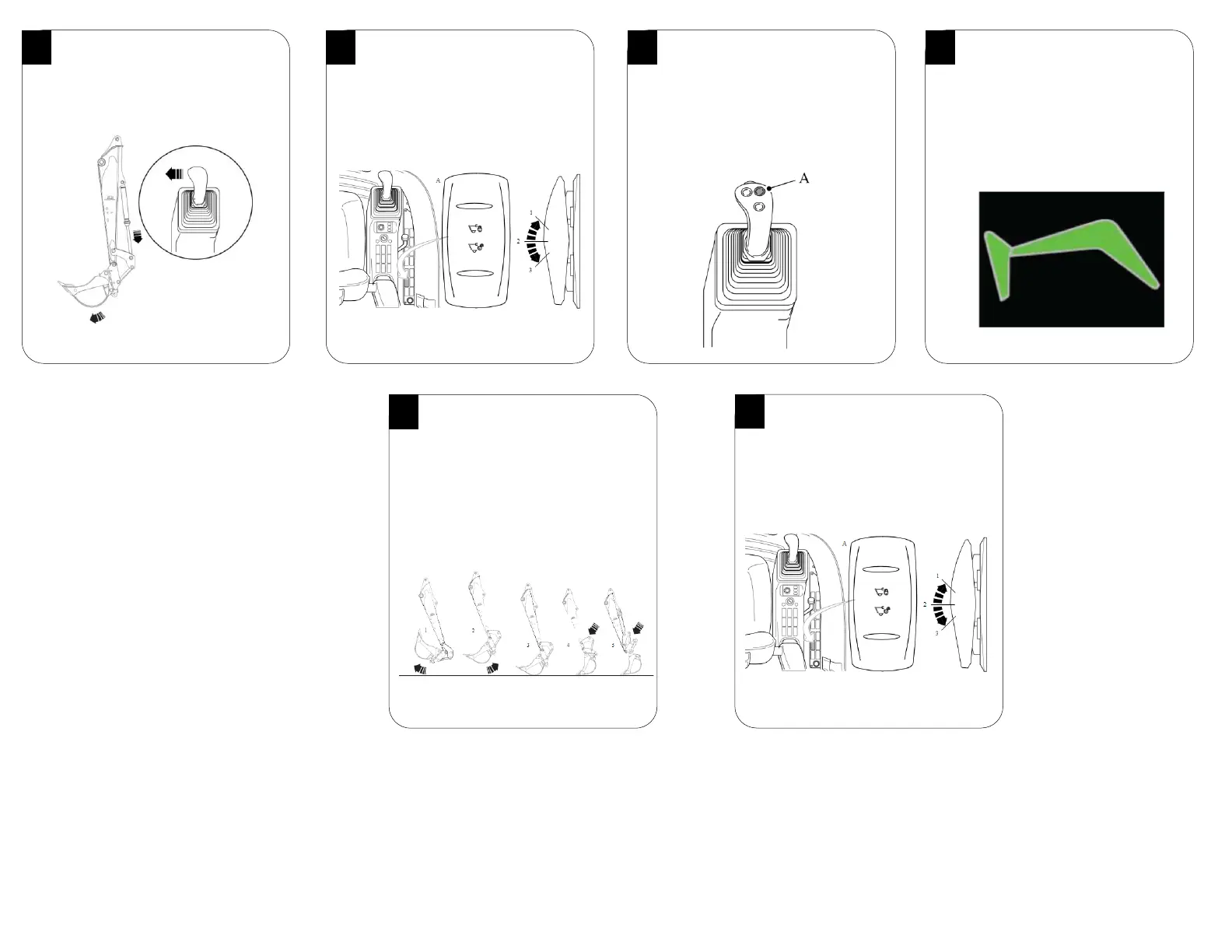

Crowd Attachment
1
To start Quickhitch unlock
process, ensure the attachment
is crowded
Activate Quickhitch
2
Move Quickhitch switch to
position 3. Switch will
illuminate red and buzzer will
sound constantly
Confirm Quickhitch
3
Press Quickhitch button on the
right joystick to confirm
Quickhitch mode. The buzzer
will sound intermittently, and
the boom LED will flash
Position Boom and Dipper
4
Position the boom and dipper
appropriately so the color
display indicates the green
boom and dipper symbols
Grabbing Attachment
5
Use front jaws to hook the pin.
Crowd the Quickhitch around
with the bucket ram until
attachment fully crowded and
pin is resting on Quickhitch
body
Lock Quickhitch
6
Move Quickhitch switch to
position 1. The symbol shall
flash until it has locked. Check
pin before use.
