5 - 27
Section C
Electrics
9803/6400
Section C
5 - 27
Issue 1
Pump Control
Display Monitor
(continued)

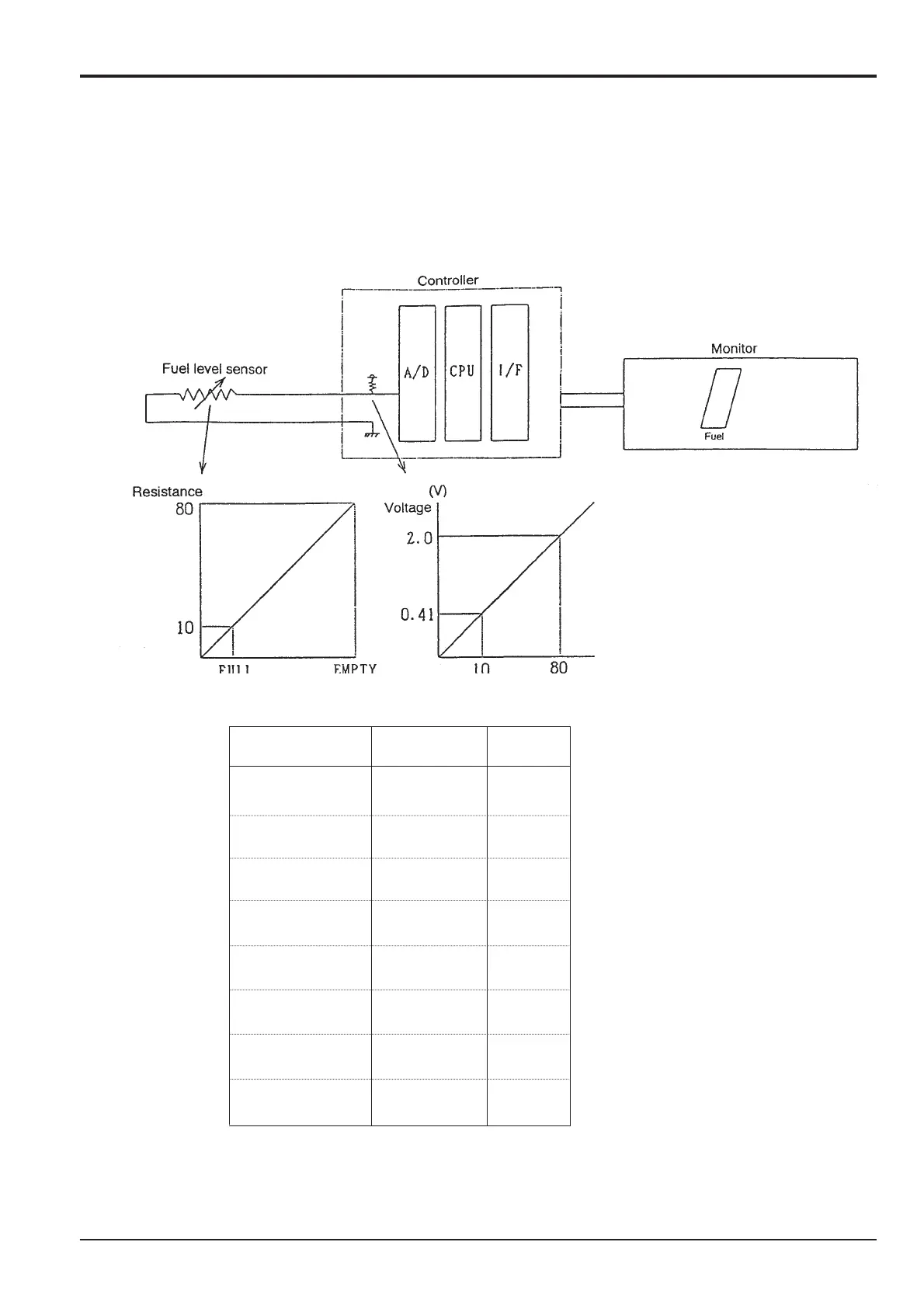

Fuel Remaining
Circuit Diagram
FUEL REMAINING
RESISTANCE
(litres)
(OHM)
MONITOR
284~
13~10
8
243~284
21~13
7
200~243
27~21
6
158~200
34~27
5
115~158
44~34
4
72~115
59~44
3
39~72
78~59
2
39
80~78
1
(1 hour left -
Refuel)
160
162
