82 - 2
Dismantling JS200/JS240 (continued)

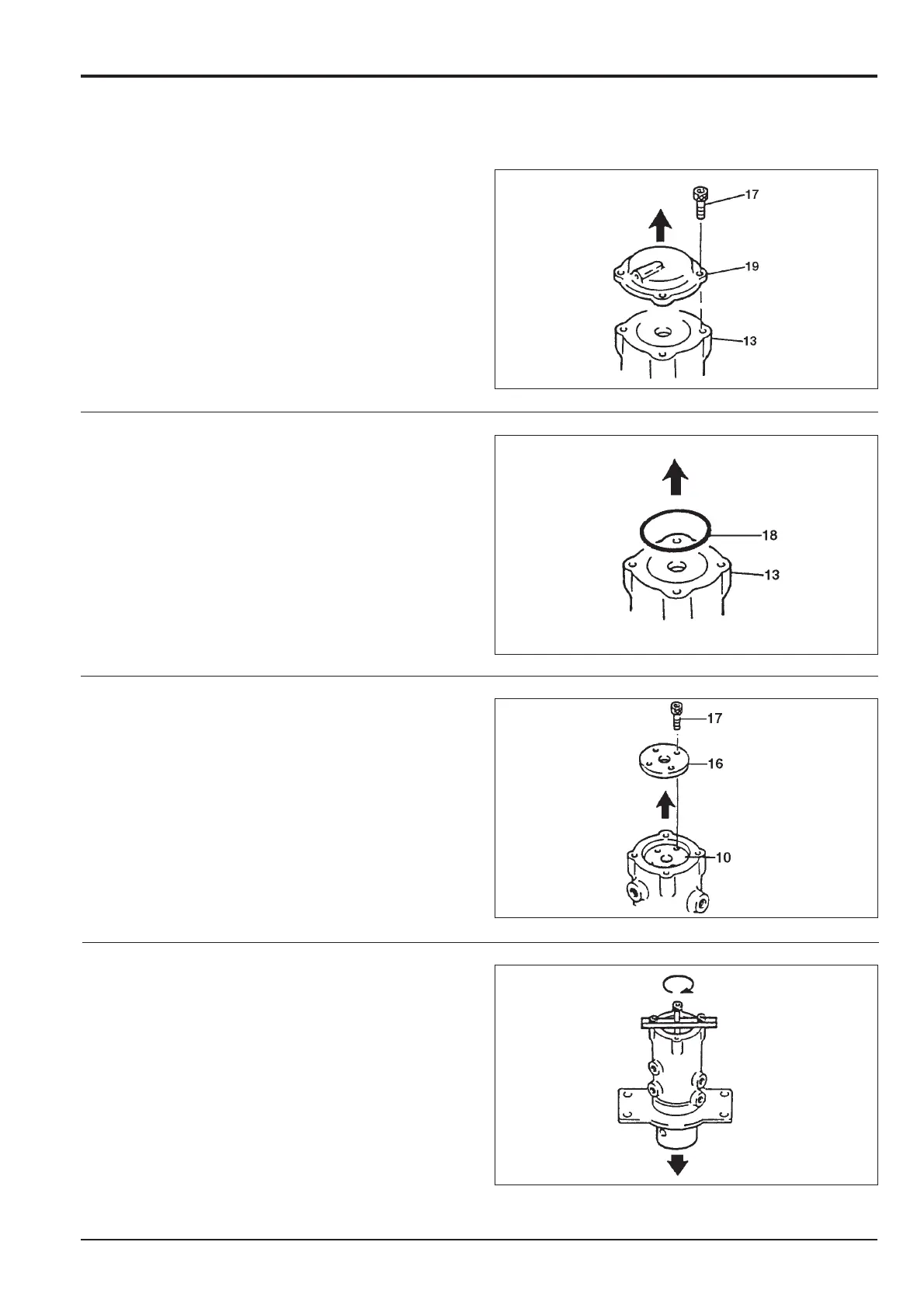

5. Remove the cover 19 with the bolt 17.
6. Remove the 'O'-ring 18.
Do not reuse the 'O'-ring 18.
7. Remove the thrust plate 16 with the bolt 17.
8. Using a jig push off the axle 11 from the rotor 13.
Do not hit with a hammer.
Section E
Hydraulics
9803/6400
Section E
82 - 2
Issue 1
Rotary Coupling
