Section 1 - General Information
Service Tools
Tool Detail Reference Section F - Transmission
1 - 27
9803-6530
1 - 27
Tool Detail Reference Section F - Transmission
Note: Not all service tools are illustrated. Illustrations are
shown in tool number order.

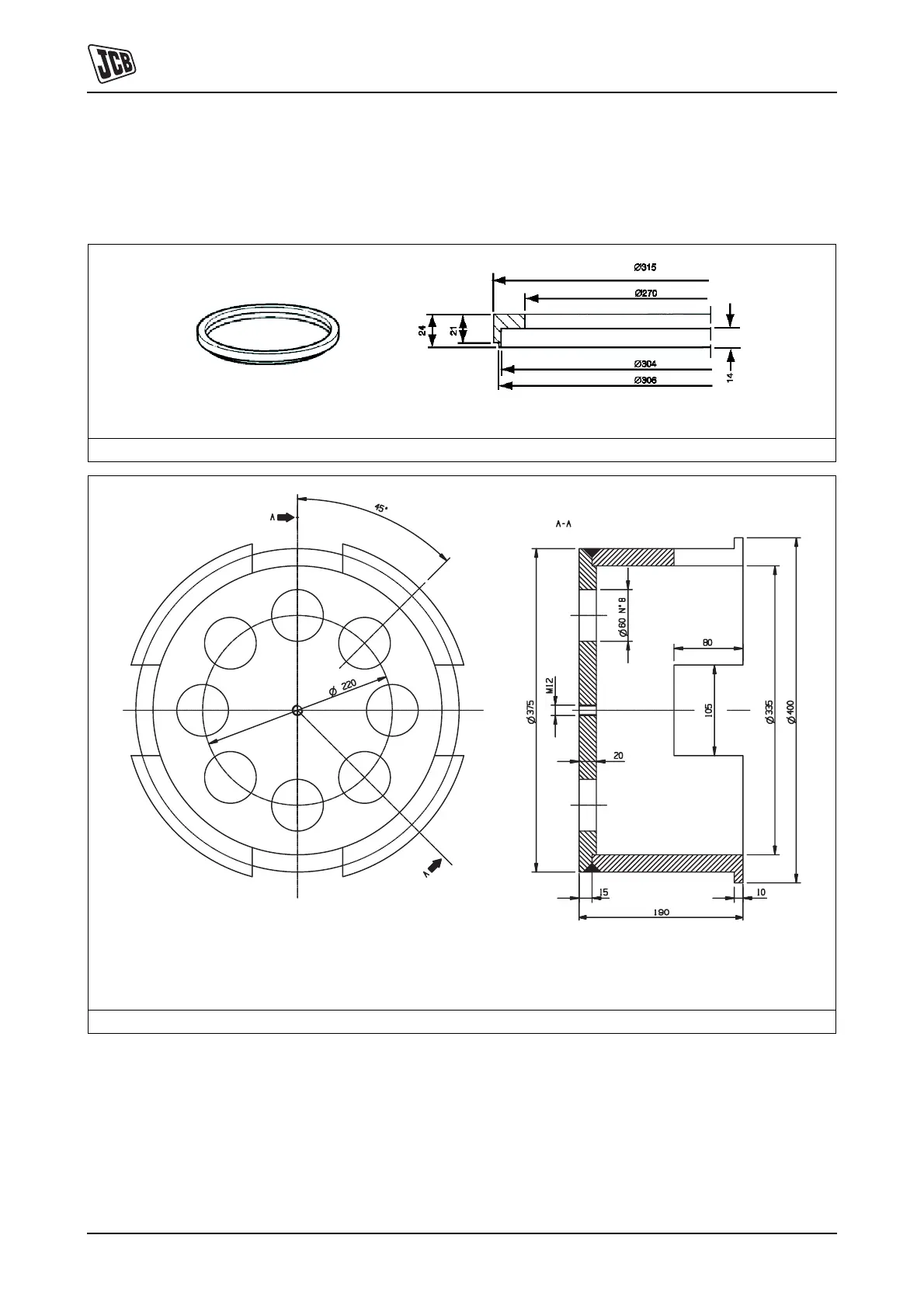

Fig 34. SST0037 Re-sealing Tool
Note: All dimensions are in mm.
Fig 35. Stopper
Note: for the assembly of Hydraulic motor on track gearbox.
A409010-C1
