1. Use a press to install the new bush and then
replace the seal.

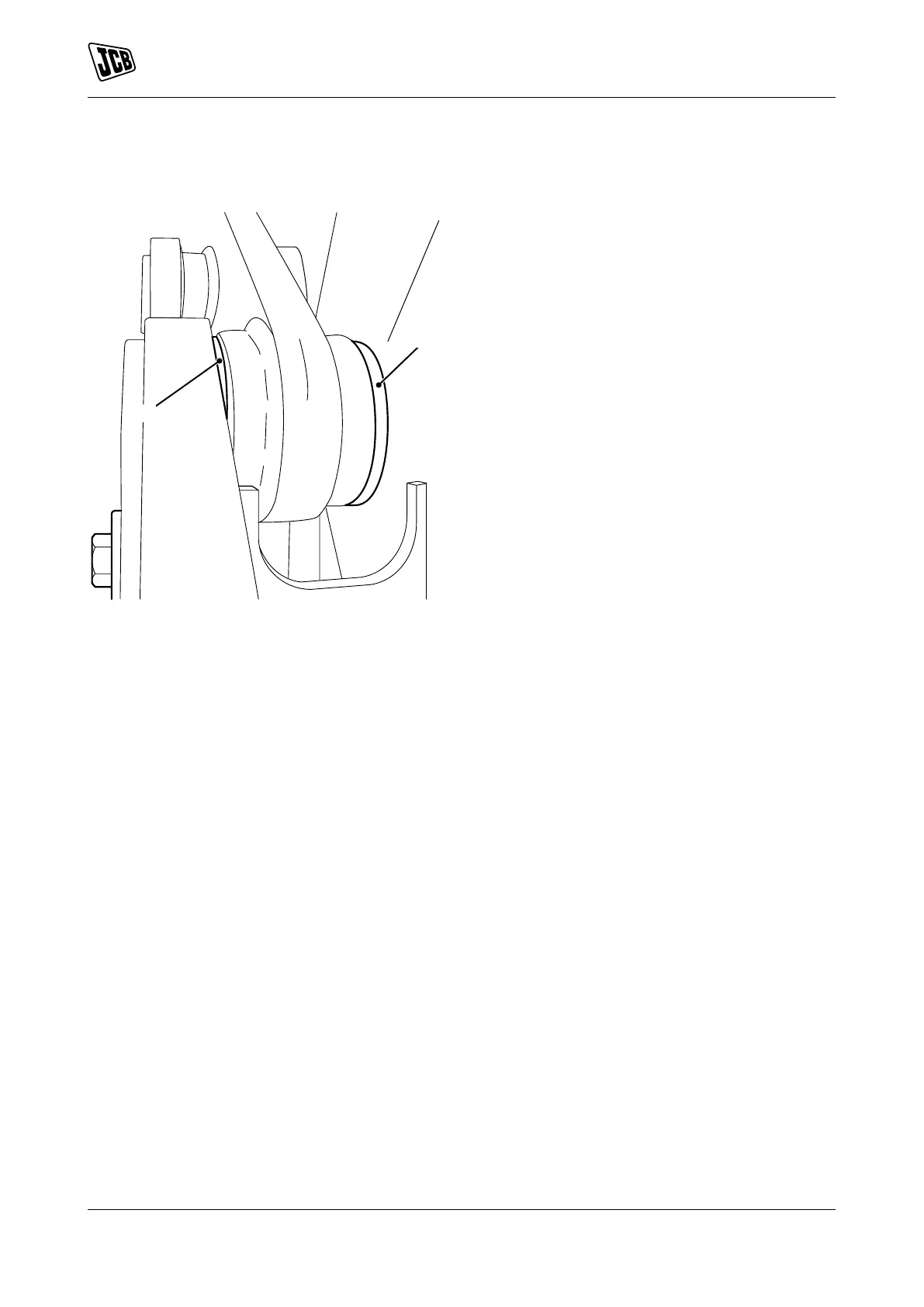

Figure 11.
H
H
H Shims
2. Install the spacer shims as necessary.
