jcb VM117 - Page 30

06 - Body and Framework
06 - Access Cover
39 - Cab/Canopy
06 - 8 9813/3300-1 06 - 8
39 - Cab/Canopy
Introduction
Cab/Canopy
Open
1. Make the machine safe.
2. Stop the engine and remove the ignition key.
3. Use the ignition key to unlock the cover.
4. Use the handle to release the latch. Open the
cover.

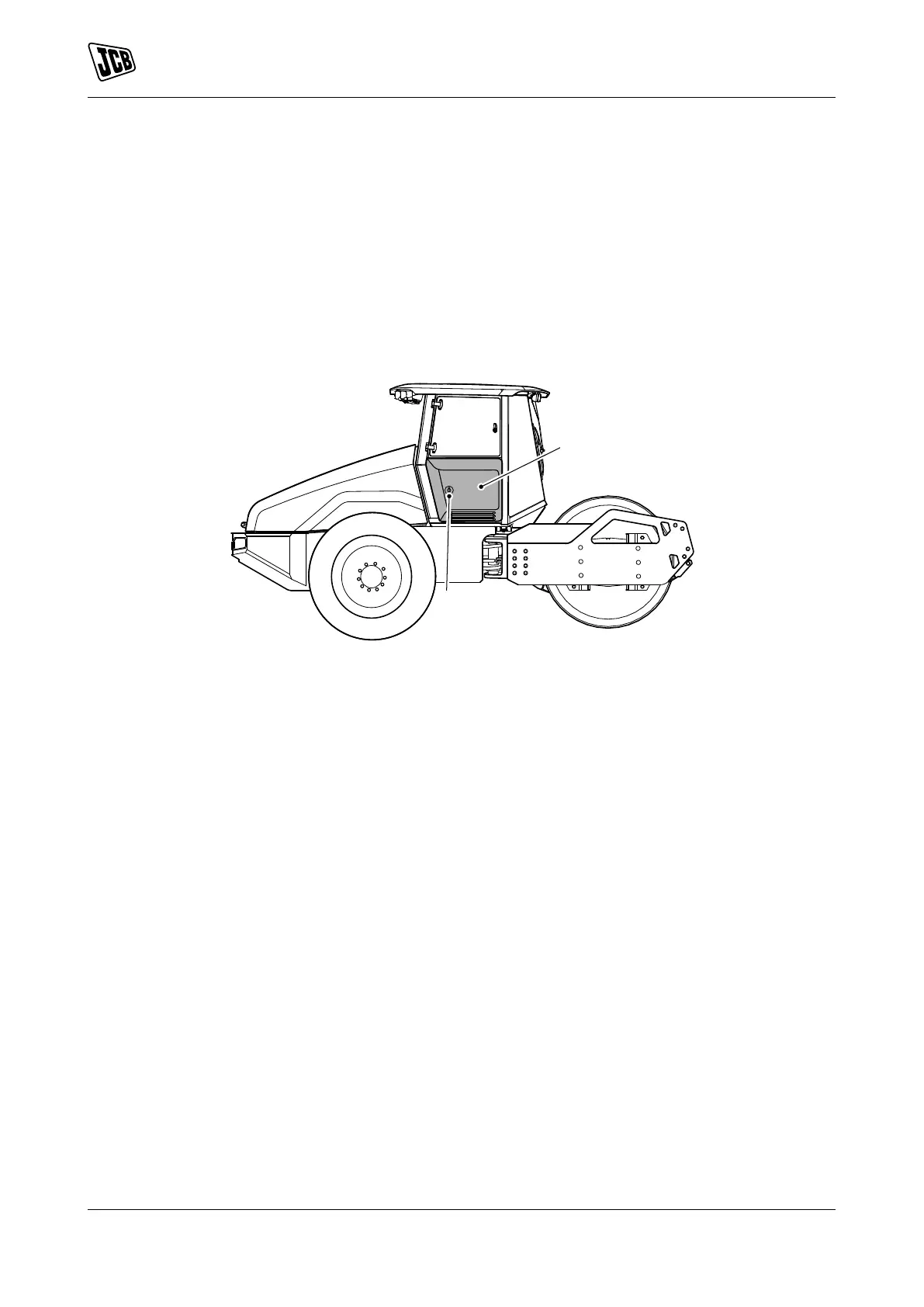

Figure 6.
B
A
A Cover B Latch
