GAS SYSTEM - VERSION US

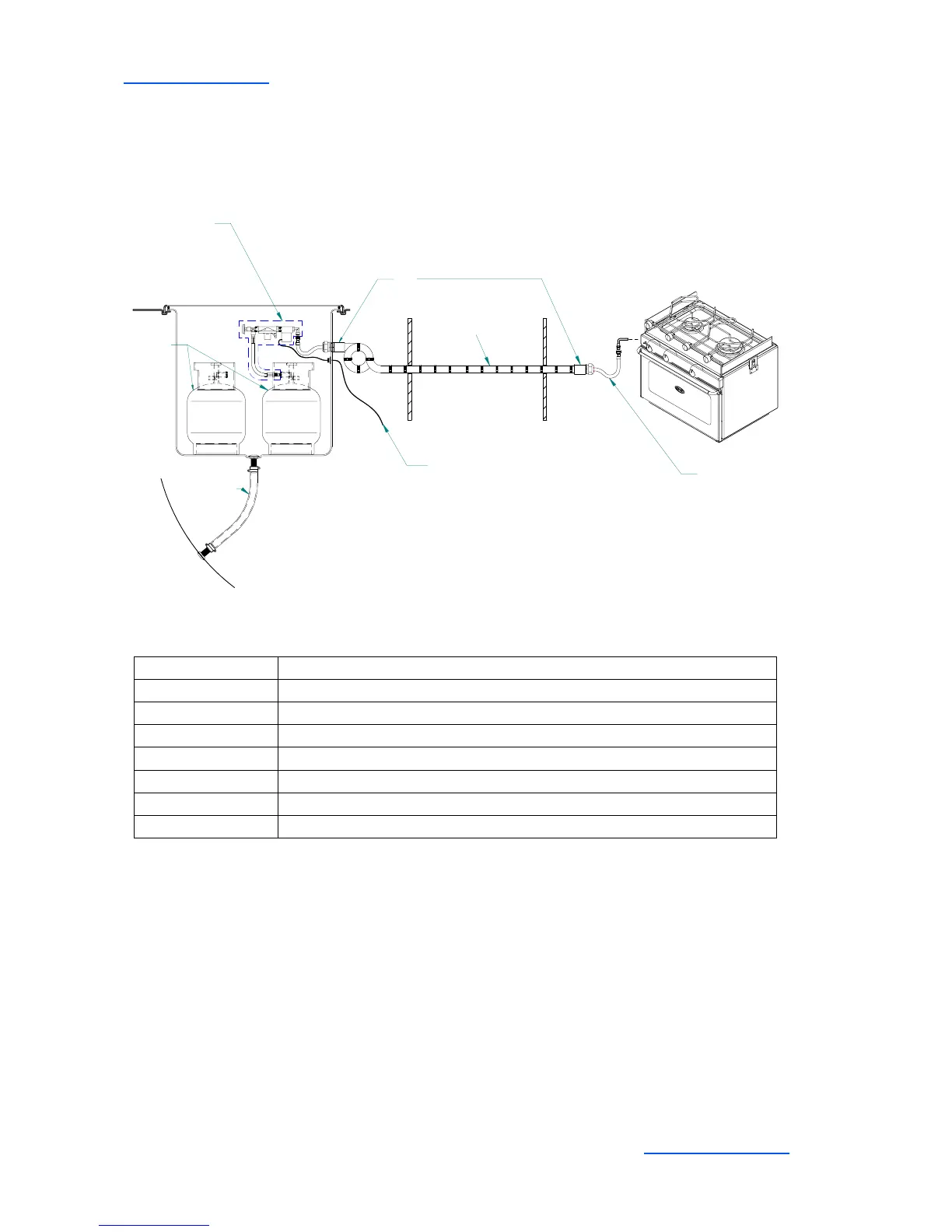

Schematic diagram
REF Designation
1 Regulator valve 24V
2 Gas cylinder
3Drain
4 Stuffing box
5 PVC girdled sleeve
6 Electromagnetic valve for gas 24V
7 Pipe Propane Plastic
