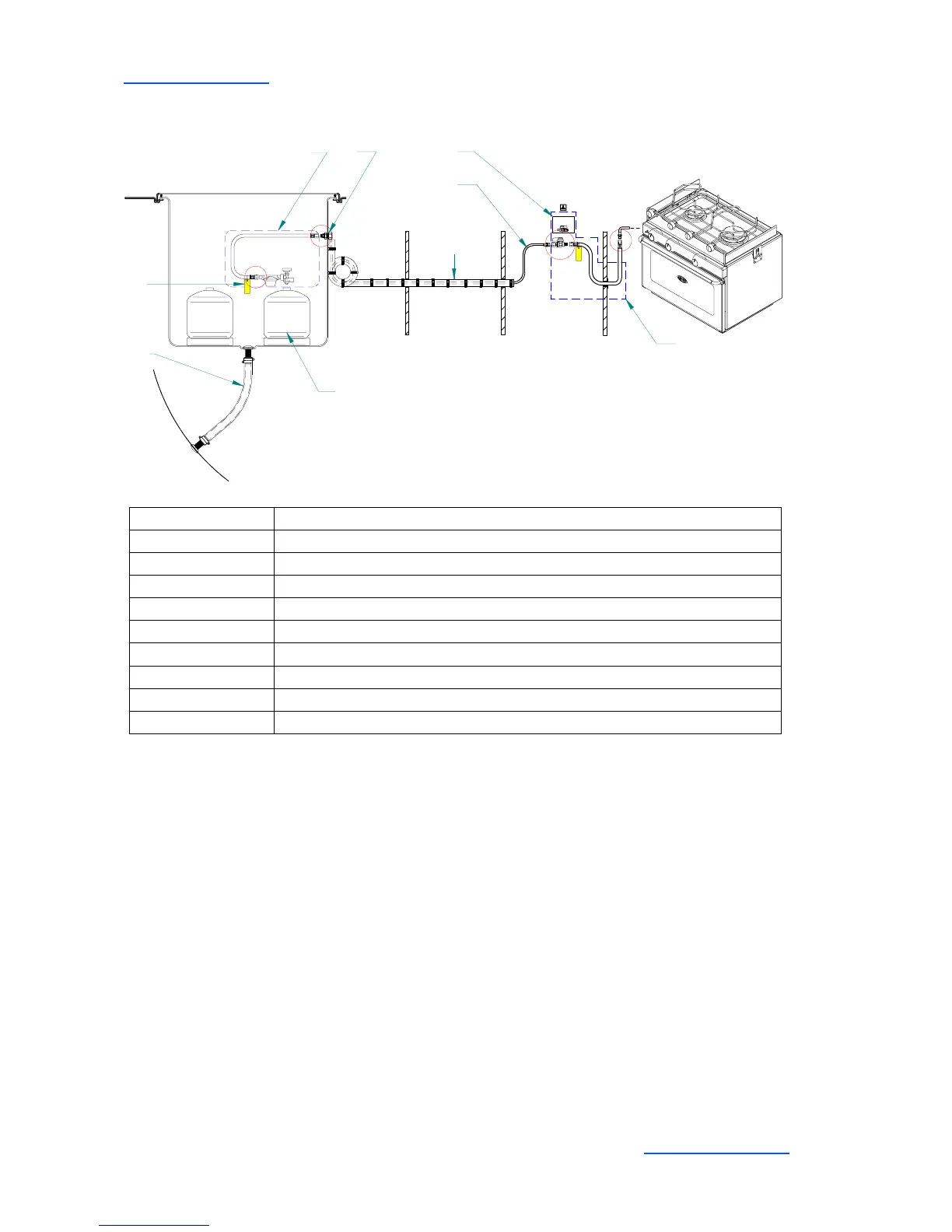

SCHEMA GAS - VERSION EUROPE
Never obstruct the fast access to the components of the gas system. Keep the taps of the
empty cylinders turned off and the cylinders disconnected.
Keep the protection, lids, covers and taps in their places.
Don't use the gas cylinder storage place to store other equipment. Only use the proper
locker to store the gas cylinders.
Regularly check and replace the rubber tubings that link the cylinder to one end of the
circuit and the stove to the other one, depending on the norms and regulations in force in
your country.
Pay particular attention to keep in good condition the screw thread of the cylinder on which
the regulator is. Check the condition of the regulator every year and change it if necessary.
Use regulators identical to the ones that are fitted.
Have the repairs carried out by someone skilled.
REF Designation
1 Regulator valve
2 Gas cylinder
3Drain
4 Connection kit gas bottle
5 Rubber washers
6Pictogram
7 Connection kit gas copper
8 PVC girdled sleeve
9 Gas appliance connection kit
gaz
GAZ
8
3
2
4
1
6
9
7
5
