FUSES

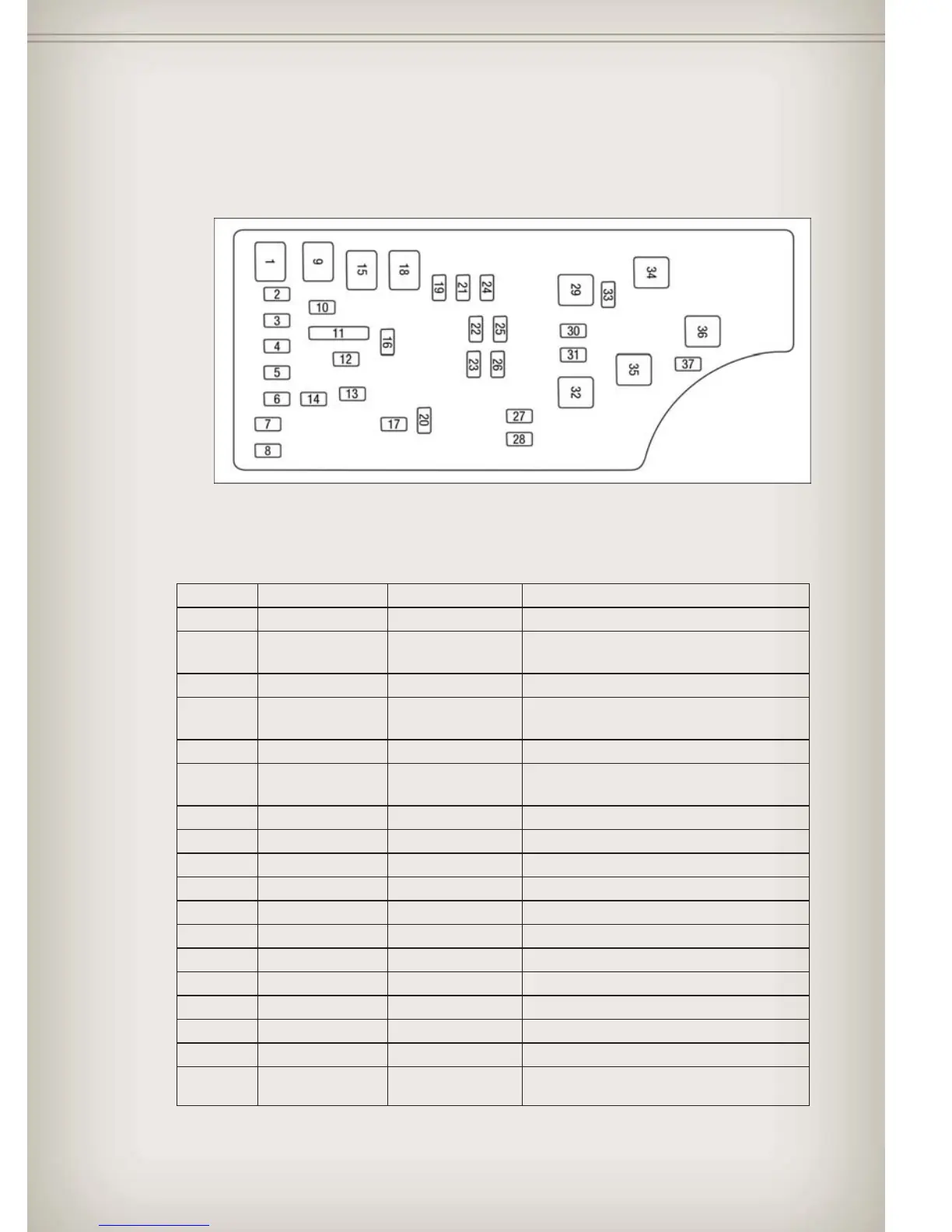

Integrated Power Module (fuses)
• The Integrated Power Module (fuses) is located in the engine compartment near
the air cleaner assembly. This center contains cartridge fuses and mini-fuses.
Cavity Cartridge Fuse Mini-Fuse Description
1 Empty Empty
2 15 Amp Lt Blue AWD/4WD Control Module –
If Equipped
3 10 Amp Red Rear Center Brake Light Switch
4 10 Amp Red Ignition Switch/Occupant
Classification Module
5 20 Amp Yellow Trailer Tow – If Equipped
6 10 Amp Red Power Mirror/Steering Control
Satellite Radio/Hands-Free Phone
7 30 Amp Green Ignition Off Draw
8 30 Amp Green Ignition Off Draw
9 40 Amp Green Power Seats
10 20 Amp Yellow Power Locks/Interior Lighting
11 15 Amp Lt Blue Power Outlet
12 20 Amp Yellow 115V AC Inverter – If Equipped
13 20 Amp Yellow Cigar Lighter
14 10 Amp Red Instrument Cluster
15 40 Amp Green Radiator Fan
16 15 Amp Lt Blue
Dome Lamp/Sunroof/Rear Wiper Motor
17 10 Amp Red Wireless Control Module
18 40 Amp Green Auto Shutdown Relay
MAINTAINING YOUR VEHICLE
95
