6. Reinstall the access panels making sure they
are locked in correctly.
7. Finally close the tailgate.
3rd Stop Lamp
The CHMSL is LED. For their replacement, see
your authorized dealer.
License Plate Lights
The License Plate light is LED. For their replace-
ment, see your authorized dealer.
Replacing Interior Bulbs
Front Courtesy Light
To replace the bulbs proceed as follows:
1. Using a suitable tool remove the front cour-
tesy light assemby.
2. Release the retainer clips and bulb housing
as shown.
3. Replace the bulbs by pulling straight out of
bulb housing.
4. Insert the new bulbs, making sure that they
are properly locked.
5. Reassemble the bulb housing and courtesy
light housing making sure that they are prop-
erly locked.
6. Install the front courtesy light, making sure
that it is properly locked.
Dome Light Vanity Mirror
To replace the bulbs proceed as follows:
1. Lift the cover of the mirror and pull out the
mirror frame with the mirror light cover at-
tached.
2. Replace the bulb, releasing it from the side
contacts, and then insert the new bulb, mak-
ing sure that it is properly locked between the
contacts.

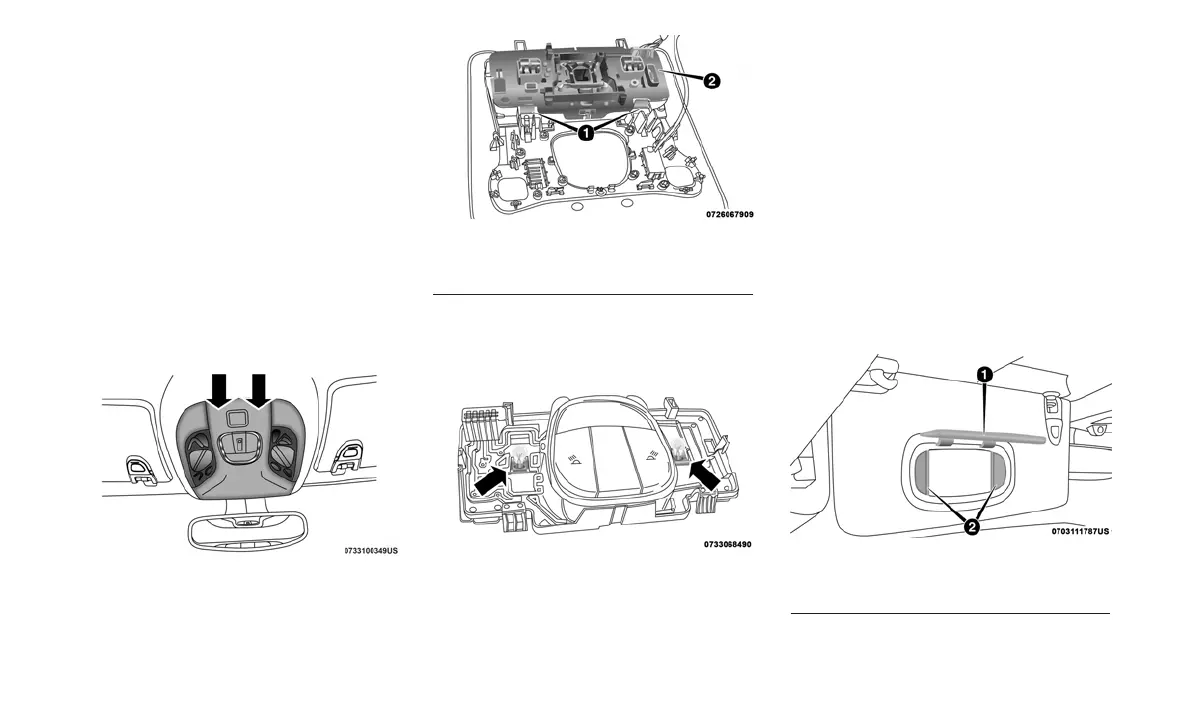

Front Courtesy Light
Front Courtesy Bulb Housing
1 — Retaining Clips
2 — Bulb Housing
Front Courtesy Bulb Housing
Visor
1 — Visor Mirror Cover
2 — Visor Mirror Light
222
